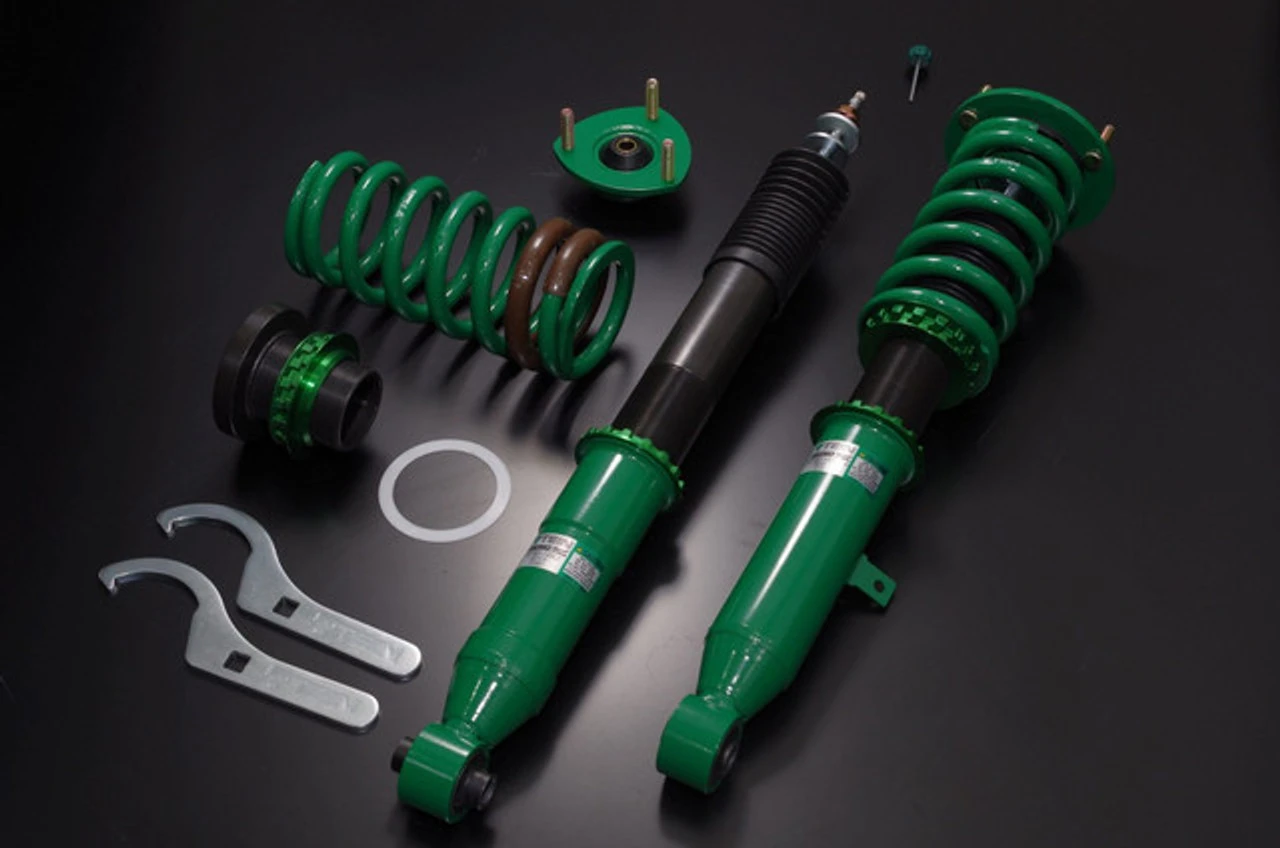

TEIN VSL12-C1AS3 Flex Z Coilover Kit for Toyota Alphard

The TEIN Flex Z Coilover Kit delivers professional-grade suspension performance at an affordable price point. Designed specifically for the 2002-2008 Toyota Alphard (NH10W/NH15W), this complete coilover system combines TEIN's renowned quality with advanced features for both street comfort and spirited driving.

Key Features:

• Twin-tube damper construction for comfortable street ride quality while maintaining sufficient stroke
• 16-level linear damping force adjustment system allows precise tuning of ride characteristics
• Full-length ride height adjustment from -25mm to -114mm front and -39mm to -81mm rear
• Spring rates of 5 kgf/mm front and 6.6 kgf/mm rear for balanced handling
• Complete kit includes exclusively designed upper mounts for easy installation
• Compatible with TEIN EDFC series for in-car electronic damping force control
• Made in Yokohama, Japan with TEIN's comprehensive manufacturing quality standards
• ZT-coated damper bodies with powder-coated lower brackets for corrosion resistance

The Flex Z platform inherits the features and quality of TEIN's Street Flex coilovers but utilizes a sealed, non-rebuildable design that reduces cost while maintaining exceptional performance. The full-length adjustment system allows ride height changes with minimal impact on ride quality or suspension stroke. Each kit is test-fitted and road-tested to ensure proper fitment and optimal balance between comfort and performance.

Installation Note: Rear OE dust boots need to be modified during installation.
