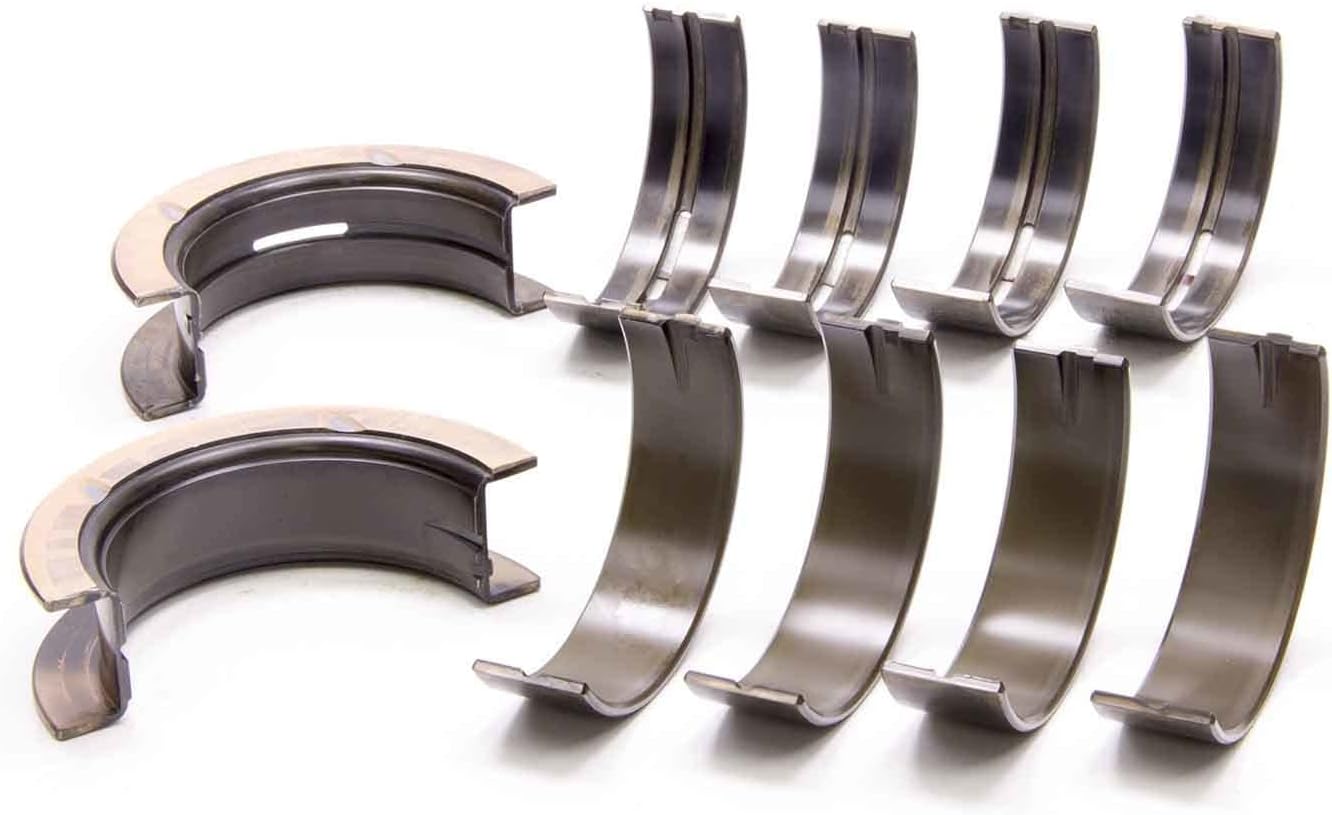

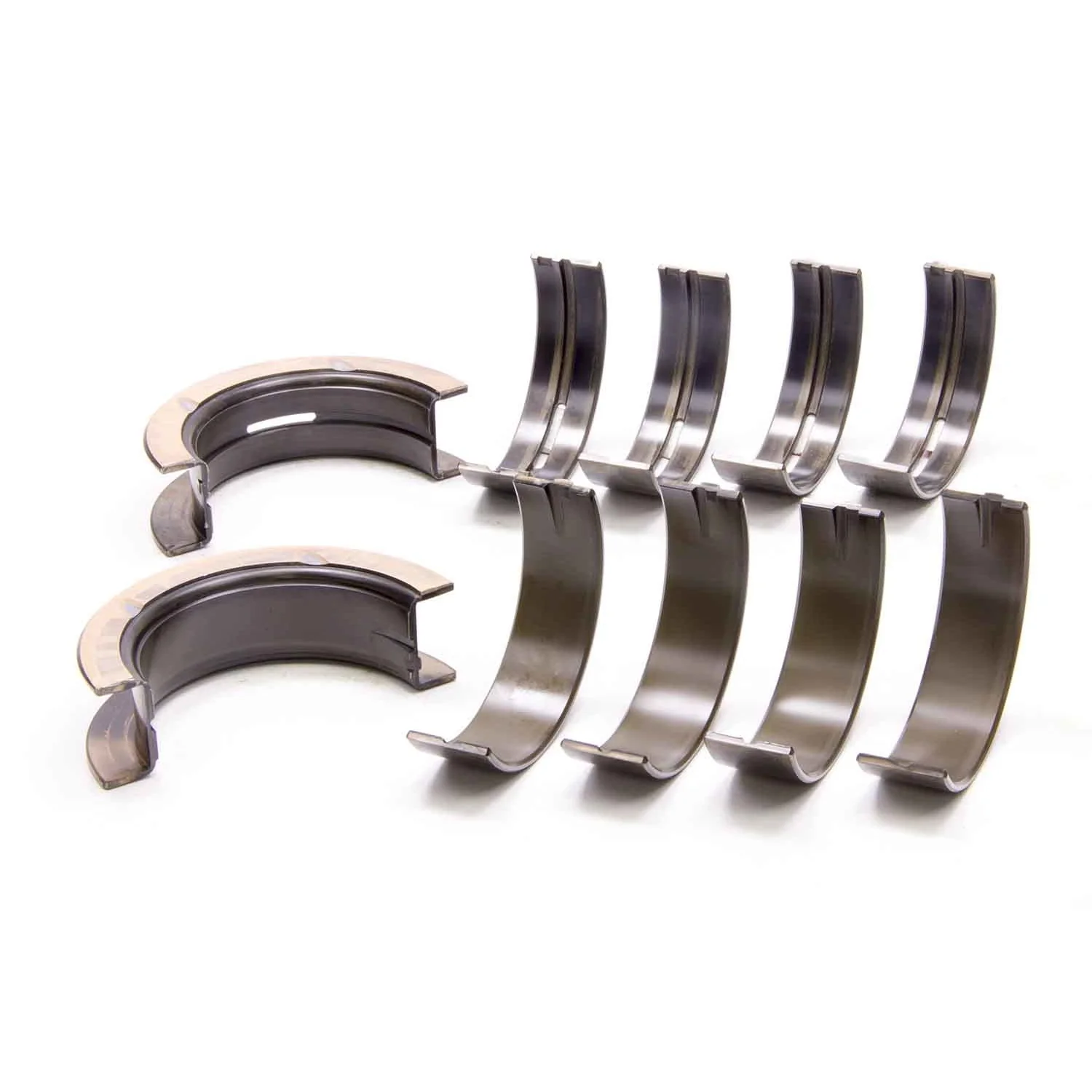

ACL Bearings 5M1010H-STD H-Series Race Main Bearing Set Ford 351 Cleveland Standard

Manufacturer

Part Number

5M1010H-STD
Black Friday Price

$111.50

Estimated ship date Thursday, December 03

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ACL Bearings 5M1010H-STD is a high-performance H-Series race main bearing set designed specifically for Ford 302/351 Cleveland V8 engines and 377ci Cleveland stroker applications using Chevrolet connecting rods. This standard size bearing set is engineered to deliver the precision and durability required for high-performance and racing applications.

Key Features:

  • Multi-layered tri-metal copper alloy construction (F780 material) for superior strength and seizure resistance
  • Standard (STD) bearing size manufactured to exact tolerances for reliable fit and consistent clearances
  • Extended oil grooves for improved lubrication distribution
  • Enhanced design features including increased crush, bearing eccentricity, and enlarged I.D. chamfers
  • Race-proven metallurgy engineered to withstand high RPM conditions
  • Includes both upper and lower bearing halves for complete main bearing replacement

ACL Bearings, an Australian-based company with distribution offices in Michigan, is recognized for delivering top-quality engine bearings that combine advanced design, precision engineering, and decades of racing experience. The H-Series designation identifies these as ACL's race-grade bearings, built to perform under the demanding conditions of motorsports and high-performance street engines.

Products specifications

Max Overall Length

0.880" (22.35mm) - 2107H 1.118" (28.40mm) - 2108H Flange

Max Std Shaft Size

2.7492" (69.83mm)

Max Std Tunnel Size

2.9425" (74.740mm)

Max Wall at Crown

0.0962" (2.443mm)

Min Std Shaft Size

2.7484" (69.809mm)

Min Std Tunnel Size

2.9417" (74.719mm)

Oil Clearance

Standard

Size

Standard
