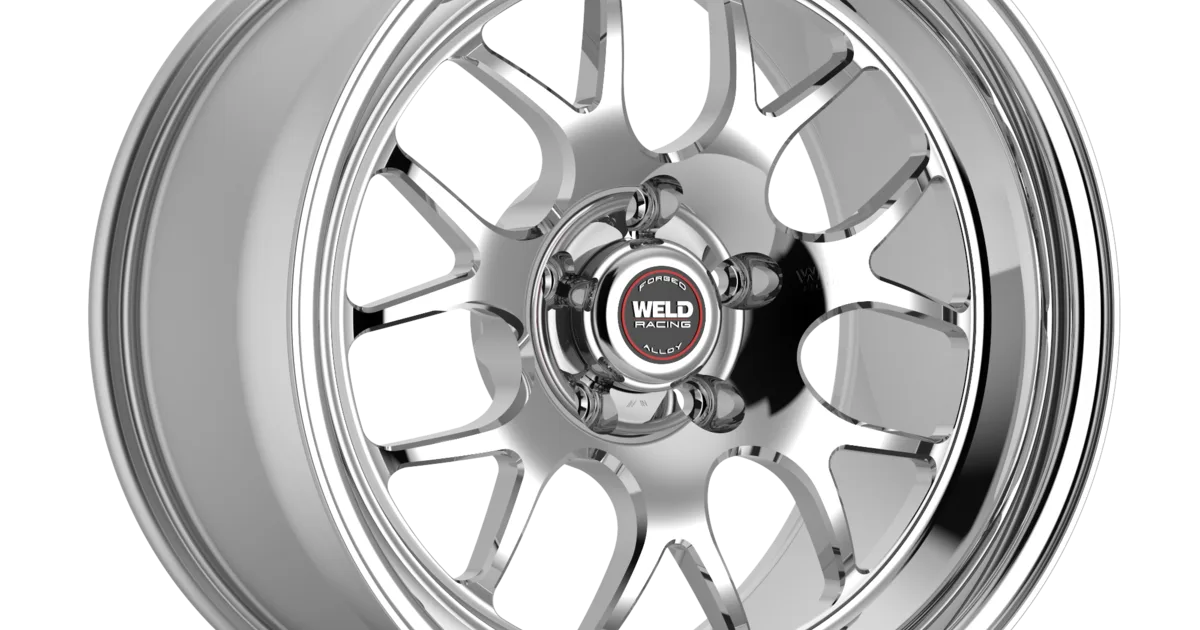

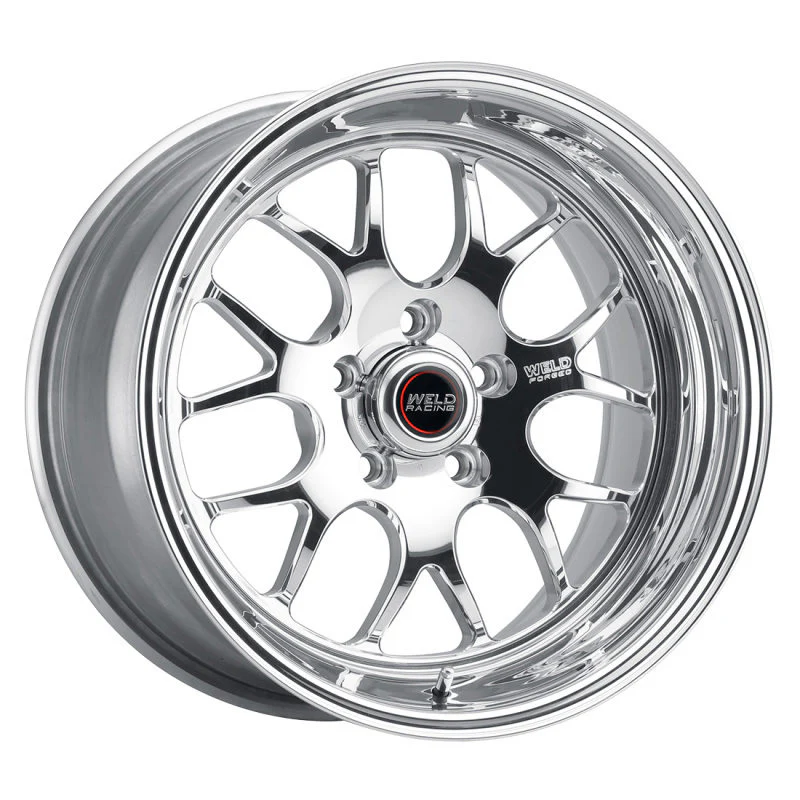

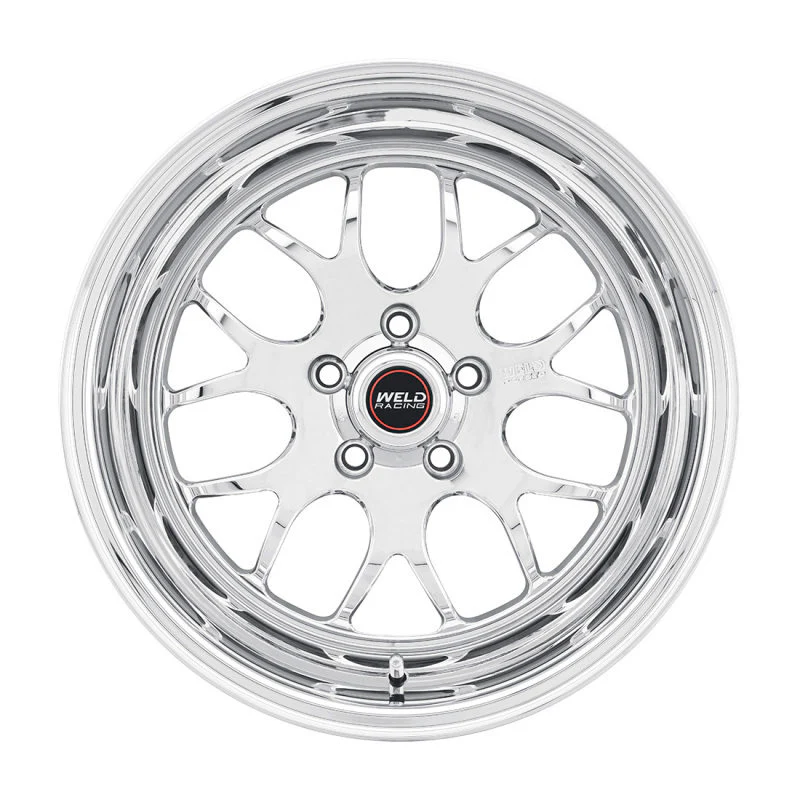

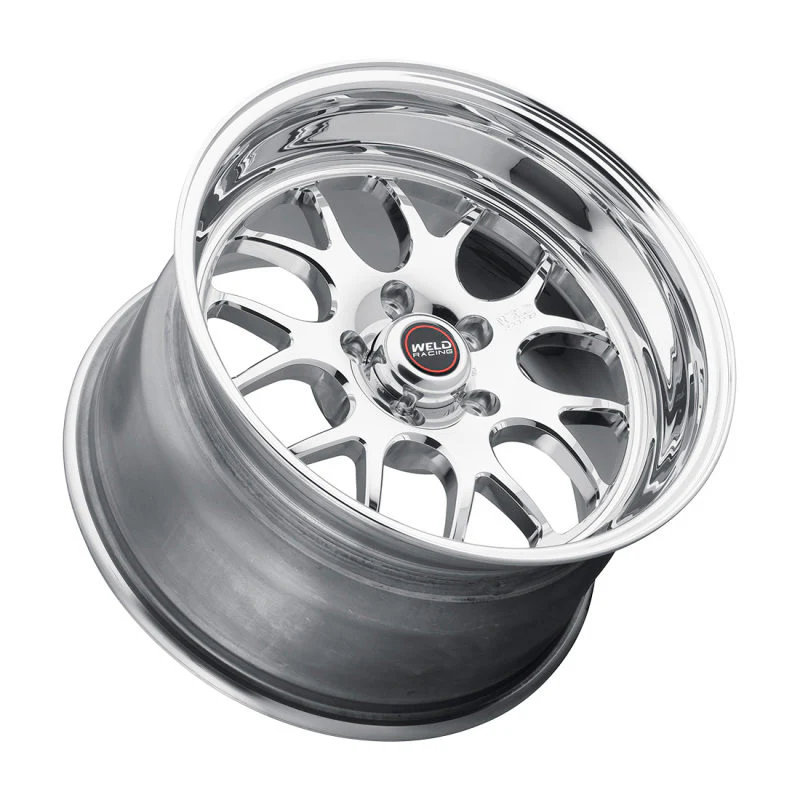

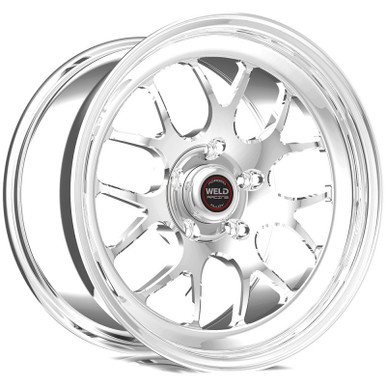

Weld Racing Wheels 77HP0090W63A RT-S S77 Polished Forged Aluminum Wheel 20x9 5x115mm

The WELD RT-S S77 is a classic tuning fork design modified for modern muscle, combining iconic styling with cutting-edge wheel technology. Three-piece forged construction using forged shells and 6061 aluminum centers allows for necessary strength with reduced weight for optimal street performance.

This 20x9 inch wheel features a polished finish with a high pad center configuration designed specifically for modern supercars and muscle cars equipped with large brake systems. The high pad is designed for modern supercars with fixed opposed piston calipers such as factory-installed Brembo systems and performance brake upgrades from Baer, Wilwood, and other manufacturers.

Specifications:

• Wheel Size: 20 inches diameter x 9 inches width
• Bolt Pattern: 5x115mm
• Backspacing: 6.3 inches
• Offset: +33mm
• Load Rating: 1,580 lbs
• Center Bore Diameter: 3.180 inches
• Construction: Three-piece welded assembly
• Finish: Polished aluminum

Key Features:

• Forged billet center and cold forged rim shells for superior strength-to-weight ratio
• High pad mounting configuration for maximum brake caliper clearance
• Center cap and valve stem included
• Requires conical seat lug nuts for 17, 18, and 20 inch diameter wheels
• Made in Kansas City, Missouri USA
• Sold individually

The RT-S S77 bridges the gap between show and performance, offering a budget-friendly forged three-piece wheel that doesn't compromise on quality or appearance. Perfect for street performance, drag racing, road course, or autocross applications where both style and function matter.

Important: This wheel requires 60-degree conical seat lug nuts (not included). Do not use factory lug nuts as they will not properly secure the wheel and may cause damage or safety issues.
