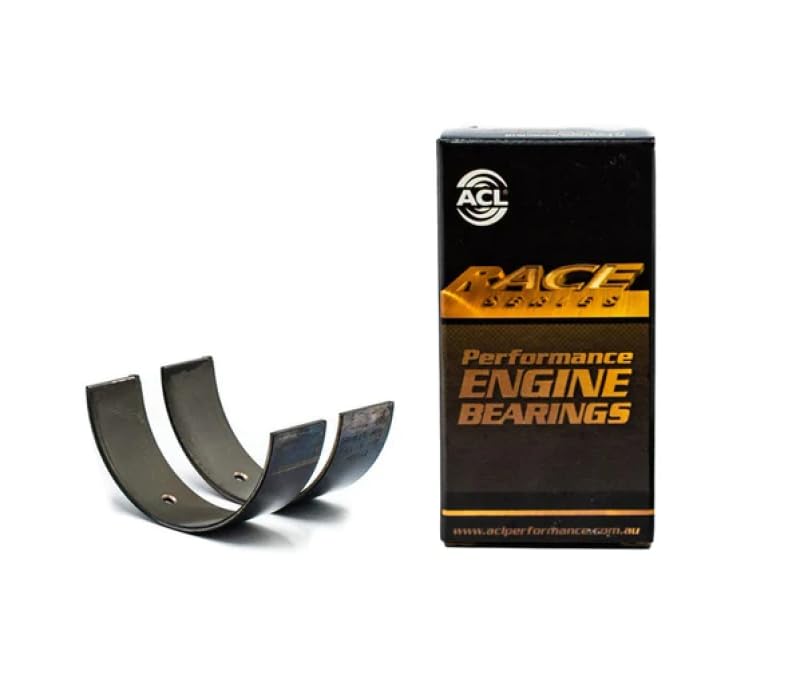

ACL Bearings 4M1149HX-STD Race Series Main Bearing Set Standard Size Mitsubishi Hyundai V6

Manufacturer

Part Number

4M1149HX-STD
Black Friday Price

$138.21

Estimated ship date Thursday, December 10

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ACL 4M1149HX-STD is a Race Series main bearing set engineered for Mitsubishi 6G72, 6G72T, 6G73 and Hyundai 2.5L/3.0L V6 engines. ACL bearings are designed for engine tuning and performance upgrades, offering superior bearing capacity with improvements in material composition, dynamic thickness, heat conduction, and oil distribution.

Key Features:

  • HX designation provides an extra 0.001" (0.025mm) oil clearance compared to standard H-series bearings
  • Wall thickness is 0.0005" (0.013mm) thinner than H-STD bearings for optimized clearance
  • Constructed from F780 tri-metal bearing material for high-strength performance
  • Tri-metal design with hardened steel backing withstands higher RPM conditions and extreme loads
  • Standard size for 59.98-60mm shaft diameter and 64-64.02mm tunnel diameter
  • Includes upper and lower bearing halves for complete main bearing replacement

Technical Specifications:

  • Bearing Size: Standard (STD)
  • Material: F780 Tri-Metal
  • Maximum Shaft Size: 60mm (2.3622")
  • Minimum Shaft Size: 59.98mm (2.3614")
  • Maximum Tunnel Size: 64.02mm (2.5205")
  • Wall Thickness at Crown: 1.975mm (0.0778")
  • Overall Length: 18.13mm (0.7138")
  • Vertical Oil Clearance Range: 0.05-0.106mm (0.002"-0.0042")

ACL main bearings are manufactured from softer metals to protect the crankshaft and engine block, with a thin oil layer allowing the crank to float and minimize wear. Proper main bearing support is essential to prevent oscillations and crankshaft damage. Ideal for performance builds, engine rebuilds, and racing applications requiring precise tolerances and enhanced durability.
