ICON Vehicle Dynamics K53200T Stage 10 Suspension System 2-3.5" Lift Kit for 2022-2023 Toyota Tundra

Manufacturer

Part Number

K53200T
Black Friday Price

$5,405.46

$6,359.36 Save 15%

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

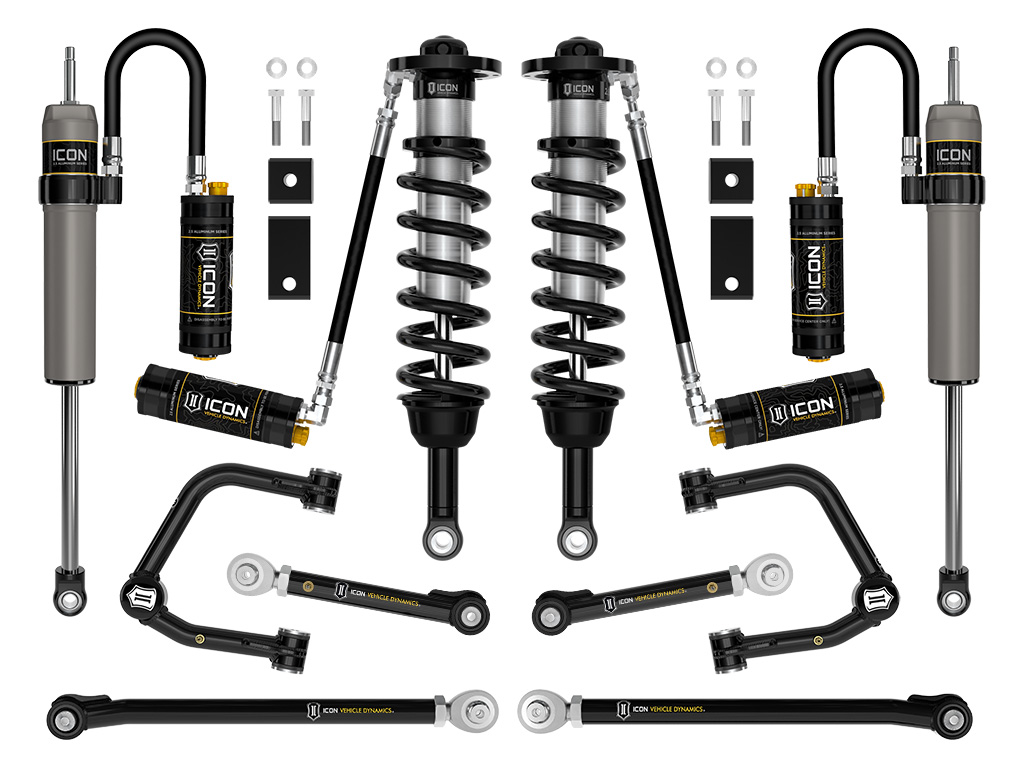

The ICON Vehicle Dynamics Stage 10 complete suspension system delivers maximum performance and versatility for the 2022-2023 Toyota Tundra. This comprehensive kit includes 2.5 Series front coilovers with remote reservoirs, tubular upper control arms, billet aluminum adjustable upper and lower rear links, and 2.5 Aluminum Series rear shocks—all engineered to provide adjustable lift height, improved geometry, and exceptional on- and off-road capability.

Front Suspension Components:

  • 2.5 Series CDCV remote reservoir front coilovers with 10-position compression damping adjustment
  • Adjustable lift height from 2 to 3.5 inches over stock
  • Up to 40% increase in suspension travel compared to factory components
  • Larger 2.5-inch shock body with increased piston area for superior damping control
  • Remote reservoirs increase oil volume and heat dissipation to prevent fade during hard use
  • Tubular upper control arms with built-in caster correction and improved geometry
  • Patented Delta Joint Pro ball joints (U.S. Pat. 10,731,700) with 90 degrees of articulation
  • Serviceable and rebuildable ball joints eliminate bind through full suspension travel
  • Sway bar drop brackets minimize link bind and preserve full wheel travel

Rear Suspension Components:

  • Billet aluminum adjustable upper and lower rear links for precise suspension tuning
  • Constructed from 1-3/4 inch x .313 wall DOM tubing with black powder coat finish
  • PTFE-lined FK rod ends for increased articulation and reduced deflection
  • Multi-durometer bushings provide quiet operation and maximum angularity without maintenance
  • 2.5 Aluminum Series CDCV remote reservoir rear shocks with 10-position damping adjustment
  • Internal Bump Zone technology adds 20% damping force to control hard bottom-outs
  • Remote reservoirs maintain consistent performance during extended heavy use

Key Benefits:

  • Vehicle-specific valving and geometry corrections optimized for the 2022-2023 Tundra platform
  • Accommodates up to 35-inch tires with proper stance and alignment
  • Balanced front-to-rear damping for predictable handling and control
  • Externally adjustable CDC Valves allow tuning for varying loads and terrain without shock removal
  • Enhanced heat dissipation prevents damper fade during aggressive driving
  • Improved suspension articulation for better off-road traction and compliance

This Stage 10 system represents ICON's most complete suspension package for the Tundra, combining the foundation of their Stage 9 system with the addition of adjustable rear links for maximum tunability and performance. The result is a premium suspension system that delivers exceptional ride quality on the street while providing the capability to tackle demanding off-road terrain with confidence.

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Products specifications

Fits

2022-2023 Toyota Tundra
