ICON Vehicle Dynamics K53200 Stage Suspension System Toyota Tundra Lift - 10 2022-2023 1.25-3.5

(2022-2023 Toyota Tundra)

Manufacturer

Part Number

K53200
Black Friday Price

$6,928.40

$8,151.06 Save 15%

3 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

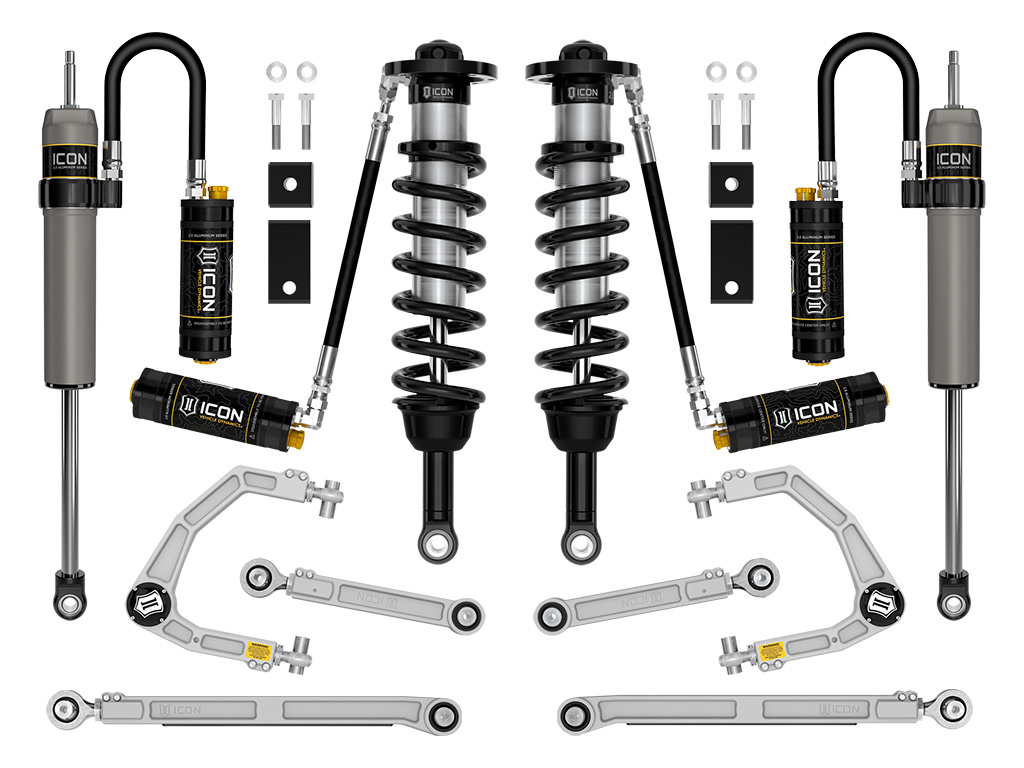

The ICON Vehicle Dynamics Stage 10 complete suspension system delivers premium performance for 2022-2023 Toyota Tundra owners seeking exceptional on-road comfort and serious off-road capability. This comprehensive system combines adjustable coilovers, billet aluminum control arms, and upgraded rear links to provide 1.25-3.5 inches of front lift with the clearance needed for up to 35-inch tires.

Key Components:

2.5 Series CDCV Front Coilovers with Remote Reservoirs
Vehicle-specific valving and shock length provide up to 40% more travel than stock components. The larger 2.5-inch shock body and increased piston area deliver superior damping performance and vehicle control. Remote reservoirs dramatically increase oil volume and heat dissipation surface area to prevent fade during demanding use. External CDC Valves offer 10 levels of compression damping adjustment to fine-tune ride characteristics for any terrain.

Billet Aluminum Front Upper Control Arms
CNC-machined from high-strength aluminum for exceptional durability and weight savings. Features the patented Delta Joint PRO (U.S. Pat. 10,731,700) with 90 degrees of total articulation, allowing full suspension travel without binding. Provides on-vehicle caster and camber adjustment to correct front-end geometry and optimize alignment after lifting.

Adjustable Billet Aluminum Rear Links
Upper and lower rear links machined from 6061 aluminum and anodized for corrosion resistance. PTFE-lined FK rod ends enable increased articulation and reduced deflection. ICON's double adjuster system allows precise on-vehicle length adjustment for fine-tuning suspension geometry. Multi-durometer bushings provide quiet operation and maximum angularity without requiring maintenance or greasing.

2.5 Aluminum Series Rear Remote Reservoir Shocks
Purpose-built for the 2022-2023 Tundra with larger 2.5-inch diameter bodies for outstanding performance. Remote reservoirs maintain consistent damping during extended use by keeping operating temperatures lower. Unique internal Bump Zone creates an additional 20% damping force to control hard bottom-outs. CDC Valves provide 10 settings of compression damping adjustment. Perfectly matched to the front coilovers for balanced vehicle control.

Front Sway Bar Drop Kit
Drop brackets minimize sway bar link bind throughout the suspension travel range, allowing the suspension to move freely and utilize full wheel travel without overstressing OE components.

Features and Benefits:

  • Adjustable lift height from 1.25 to 3.5 inches for custom stance and tire fitment
  • Fits up to 35-inch tires with proper lift adjustment
  • Remote reservoir shocks for superior heat management and fade resistance
  • 10-position compression damping adjustment front and rear
  • Corrected suspension geometry for improved handling and tire wear
  • Increased suspension travel for better off-road capability
  • On-vehicle adjustability for ride height, alignment, and damping
  • Serviceable and rebuildable Delta Joint PRO ball joints
  • Maintenance-free rear link bushings
  • Vehicle-specific engineering for bolt-on installation

This Stage 10 system represents ICON's most comprehensive suspension upgrade for the 2022-2023 Toyota Tundra, building upon the Stage 9 platform with the addition of fully adjustable billet rear links. The result is a complete solution that transforms both on-road driving dynamics and off-road performance while maintaining the refinement expected from a modern full-size truck.

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Products specifications

Fits

2022-2023 Toyota Tundra
