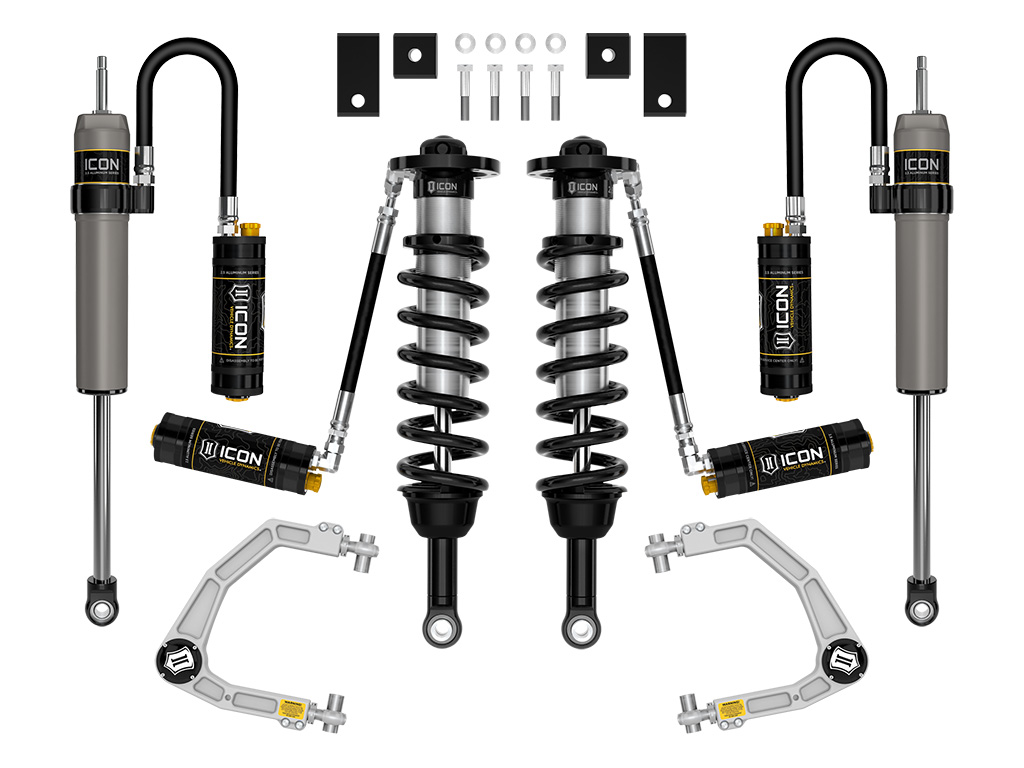

ICON Vehicle Dynamics K53199 Stage 9 Suspension System 2022-2023 Toyota Tundra 2.5 Series with Billet UCAs

Manufacturer

Part Number

K53199
Black Friday Price

$4,677.10

$5,502.47 Save 15%

4 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ICON Vehicle Dynamics Stage 9 complete suspension system transforms the 2022-2023 Toyota Tundra with a comprehensive upgrade featuring 2.5 Series coilovers and shocks equipped with Compression Damping Control Valves (CDCV). This vehicle-specific system delivers adjustable front lift heights from 1.25 to 3.5 inches, improved alignment geometry, and the capability to fit up to 35-inch tires while maintaining exceptional on-road comfort and off-road performance.

Front Coilover System:

  • 2.5 Series front coilovers with remote reservoirs provide superior damping control and enhanced shock cooling during demanding use
  • Vehicle-specific valving optimized for the Tundra's weight and suspension geometry
  • Larger 2.5-inch shock body with increased piston area delivers up to 40% more travel compared to stock components
  • External CDCV adjustment offers 10 compression damping settings to fine-tune performance for street driving, rock crawling, or high-speed desert running
  • Remote reservoirs dramatically increase oil volume and heat dissipation to prevent damper fade and cavitation

Billet Aluminum Upper Control Arms:

  • CNC-machined billet aluminum construction for maximum strength and durability
  • Corrected front-end geometry with on-vehicle caster and camber adjustment for optimized alignment and tire wear
  • Features the patented Delta Joint Pro (U.S. Patent 10,731,700) with 90 degrees of total articulation for unrestricted suspension movement
  • Serviceable and rebuildable ball joint design eliminates bind through full bump and droop travel
  • Improved component clearance for larger tire and wheel combinations

Rear Shock System:

  • 2.5 Aluminum Series rear remote reservoir shocks custom-valved for the 2022-2023 Tundra
  • Remote reservoirs maintain consistent damping performance and cooler operating temperatures during extended off-road use
  • Unique internal Bump Zone technology creates an additional 20% damping force to control harsh bottom-outs
  • Equipped with CDCV offering 10 compression damping settings to match front coilover performance
  • Balanced front-to-rear damping characteristics for superior vehicle control

Additional Components:

  • Front sway bar drop brackets minimize link bind through the suspension travel range, allowing unrestricted wheel movement without overstressing OE components

This comprehensive Stage 9 system provides the perfect balance of adjustability, performance, and durability for Tundra owners seeking maximum capability whether commuting on the highway, navigating technical trails, or exploring remote desert terrain. The combination of remote reservoir technology, adjustable compression damping, and corrected suspension geometry delivers a dramatically improved driving experience in all conditions.

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Products specifications

Fits

2022-2023 Toyota Tundra
