ICON Vehicle Dynamics K53198T Stage 8 Suspension System 2-3.5" Lift Kit for 2022-2023 Toyota Tundra

Manufacturer

Part Number

K53198T
Black Friday Price

$4,707.44

$5,067.76 Save 7%

1 left at this price

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ICON Vehicle Dynamics Stage 8 Suspension System is a complete performance upgrade for the 2022-2023 Toyota Tundra, delivering 2-3.5 inches of adjustable front lift with comprehensive front and rear components engineered for superior on-road comfort and off-road capability. This system enables fitment of up to 35-inch tires while improving suspension travel, alignment geometry, and overall vehicle control.

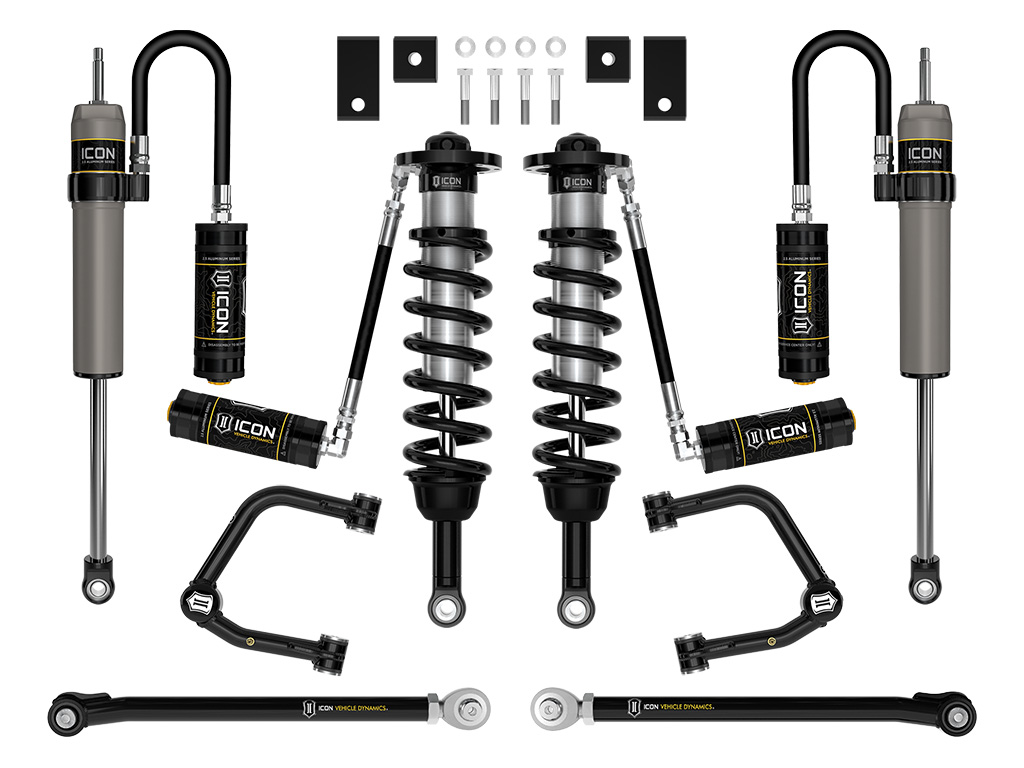

Key Components and Features:

  • 2.5 Series Front Coilovers: Vehicle-specific remote reservoir coilovers with adjustable ride height from 2-3.5 inches of lift, offering up to 40% more travel than stock with superior damping performance and improved heat dissipation
  • Tubular Upper Control Arms: High-strength tubular UCAs featuring the patented Delta Joint PRO (U.S. Pat. 10,731,700) with 90 degrees of total articulation, built-in additional caster, and corrected front-end geometry for bind-free suspension movement
  • Billet Aluminum Rear Lower Links: Constructed from 1-3/4 x .313 wall DOM tubing with FK rod ends featuring PTFE liners for enhanced articulation and reduced deflection, plus multi-durometer bushings for maintenance-free operation
  • 2.5 Aluminum Series Rear Shocks: Remote reservoir design with internal Bump Zone technology providing an additional 20% damping force to control hard bottom-outs, perfectly balanced with front coilovers for consistent vehicle control
  • Sway Bar Drop Brackets: Included hardware minimizes sway bar link bind throughout the suspension travel range, allowing full wheel travel without overstressing OE components

Performance Benefits:

  • Increased ground clearance and improved approach/departure angles
  • Enhanced suspension articulation for technical off-road terrain
  • Corrected alignment specifications at lifted heights
  • Superior heat management through remote reservoir technology prevents damper fade during hard use
  • Multi-stage black powder coat finish on rear links provides excellent corrosion resistance
  • Serviceable and rebuildable Delta Joint PRO eliminates the need for frequent ball joint replacement

This comprehensive Stage 8 system is engineered specifically for the 2022-2023 Toyota Tundra platform, ensuring proper fitment and optimal performance across all driving conditions. The combination of adjustable coilovers, upgraded control arms, and performance shocks delivers a balanced suspension setup that maintains ride quality while dramatically improving capability.

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Products specifications

Fits

2022-2023 Toyota Tundra
