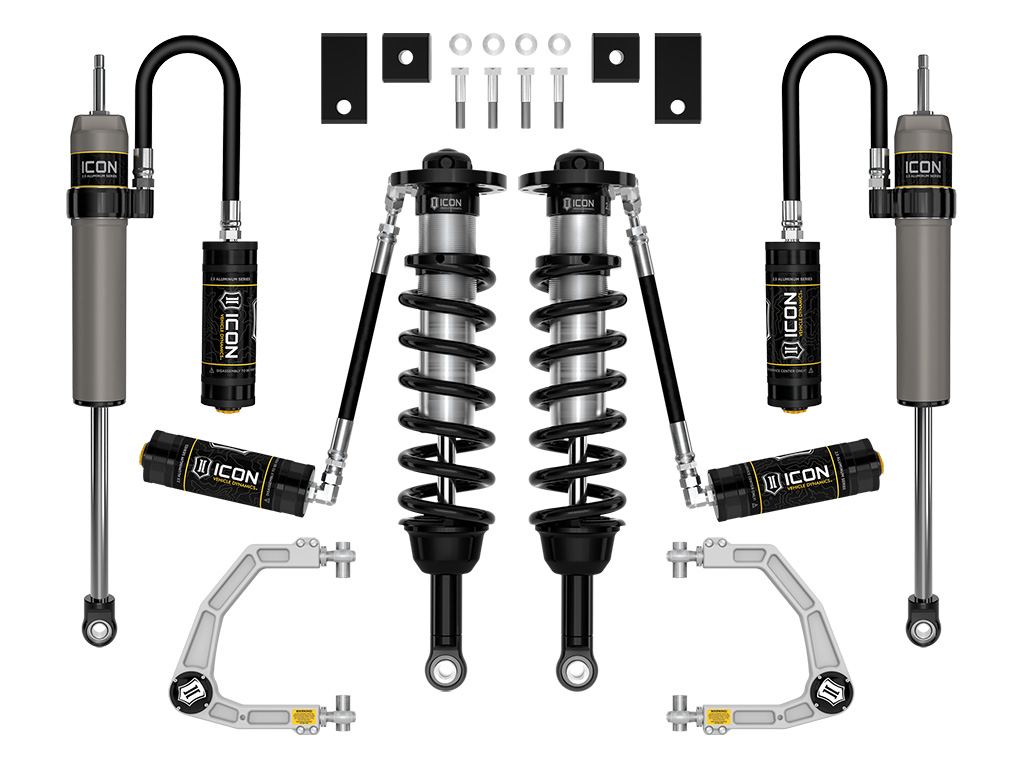

ICON Vehicle Dynamics K53197 Stage 7 Suspension System 2022-2023 Toyota Tundra 2.5 Series Coilovers

Manufacturer

Part Number

K53197
Black Friday Price

$4,135.10

$4,864.82 Save 15%

4 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ICON Vehicle Dynamics Stage 7 complete suspension system transforms the 2022-2023 Toyota Tundra with a comprehensive upgrade featuring 2.5 Series remote reservoir shocks front and rear, billet aluminum upper control arms, and adjustable lift height capability. This premium system delivers exceptional on-road comfort and aggressive off-road performance while accommodating up to 35" tires.

Front Suspension Components:

  • 2.5 Series coilovers with remote reservoirs provide superior damping control and enhanced shock cooling capacity
  • Adjustable ride height from 1.25" to 3.5" of lift over stock configuration
  • Billet aluminum upper control arms (UCAs) with patented Delta Joint PRO technology (U.S. Patent 10,731,700) offering 90 degrees of total articulation
  • Up to 40% increase in front suspension travel compared to factory components
  • Sway bar drop brackets included to reduce binding in OE sway bar links through full suspension travel

Rear Suspension Components:

  • 2.5 Aluminum Series remote reservoir shocks with vehicle-specific valving for the Tundra platform
  • Internal Bump Zone technology creates an additional 20% damping force to control hard bottom-outs
  • Remote reservoirs increase oil volume and cooling surface area to prevent fade during extended use
  • Larger 2.5" shock body diameter with increased piston area for superior ride quality

Key Performance Benefits:

  • Corrected front-end geometry with increased camber and caster adjustment range
  • Serviceable and rebuildable Delta Joint PRO eliminates ball joint binding through full suspension articulation
  • Remote reservoir technology resists shock overheating and cavitation under hard use
  • Balanced front-to-rear damping characteristics for optimal vehicle control
  • Improved clearance for suspension components and larger wheel/tire combinations

This Stage 7 system represents ICON's most comprehensive suspension upgrade for the 2022-2023 Toyota Tundra, combining precision-engineered components that work together to deliver maximum capability whether navigating technical terrain or daily driving. The remote reservoir shocks maintain consistent performance across varying conditions, while the billet UCAs provide the strength and adjustability needed for lifted applications.

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Products specifications

Fits

2022-2023 Toyota Tundra
