ICON Vehicle Dynamics K53192T 2-3" Stage 2 Suspension System for 2022-2023 Toyota Tundra with Tubular UCAs

Manufacturer

Part Number

K53192T
Black Friday Price

$2,078.11

$2,444.84 Save 15%

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ICON Vehicle Dynamics Stage 2 complete suspension system for the 2022-2025 Toyota Tundra builds on ICON's 2.5 EXP Shock Kit with the addition of tubular front upper control arms, providing proper alignment at taller ride heights, improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35" tires. This comprehensive kit bridges the gap between basic spacer lifts and premium threaded coilovers, delivering performance, adjustability, and value in one complete package.

2.5 EXP Series Front Coilovers:

This system features the innovative new 2.5 EXP series coilover shocks and sway bar drop kit for the front of the truck along with our proven 2.0 nitrogen charged monotube shock with internal reservoir for the rear. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package. The 2.5-inch diameter shocks utilize your factory coil springs and hardware, combining rebuildable premium performance with cost-effective installation.

Tubular Upper Control Arms with Delta Joint PRO:

The included ICON tubular upper control arm kit is designed to improve the overall performance of the new 2022-2025 Toyota Tundra with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation, providing exceptional durability and performance.

V.S. 2.0 Aluminum Series Rear Shocks:

The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 EXP Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra.

Key Features:

  • Adjustable front ride heights from 2-3" of front lift over stock with the use of snap ring and included tubular UCAs
  • 2.5" EXP Series front shocks with internal reservoirs utilize factory coil springs and hardware
  • Tubular UCAs for added strength, durability, and alignment correction for better drivability
  • Included sway bar drop brackets reduce bind in OE sway bar links
  • Allows for full wheel travel without overstressing OE components
  • All ICON shock absorbers are fully rebuildable and re-tunable
  • 100% Bolt-on system - no drilling, cutting, or welding necessary for install

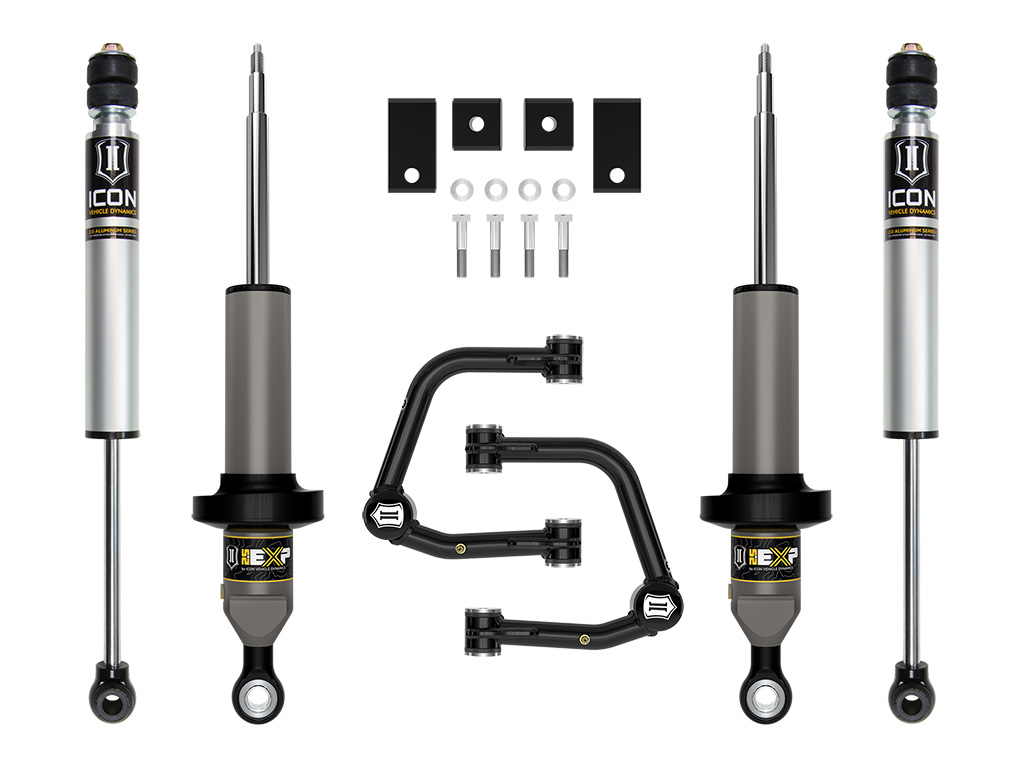

Kit Components:

  • 58671 (QTY: 2) | 22-UP TUNDRA FRONT EXP COILOVER
  • 58461DJ (QTY:1) | 22-UP TUNDRA TUBULAR UCA KIT
  • 55154 (QTY: 1) | 22-UP TUNDRA SWAY BAR DROP KIT
  • 56516 (QTY: 2) | 22-UP TUNDRA 0-1" REAR 2.0 VS IR

Important Application Notes:

  • Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
  • Not compatible with Tundras equipped with Load-leveling Rear Height Control Air Suspension
  • Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
  • Tundra SR5 equipped with TRD Sport Suspension package will have lift height range of 3-4" over stock
  • For 4WD models without TRD Off-Road package ICON recommends using ICON Diff Drop (Part# 55156) or using Toyota TRD axles (Part# 434200C020 Driver / 434100C020 Pass). Failure to do so could result in front axle damage.

Recommended Tire Fitment: Up to 35" x 12.50" (minor fender trimming and modifications may be required)

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Products specifications

Fits

2022-2023 Toyota Tundra
