Wilwood 261-16962-P Remote Tandem Master Cylinder Kit 1" Bore Polished

The Wilwood 261-16962-P Remote Tandem Master Cylinder Kit provides a complete brake pressure actuation solution for performance brake systems. This comprehensive kit features a 1.00" bore tandem master cylinder with polished finish, designed for precise brake fluid control and reliable stopping power.

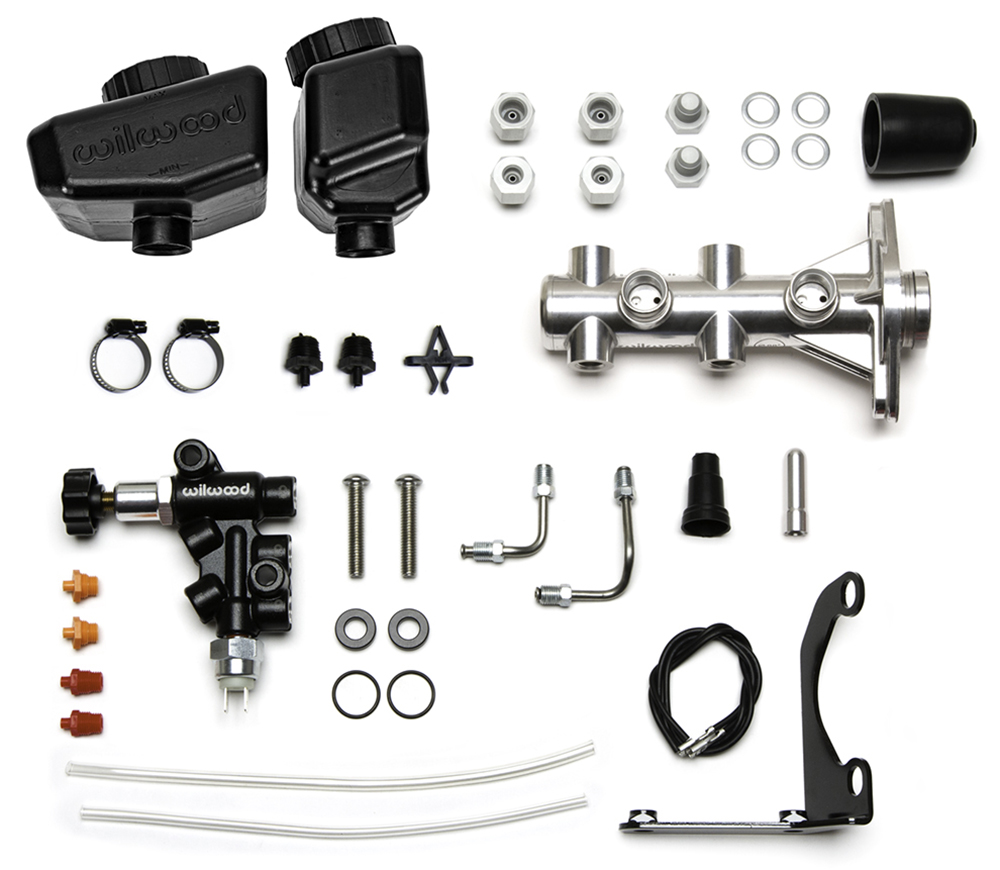

Complete Kit Includes:

• High-pressure die-cast aluminum tandem master cylinder with ball burnished polished finish
• GM-style angled reservoirs (rear reservoir holds 5 oz, front holds 8 oz)
• Combination proportioning valve with integrated hydraulic brake light switch and adjustable proportioning
• Left-hand side mounting bracket with slotted flanges for 3.22" to 3.40" on-center studs
• Precision-bent stainless steel fluid tubes with pre-installed plated steel tube nuts
• All necessary mounting hardware for bolt-on installation

Key Features:

• Durable nylon reservoirs designed to sit level when mounted at 15° angle typical of GM power brake applications
• Combination proportioning valve simplifies installation by integrating brake light switch, adjustable prop valve, and Y-junction block in one unit
• Black E-coat finish on proportioning valve and hardware for corrosion resistance and performance appearance
• Slotted mounting flanges allow installation flexibility for various stud spacing configurations

Ideal for custom brake system installations and GM power brake conversions requiring remote-mounted master cylinder configuration with adjustable rear brake proportioning.
