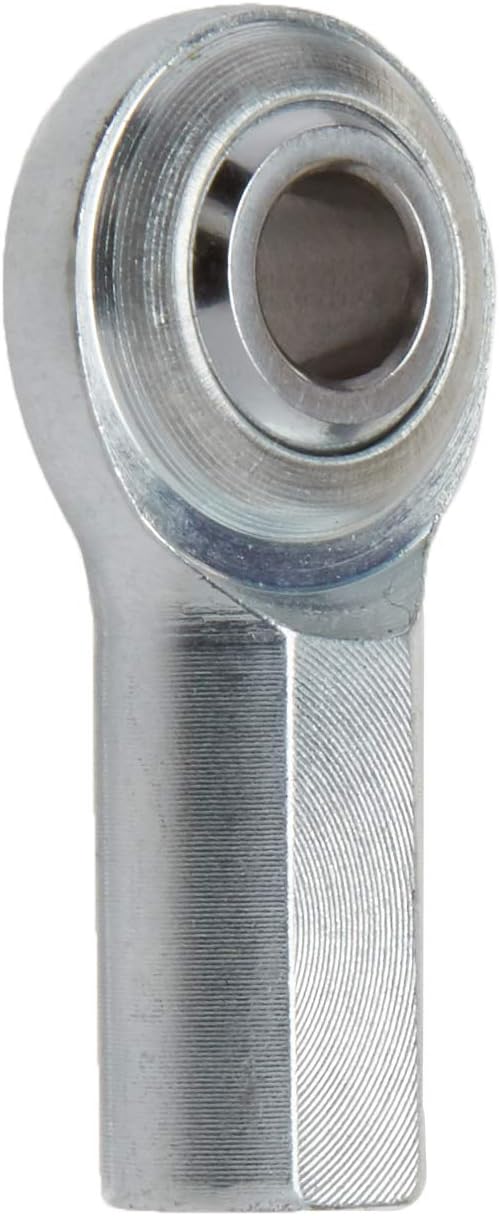

QA1 CFR5 Carbon Steel Female Rod End 2-Piece Economy Design

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

CFR5
7 reviews
Sale Price

$3.58

2 left at this price

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 CFR5 is a carbon steel female rod end from QA1's CF Series, featuring a traditional 2-piece economy design, commonly referred to as a mohawk style. This rod end consists of only two components: a heat-treated bearing steel ball and a carbon steel body that is swaged around the ball on each side to lock it in place, then loosened to allow articulation.

Key Features:

  • 2-piece economy design ideal for light-duty applications
  • Metal-to-metal construction for durability
  • Available in both metric and inch dimensions with left and right hand threads
  • Protective coating for corrosion resistance
  • Optional grease fittings and stud configurations available

Ball Specifications:

  • 52100 bearing steel construction
  • Heat treated for strength
  • Hard chrome plated finish
  • Precision ground for smooth operation

Body Specifications:

  • Carbon steel construction
  • Protective coated for corrosion resistance

Important Notes: Load ratings apply only to rod ends without grease fittings. For ratings with grease fittings, contact QA1 directly. Grease fittings are not available for sizes 2 and 3.

The CF Series offers an economical solution for applications requiring reliable rod end performance in suspension systems, steering linkages, and other light-duty mechanical connections.

Products specifications

A (+/-0.015)

1.375

Approx Bearing Weight

0.08

B (+0.0025/-0.0005)

0.3125

Ball Dia Ref

0.625

C (+0.062/-0.031)

0.687

D Ref

0.875

E (+/-0.010)

0.5

F (+/-0.010)

0.437

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

22

Notes

Only rod end ball is heat treated.

Quantity

Sold individually.

Rod End Attachment

Female threads

Rod End Ball Width

0.437 in.

Rod End Centerline Length

1.375 in.

Rod End Construction

2-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.3125 in.

Rod End Head Diameter

0.875 in.

Rod End Head Width

0.437 in.

Rod End Material

Carbon steel

Rod End Misalign Angle (degrees)

22 degrees

Rod End Static Load Capacity

5,110 lbs.

Rod End Static Load Capacity (lbs)

5,110 lbs.

Rod End Style

Metal to metal

Rod End Thread Size

5/16-24 RH in.

Thread Length

0.687 in.

Thread Type

Right Hand

Thread UNF-2B

5/16 -24

UTL Radical Static

5110

W (+/-0.005)

0.437
