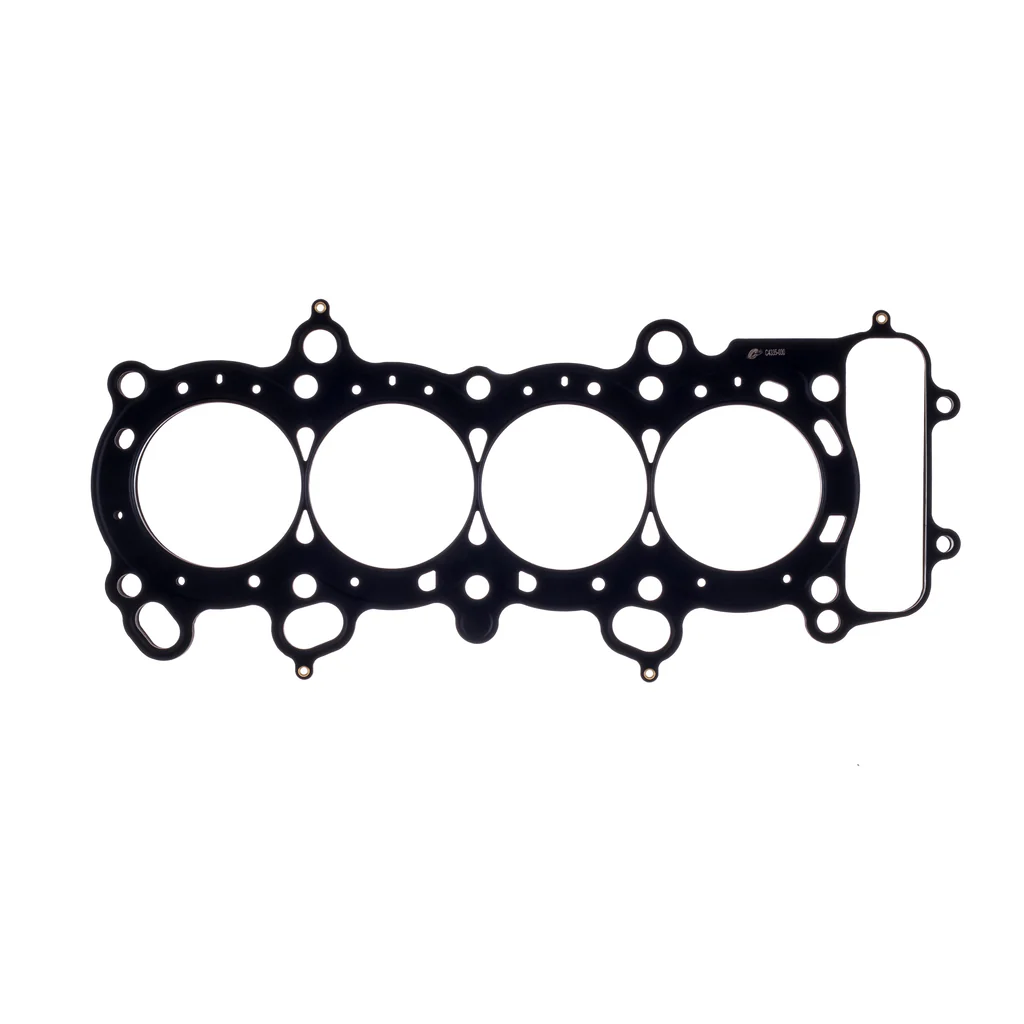

Cometic H2089SP2040S MLS Head Gasket Honda Bore Thick - S2000 F20C F22C 87mm 0.040

The Cometic H2089SP2040S is a high-performance Multi-Layer Steel (MLS) head gasket specifically engineered for Honda S2000 engines with an 87mm bore diameter and 0.040 inch (1.0mm) compressed thickness. This precision-manufactured gasket is designed for the F20C1 2.0L and F22C1 2.2L VTEC engines found in 2000-2009 Honda S2000 models.

Multi-Layer Steel Construction:

• Multiple embossed layers of stainless steel provide superior sealing performance
• Proprietary high-temperature coating on select layers ensures durability under extreme conditions
• Load-controlled embossments distribute clamping force evenly across the sealing surface
• Requires less clamp load than conventional gaskets, reducing bore distortion
• No sealants required for installation

Key Specifications:

• Bore Diameter: 87mm (standard bore)
• Compressed Thickness: 0.040 inch / 1.0mm
• Material: Multi-Layer Stainless Steel
• Compatible with aluminum heads to aluminum blocks and aluminum heads to cast iron blocks

Cometic MLS head gaskets are the preferred choice for high-output engines, offering exceptional reliability for both street performance and racing applications. The advanced embossment technology conforms to irregular surfaces while maintaining consistent compression across all cylinders, making this gasket ideal for naturally aspirated and forced induction builds alike.
