Weld Racing 77HP7090W62A RT-S S77 17x9 Polished Wheel High Pad Non-Beadlock

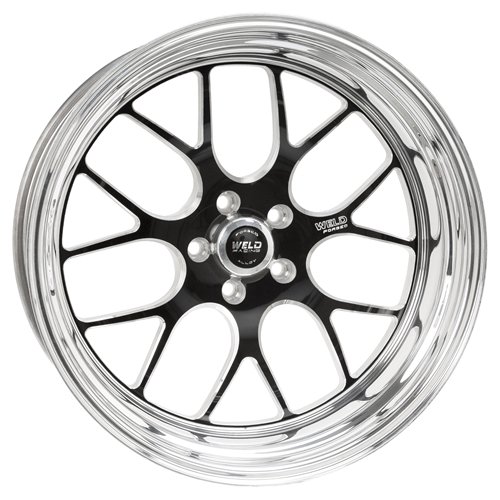

The Weld Racing RT-S S77 (PN: 77HP7090W62A) is a 17x9 polished forged aluminum wheel featuring a High Pad mounting configuration and 6.2-inch backspace. Built on Weld's iconic tuning fork spoke design, the S77 brings proven racing technology to the street in a refined, mirror-polished finish.

This wheel is constructed using a 3-piece modular assembly — cold-forged rim shells are paired with a 6061-T6 forged aluminum center and joined via Weld's proprietary welding process. This construction delivers an ideal balance of strength, reduced rotational mass, and dimensional flexibility.

Key Features:

• Size: 17 in. diameter x 9.0 in. width
• Backspace: 6.2 in.
• Bolt Pattern: 5 x 4.75 in. (5 x 120.65mm)
• Pad Height: High Pad — 2.05 in. of brake clearance from peak spoke curvature
• Finish: Polished aluminum
• Construction: 3-piece forged modular — cold-forged shells with 6061 forged center
• Beadlock: Non-Beadlock
• Includes matching center cap
• Sold individually (each)
• Does not accept 5/8 in. drive studs

The RT-S S77 is engineered for modern muscle car applications and is designed and manufactured in the United States. Its multi-piece modular design allows for application flexibility across a wide range of fitments, making it a popular choice for street performance, drag racing, and autocross builds.
