ACL Bearings 5M2975H-.025 Race Series Main Bearing Set Oversize - 025

Manufacturer

Part Number

5M2975H-.025
Black Friday Price

$96.01

Estimated ship date Tuesday, December 08

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ACL Bearings 5M2975H-.025 is a high-performance main bearing set engineered specifically for Nissan SR20DET GTiR engines. This Race Series bearing kit features .025mm oversize dimensions and is designed to deliver exceptional reliability under demanding high-RPM racing conditions.

Advanced Tri-Metal Construction:

Manufactured from ACL's premium F780 Duraglide tri-metal material, these bearings utilize a copper-lead alloy composition (74% copper, 24% lead, 2% tin) with a hardened steel backing and lead-based overlay. This combination provides superior load capacity, improved fatigue resistance, and excellent anti-seizure properties essential for high-performance applications.

H-Series Performance Features:

  • H-Series designation indicates harder bearing material with increased oil clearance (.001" extra clearance)
  • High-strength overlay plate with reduced thickness for enhanced fatigue properties
  • Hardened steel backing for improved support and bearing retention
  • Increased crush design eliminates flash plating for optimal heat transfer
  • 3/4 grooving pattern optimizes oil supply and maximizes load-carrying surface area
  • Tight wall tolerances ensure consistent, reliable performance
  • Precision-manufactured to exacting tolerances for accurate wall thickness

Technical Specifications:

  • Part Number: 5M2975H
  • Bearing Size: .025mm oversize
  • Bearing Type: Upper and lower halves included
  • Material: F780 tri-metal copper-lead

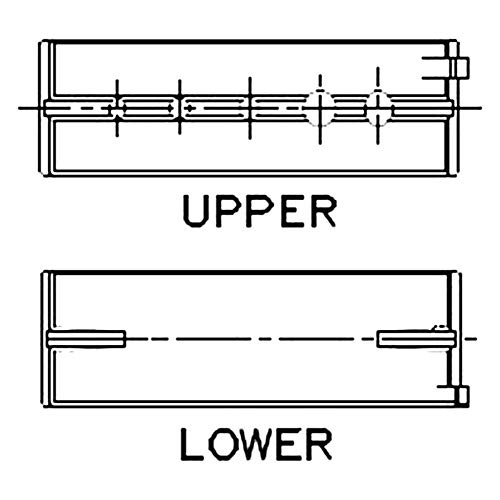

  • Application: Nissan SR20DET GTiR (features 5 oil holes in upper bearing)
  • Max Overall Length: 19.1mm (0.752 inches)
  • Max Shaft Size: 54.98mm (2.165 inches)
  • Max Tunnel Size: 58.968mm (2.322 inches)
  • Vertical Oil Clearance Range: 0.004mm to 0.068mm

ACL Race Series bearings are trusted by professional engine builders worldwide and are manufactured using state-of-the-art production facilities to maintain the closest tolerances. Whether building a high-performance street engine or an all-out race motor, these main bearings deliver the durability and precision required for demanding applications.

Products specifications

Size

.025
