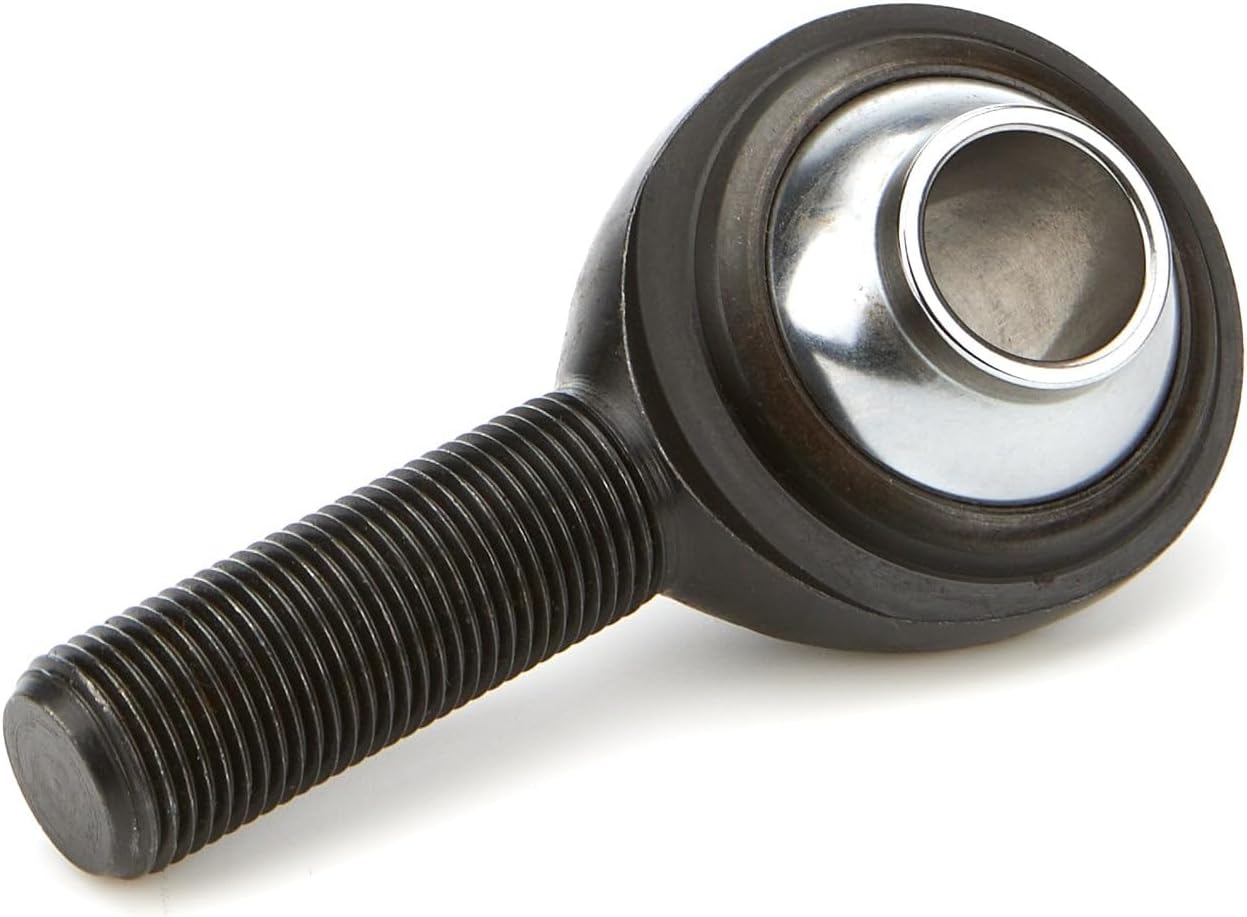

QA1 Precision Products PCYML-10T High Misalignment Chromoly Rod End 5/8"-18 LH

Manufacturer

Part Number

PCYML-10T
Sale Price

$18.27

In Stock (10+)

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 Precision Products PCYML-10T is a high-misalignment chromoly rod end designed for demanding steering and suspension applications. This precision-engineered component features a 5/8"-18 left-hand thread with a 5/8" bore, providing exceptional articulation and durability in high-performance vehicles.

Key Features:

  • High-misalignment ball design allows for greater articulation angles compared to standard rod ends
  • Chromoly steel construction for superior strength and wear resistance
  • 5/8"-18 left-hand thread for secure installation
  • 5/8" bore accommodates standard mounting hardware
  • Precision manufacturing ensures tight tolerances and smooth operation
  • Self-lubricating Teflon liner reduces friction and maintenance requirements
  • Ideal for steering linkages, tie rods, and suspension components

QA1's PCYM-series rod ends are engineered for racing and high-performance street applications where maximum articulation and reliability are critical. The high-misalignment design is particularly valuable in applications with extreme suspension travel or unconventional geometry.

Products specifications

A (+/-0.015)

2.875

Approx Bearing Weight

0.51

B (+0.0015/-0.0005)

0.625

Ball Dia Ref

1.312

C (+0.062/-0.031)

1.75

D Ref

1.75

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

64

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

1.375 in.

Rod End Centerline Length

2.875 in.

Rod End Construction

2-piece

Rod End Finish

Black oxide

Rod End Head Bore Size

0.625 in.

Rod End Head Diameter

1.750 in.

Rod End Head Width

1.375 in.

Rod End Material

Chromoly

Rod End Misalign Angle (degrees)

64 degrees

Rod End Static Load Capacity

21,219 lbs.

Rod End Style

PTFE lined

Rod End Thread Size

5/8-18 LH in.

Thread Length

1.750 in.

Thread Type

Left Hand

Thread UNF-3A

5/8 -18

UTL Radical Static

19394

W (+/-0.005)

1.375
