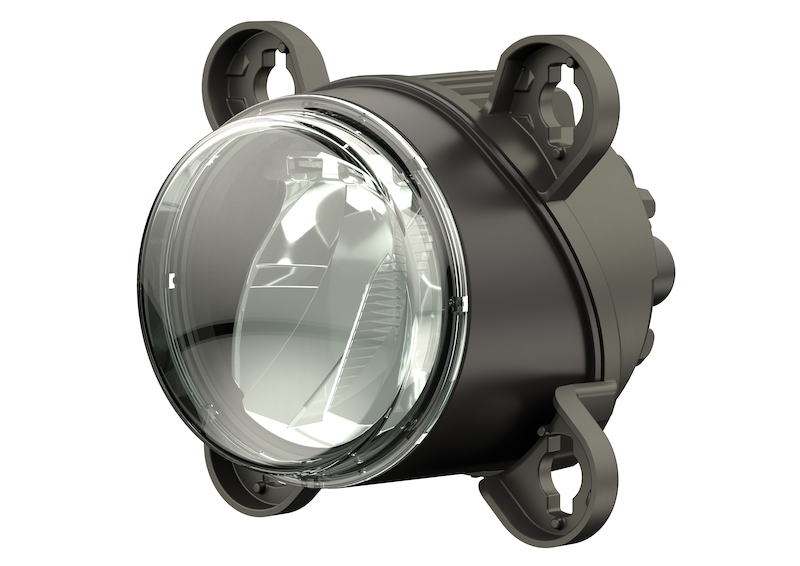

Hella 015050131 R80 LED High Beam Headlamp 90mm Module

The Hella 015050131 is a compact R80 LED High Beam Headlamp module engineered for demanding vehicle applications. Part of Hella's 90mm modular headlamp system, it delivers strong, evenly distributed long-range illumination in a robust, maintenance-free package.

Key Features:

• LED High Beam Technology: Produces a daylight-like light color that reduces eye fatigue during extended nighttime driving, improving driver comfort and safety
• Homogeneous Illumination: Innovative free-form reflector design ensures exceptionally uniform, wide light distribution
• 3 White LEDs: Crystal-clear polycarbonate lens with a black aluminum housing for a clean, modern appearance
• Multivolt Compatibility: Operates across a 9V–33V range, suitable for both 12V and 24V vehicle electrical systems
• Impact-Resistant Construction: Die-cast aluminum heat sink and polycarbonate lens withstand vibration, shocks, and harsh operating environments
• Weatherproof Rating: IP 6K9K rated — fully dust-proof and resistant to high-pressure wash-down
• Modular Design: Fits directly into Hella's 90mm headlamp housing system, making it ideal for converting existing halogen setups to LED technology
• ECE Approved: Meets ECE regulatory standards for on-road use
• Low Power Consumption: Under 5W at 12V and under 11W at 24V for excellent energy efficiency
• 6-Pin Connector: Uses a standard FEP 1J0973702 connector for straightforward installation

The Hella R80 LED high beam headlamp module offers a long, maintenance-free service life and reduced operating costs compared to conventional halogen headlamps — even in vehicles with low annual usage. Its compact 90mm form factor and modular construction make it a versatile solution for trucks, commercial vehicles, agricultural equipment, and specialty applications requiring reliable, high-performance lighting.
