Hella 015050031 R80 LED Low Beam Headlamp Module 90mm SAE

The Hella 015050031 is an R80 Series 90mm LED low beam headlamp module designed for right-hand traffic applications with an SAE-compliant DT06-2S connector. Part of Hella's modular 90mm headlamp platform, the R80 delivers homogeneous, close-range illumination with a daylight-like color temperature that reduces driver eye fatigue during extended nighttime driving.

Key Features:

• LED Technology: 3 white LEDs with an innovative Free-Form reflector for even, glare-free light distribution
• Multivolt Operation: Operates across a wide voltage range of 9V–33V; power consumption under 5W at 12V and under 11W at 24V
• Compact Housing: Black aluminum housing with integral aluminum heat sink for efficient thermal management
• Impact-Resistant Lens: Crystal-clear polycarbonate lens engineered to withstand harsh environments
• Fiberglass-Reinforced Plastic Housing: Provides structural durability and long-term reliability
• Heavy-Duty Mounting: Pedestal mount with vibration-dampened mounting stud bracket

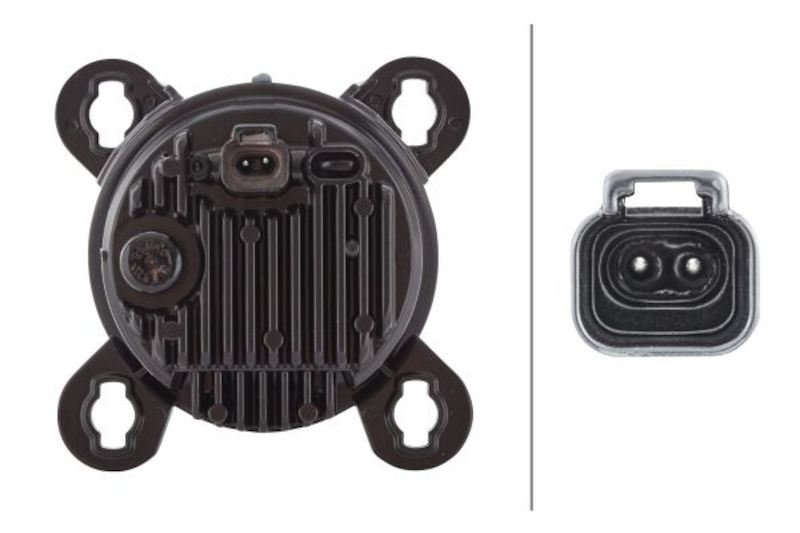

• SAE Certified: Right-hand traffic, SAE approved with 6-pin DT connector (DT06-2S)
• IP 6K9K Rated: Fully dust-proof and withstands high-pressure wash-down
• Maintenance-Free: Long LED service life reduces operating costs versus conventional halogen headlamps

The Hella R80 LED headlamp module is purpose-built for trucks, specialty vehicles, and demanding working environments where reliable, energy-efficient lighting is critical. Its compact 90mm modular design allows for flexible integration into custom headlamp assemblies without sacrificing light quality or durability.
