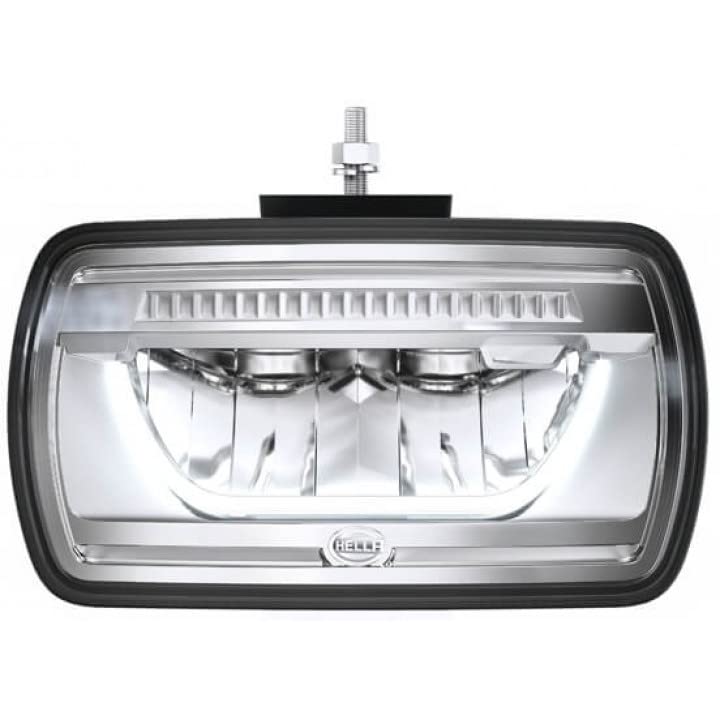

Hella 016773011 Jumbo LED Auxiliary High Beam Headlamp with Position Light - Pendant Mount

The Hella 016773011 Jumbo LED is a full-LED auxiliary high beam headlamp designed for pendant (suspended) mounting on trucks, commercial vehicles, and heavy equipment. Featuring 100% LED technology throughout, this headlamp delivers a powerful, homogeneous high beam with daylight-like color quality for fatigue-free driving on long hauls.

One of the standout features is Hella's EdgeLight technology, which intensifies the characteristic contours of the LED position light, creating a highly recognizable "streetsmile" light signature. The delay-free flashing light function adds an extra safety advantage for attention-grabbing headlamp flasher use.

Key Features:

• 100% LED technology — both high beam and position light are fully LED
• EdgeLight position light with distinctive streetsmile light signature
• Multi-voltage — compatible with both 12V and 24V electrical systems
• Pendant (suspended) mounting with bolted bracket; ideal for roof bar installation
• Impact-resistant thermoplastic housing — lightweight at only 980 g
• Zinc-coated steel fastening bracket with wide angular adjustment range
• Open cable ends with 800mm lead length for flexible wiring
• Reference number 25 high beam output
• Dual IP protection: IP6K7 and IPX9K — dust-tight and high-pressure/high-temperature washdown resistant
• ECE type-approved: ECE R149 (high beam), ECE R148 (position light), ECE R10 (EMC)
• Electronics components qualified to automotive standards
• Power consumption: 1.3W (position light) / 8W (high beam) at 12V; 2.7W (position light) / 8W (high beam) at 24V

Specifications:

• Lamp Type: Full LED
• Mounting: Bolted / Pendant (Suspended)
• Voltage: 12V / 24V
• Housing Material: High-quality thermoplastic (synthetic)

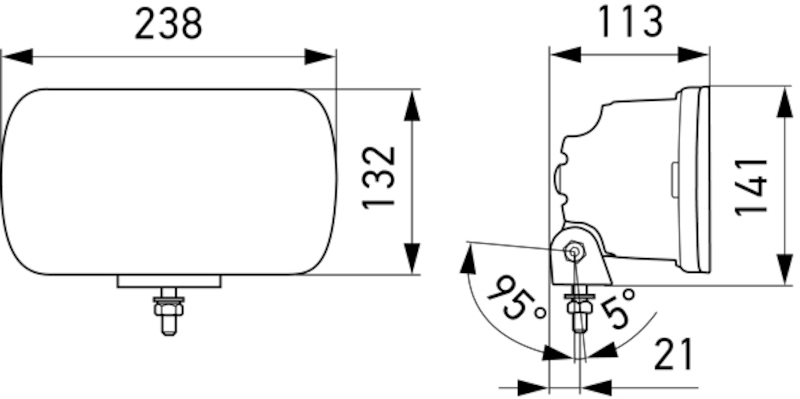

• Dimensions: 238mm (W) × 141mm (H incl. bracket) × 113mm (D)
• Weight: 980 g
• Cable Length: 800mm, open cable ends
• Protection Rating: IP6K7 / IPX9K
• SVHC Note: Contains lead (7439-92-1) per REACH regulations

OEM / Cross-Reference Numbers: Hella 1FE 016 773-011 | DAF 1546064 | Liebherr 12105382

The Hella Jumbo LED pendant version is purpose-built for commercial vehicle roof bar and bracket mounting, offering the same class-leading light output and signature LED aesthetics as the upright version in a configuration optimized for overhead installation.
