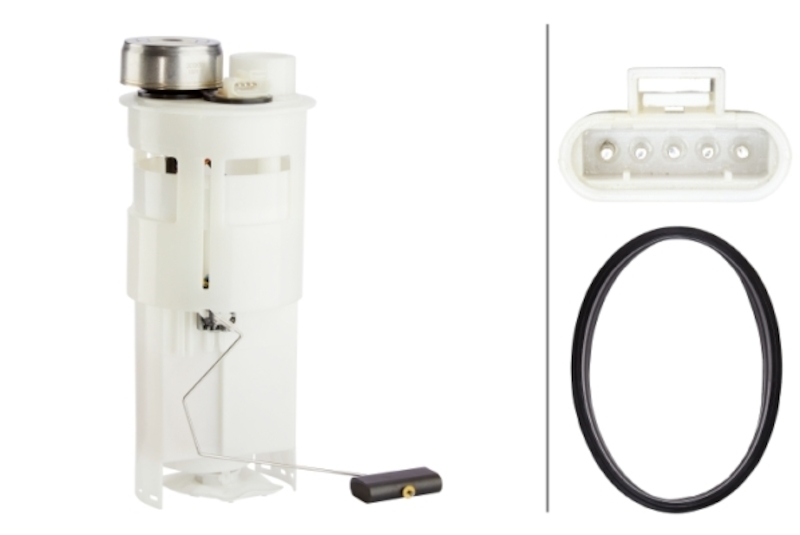

Hella 358302611 Fuel Pump and Sender Assembly, Internal Electric

The Hella 358302611 is an internal electric fuel pump and sender assembly that delivers fuel from the tank to the engine while simultaneously providing accurate fuel level readings to the dashboard. This integrated unit combines the fuel pump and fuel level sender into a single assembly, simplifying installation by reducing the number of separate components and connections required. Designed for gasoline applications, it operates on a 12-volt electric system and features a quick-connect outlet, a 5-pin oval female connector, and a built-in strainer inlet to help filter contaminants before they reach the fuel system.

Key Features:

• Integrated pump and sender unit combines fuel delivery and level monitoring in one assembly
• Internal electric pump design rated for 12V operation
• Maximum flow rate of 42 GPH with a maximum pressure of 36 PSI
• Fuel level sender included for accurate dashboard fuel gauge readings
• Built-in strainer inlet helps protect the pump from debris
• Includes regulator, seal, lock ring, and gasket — no additional sealing hardware needed
• Quick-connect outlet with 0.37 in. outside diameter
• 5-terminal male pin configuration with oval female connector
• 14.48 in. overall length
• Premium grade construction engineered for continuous operation across varying fuel qualities
• Specific fit design for precise compatibility
• Wiring harness and mounting hardware not included

This Hella assembly is built to restore consistent fuel supply and reliable level monitoring, helping maintain proper engine performance. Fits select 1993–1996 Dodge models. Installation by qualified personnel is recommended.
