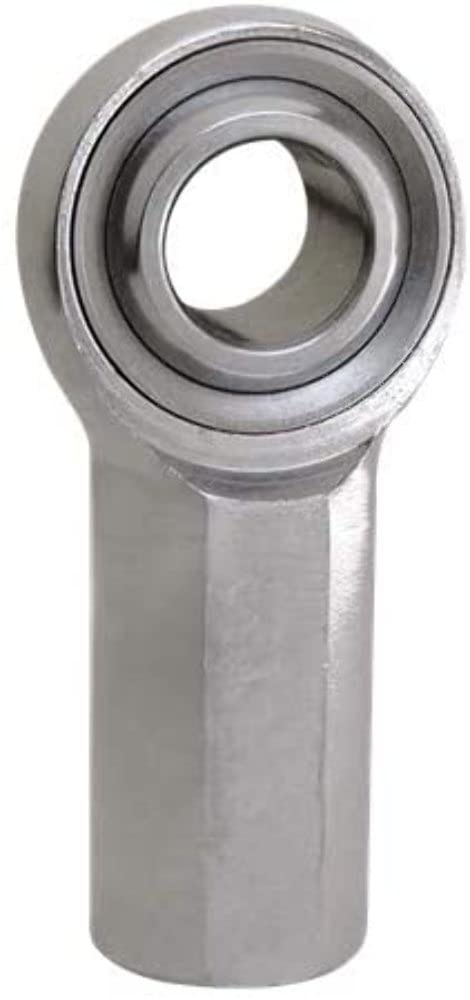

QA1 KFL16T K Series 3-Piece Carbon Steel Rod End 1in Bore 1-1/4in-12 LH Female Thread PTFE Lined

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

KFL16T
7 reviews
Sale Price

$90.28

Estimated ship date Sunday, November 22

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 KFL16T is a K Series three-piece carbon steel female rod end featuring a self-lubricating PTFE liner, designed for high-load performance and racing applications. With a 1-inch bore and 1-1/4"-12 left-hand female thread, this rod end delivers precision fit and reliable articulation in demanding suspension and linkage environments.

Built using QA1's traditional three-piece construction, the ball is pressed into a sleeve that is swaged around it to form the insert. The insert O.D. is then turned down and faced off before being staked into the rod end body — a process that provides superior ball-to-race conformity and tighter tolerances compared to two-piece designs.

Key Features:

  • Ball: 52100 bearing steel — heat treated, precision ground, and hard chrome plated for exceptional wear resistance
  • Race/Body: Carbon steel (alloy/chromoly steel at manufacturer's option) with protective coating for corrosion resistance
  • Liner: PTFE (polytetrafluoroethylene) — self-lubricating for maintenance-free operation
  • Thread: 1-1/4"-12 left-hand female thread
  • Bore: 1.0000 in.
  • Design: Three-piece construction for tighter tolerances and better ball-to-race conformity
  • Grease fitting and stud configurations available separately

QA1's KF-T Series rod ends are a go-to choice for circle track racing, drag racing, street performance, and street rod builds where precision, strength, and low-maintenance articulation are essential.

Products specifications

A (+/-0.015)

4.125

Approx Bearing Weight

2.28

B (+0.0015/-0.0005)

1

Ball Dia Ref

1.875

C (+0.062/-0.031)

2.125

D (+/-0.010)

2.75

E (+/-0.010)

1.625

F (+/-0.010)

1.5

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

17

Notes

Only rod end ball and race are heat-treated.

Quantity

Sold individually.

Rod End Attachment

Female threads

Rod End Ball Width

1.375 in.

Rod End Centerline Length

4.125 in.

Rod End Construction

3-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

1.000 in.

Rod End Head Diameter

2.750 in.

Rod End Head Width

1.375 in.

Rod End Material

Carbon steel

Rod End Misalign Angle (degrees)

17 degrees

Rod End Static Load Capacity

40,889 lbs.

Rod End Style

PTFE lined

Rod End Thread Size

1 1/4-12 LH in.

T (+/-0.005)

1

Thread Length

2.125 in.

Thread Type

Left Hand

Thread UNF-2B

1-1/4 -12

UTL Radical Static

40889

W (+0.000/-0.005)

1.375

Prop 65

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
