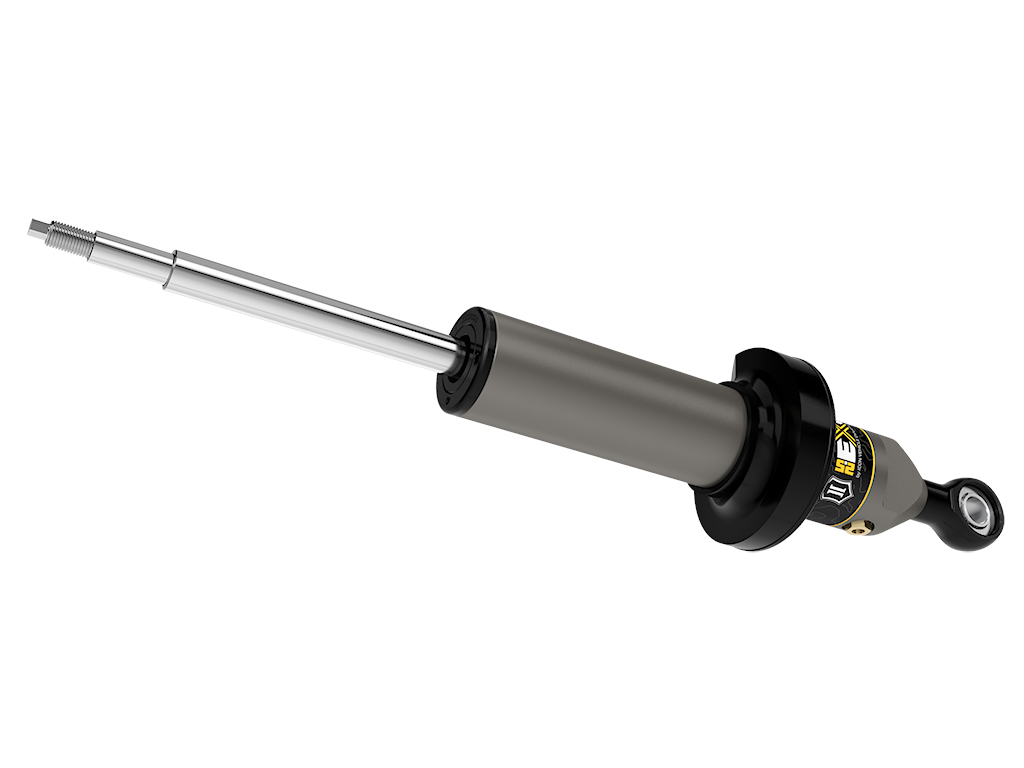

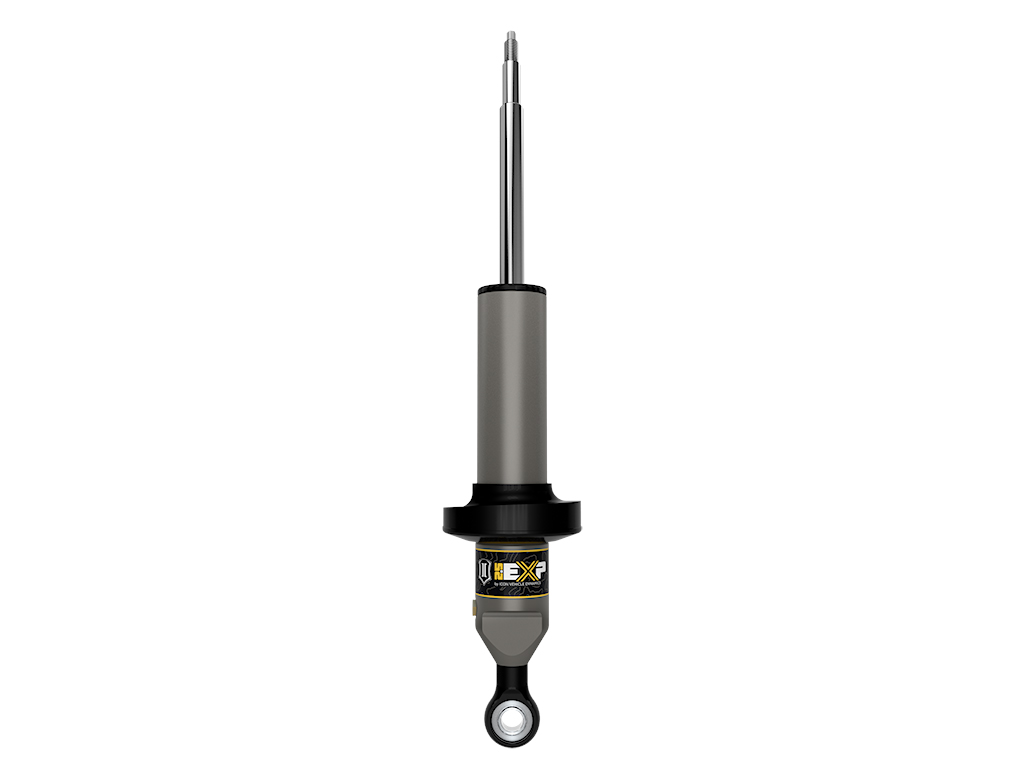

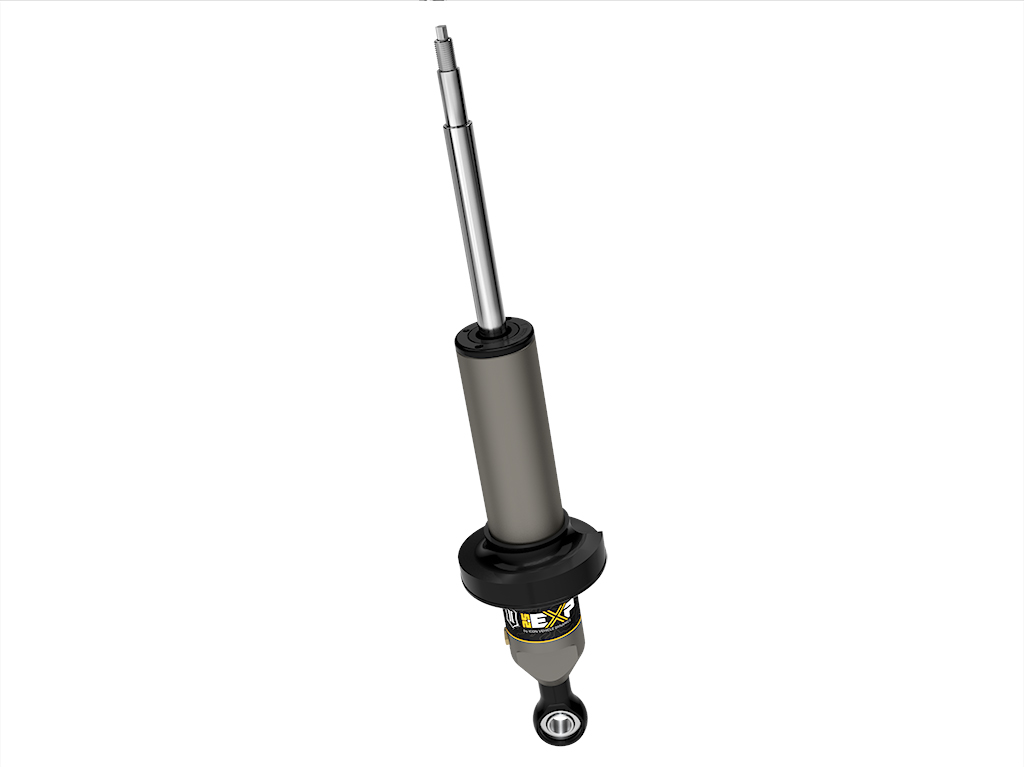

ICON Vehicle Dynamics 58671 Front 2.5 EXP Series Coilover 2022-2024 Tundra Sequoia

(2022-2023 Toyota Tundra; 2023 Toyota Sequoia)

Manufacturer

Part Number

58671
Black Friday Price

$464.06

$545.95 Save 15%

3 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ICON Vehicle Dynamics 2.5 EXP Series front coilover is engineered specifically for 2022-2024 Toyota Tundra and 2023-2024 Toyota Sequoia models, delivering premium shock performance while retaining your factory coil springs for cost-effective suspension enhancement.

Key Features:

  • Vehicle-specific design and tuning for 2022-2024 Toyota Tundra and 2023-2024 Sequoia
  • Adjustable ride height from 0-3 inches of front lift using snap ring groove system
  • 2.5-inch diameter one-piece impact-extruded aluminum shock body with hard anodized finish
  • Massive 7/8-inch diameter induction hardened and chrome plated shaft
  • Fully rebuildable and re-valvable by qualified technicians
  • Custom-tuned digressive piston design for superior damping and ride quality
  • Reuses factory coil springs, upper shock mounts, and spring hardware
  • 6061-billet aluminum coil spring seat with heavy duty urethane spring seat
  • Enhanced heat dissipation for sustained performance in demanding conditions

Performance Benefits:

The EXP Series bridges the gap between basic spacer lifts and premium threaded-body coilovers, offering adjustable suspension lift, maximum travel, and race-proven shock technology in an economical package. The larger 2.5-inch body diameter provides increased piston size and oil volume compared to factory shocks, resulting in superior heat management and consistent damping performance during extended off-road use or high-speed driving.

Factory shaft-up orientation with machined shaft ends ensures direct integration with OE mounting points. Hard anodized aluminum construction delivers excellent corrosion and abrasion resistance while maintaining a premium appearance.

Note: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Backed by a 1-year manufacturer warranty.

Products specifications

Fits

2022-2023 Toyota Tundra; 2023 Toyota Sequoia

Material

Aluminum

Recommended Aftermarket Tires

35" x 12.50" (Minor fender trimming and modifications may be required)

Adjustable Damping

NO

Upper Mount Type

Stem

Shock Absorber Rod End Measuring Point

Shoulder of Stem

Remote Reservoir

NO

Material

Steel

Maximum Lift

3

Add-On Part

55154 - 22-UP TUNDRA SWAY BAR DROP KIT

Adjustable Height

yes

Body Diameter

2.5

Shaft Diameter

0.875

Dust Shield

No

Shock Absorber Body End Measuring Point

Center of Eylet

Grade Type

Performance

Coil Over Springs Included

NO

OEM Wheels & Tires Fitment

Yes

Service Parts

252010 - 2.5 IFP REBUILD KIT

Damping Type

Oil

Lower Mount Type

Eyelet

Boot Included

No

Gas Charged

Yes

Recommended Aftermarket Wheels

17x8.5" with 5.75” Backspace / 25mm Offset
