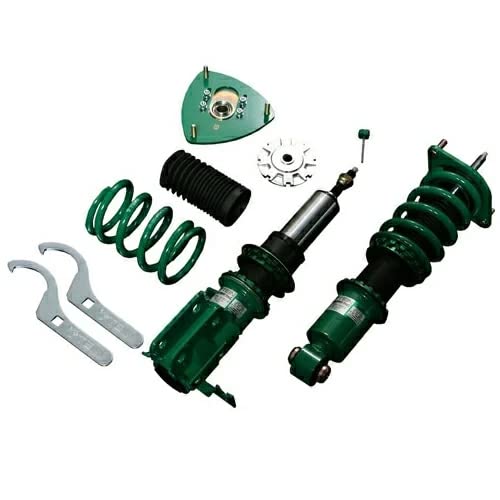

The TEIN VSAEA-K1LS4 Mono Racing Coilover Kit is a high-performance suspension system engineered specifically for drivers who frequently take their 2022+ Toyota GR86 and Subaru BRZ (ZN8/ZD8 chassis) to the race track. Based on TEIN's flagship Super Racing model and refined with extensive motorsport data from WRC and WRX competition, this track-focused coilover system delivers precision damping and handling characteristics optimized for aggressive driving.
Mono-Tube Construction for Superior Performance:
The mono-tube design completely separates the oil and gas chambers, eliminating aeration issues that plague twin-tube designs. This results in consistent, linear damping force that responds to the finest road surface changes, even during repeated aggressive track sessions. The highly-rigid Upright Strong Tube structure provides exceptional lateral stiffness required for strut-type suspensions.
Key Features:
- 16-level damping force adjustment with ADVANCE M.S.V. technology for simultaneous compression and rebound tuning
- Full-length height adjustment system maintains damper stroke length and spring preload regardless of ride height
- Camber and caster adjustable pillow ball upper mounts - stepless camber adjustment with 4-step caster adjustment
- Camber adjustable lower brackets with eccentric collars for comprehensive alignment tuning
- Compatible with TEIN EDFC systems for in-cabin electronic damping control (sold separately)
- Selectable spring rates available at purchase (+/- 2kgf/mm from standard rates at no charge)
- SAE9254 cold-formed springs with 200 kgf/mm² minimum tensile strength for exceptional durability
- TEIN's proprietary ZT Coating and 2-layer powder coating for superior corrosion resistance
Advanced Engineering:
TEIN's ADVANCE M.S.V. (Micro Speed Valve) technology combines precise micro-speed damping control with an expanded adjustment range, delivering superior steering response and traction performance. The high-specification damper oil maintains stable viscosity across a broad temperature range with excellent anti-foaming properties to resist cavitation during demanding track use.
Manufactured in TEIN's Yokohama, Japan facility, each Mono Racing coilover kit undergoes rigorous test fitting and road testing by trained suspension engineers. The system is fully rebuildable and revalvable, with custom damping force and stroke length modifications available at the time of purchase. This professional-grade suspension system bridges the gap between street-oriented coilovers and full competition setups, providing serious track enthusiasts with race-proven performance and adjustability.
