ICON Vehicle Dynamics 48612 Hoss Coilover Kit Ford Bronco Lift - 2.0 Rear 2021-2023 0-1.75

(2021-2023 Ford Bronco)

Manufacturer

Picture for manufacturer ICON Vehicle Dynamics

Part Number

48612
9 reviews
Sale Price

$535.55

4 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

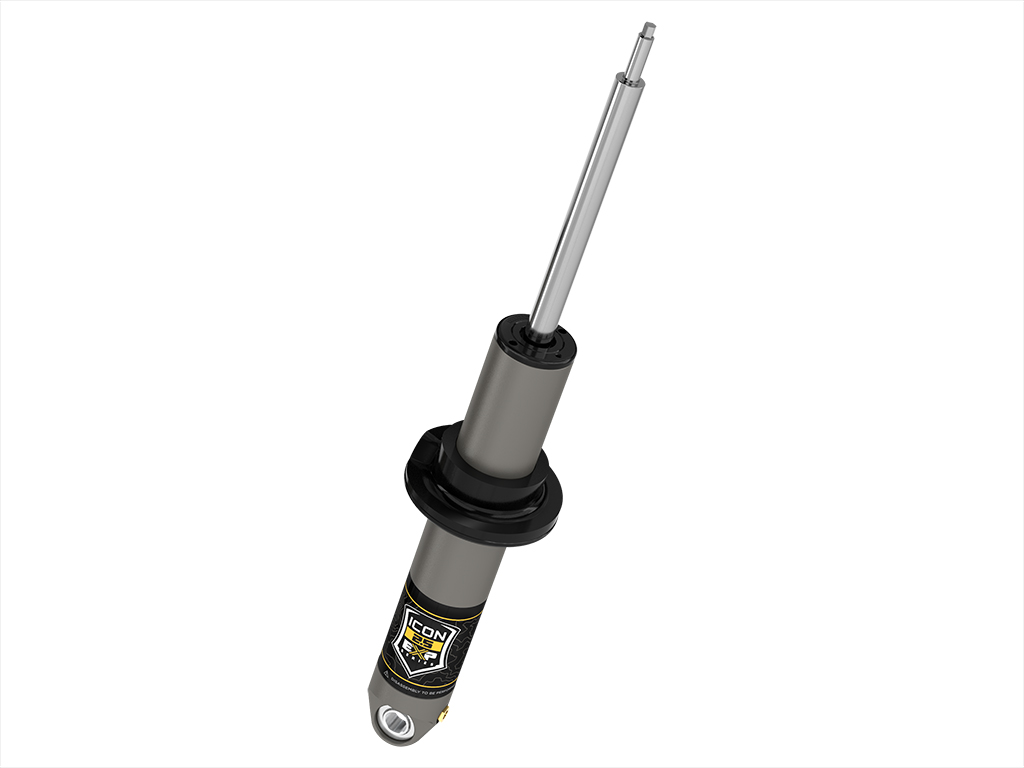

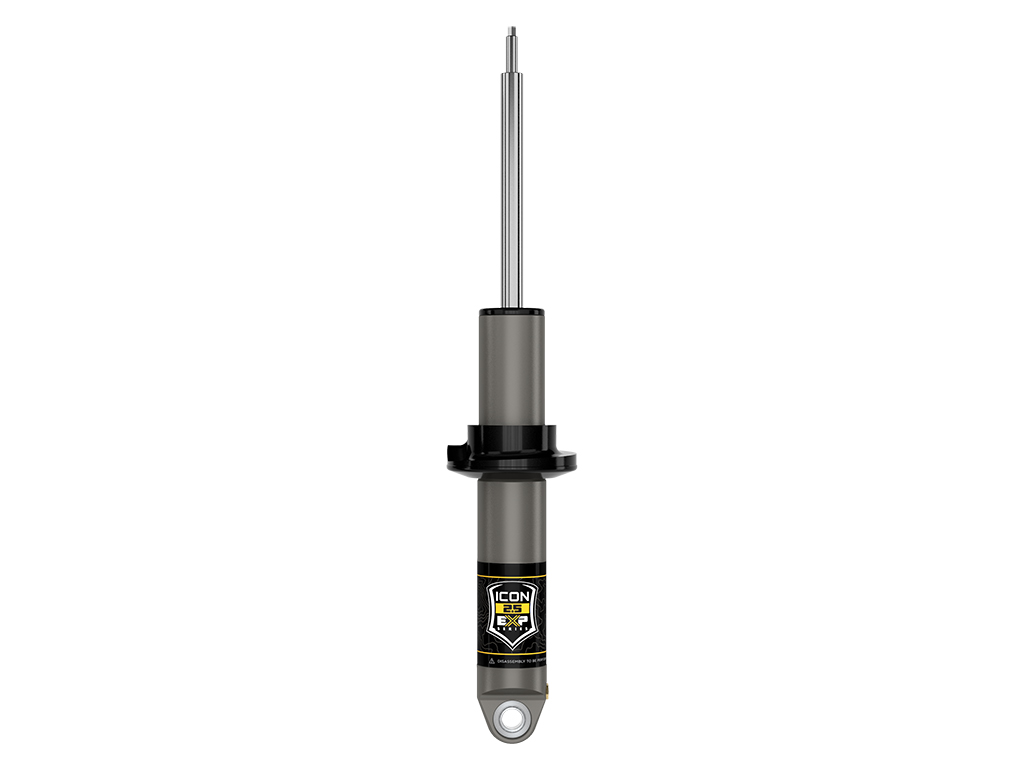

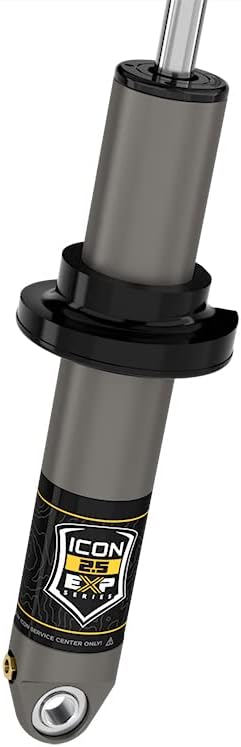

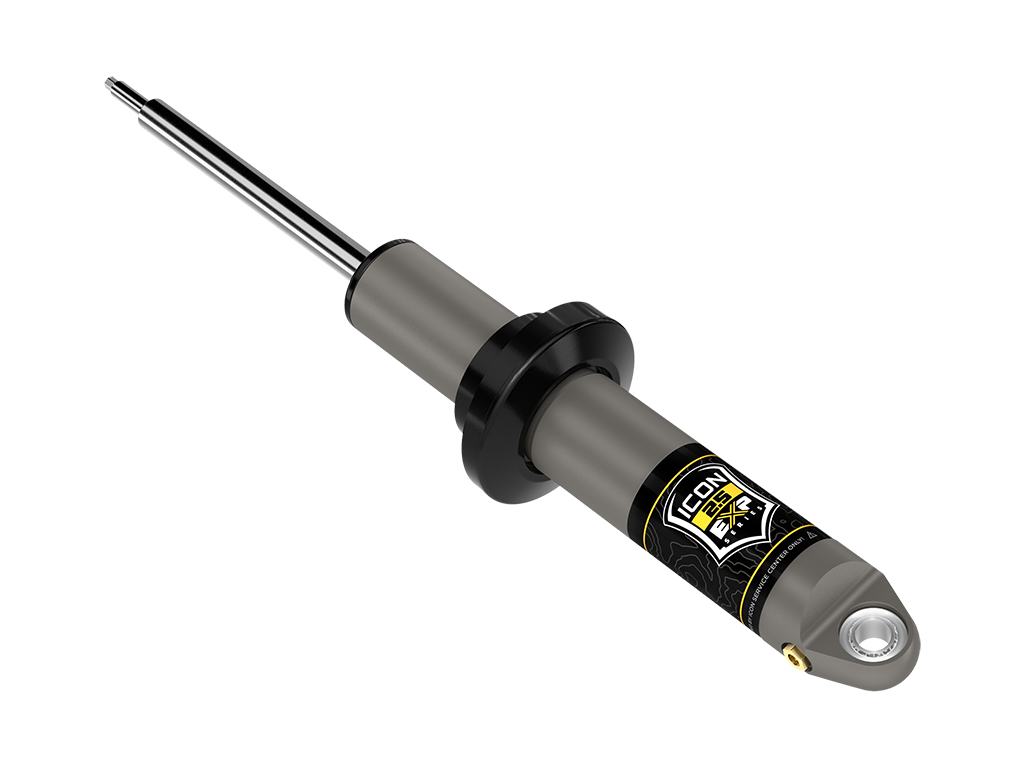

The ICON Vehicle Dynamics 48612 EXP Series rear coilover system is specifically engineered for 2021-2023 Ford Broncos equipped with the factory HOSS 2.0 suspension package. This premium upgrade combines the performance of a fully rebuildable 2.5-inch diameter shock absorber with the convenience and value of reusing your Bronco's factory coil springs and mounting hardware, delivering adjustable lift from 0 to 1.75 inches with exceptional on and off-road performance.

Key Features:

  • 2.5-inch aluminum series shock with internal reservoir for superior heat dissipation
  • One-piece impact-extruded aluminum body with hard anodized finish for corrosion and abrasion resistance
  • Massive 7/8-inch diameter induction hardened, chrome plated shaft in inverted shaft-up design
  • Adjustable ride height from 0 to 1.75 inches of lift via snap-ring grooves on shock body
  • 6061-billet aluminum coil spring seat with molded heavy duty urethane seat designed for OE coil springs
  • Custom digressive piston tuning optimized for Bronco HOSS 2.0 suspension and factory springs
  • Fully rebuildable and re-valvable by qualified technicians with parts available from ICON
  • Vehicle-specific design for Broncos with HOSS 2.0 package (identified by yellow factory shock bodies)

Compatibility:

HOSS 2.0 is Ford's upgraded suspension system found on Base, Big Bend, Outer Banks, and Black Diamond trim levels with the optional Sasquatch package, and comes standard on Badlands, Wildtrak, First Edition, and Everglades models. This kit utilizes factory coil springs and mounting hardware for straightforward installation.

The EXP Series delivers superior damping control and heat management compared to factory steel-bodied shocks, maintaining consistent performance during prolonged high-speed runs and challenging off-road terrain. Backed by a 1-year warranty.

WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Products specifications

Fits

2021-2023 Ford Bronco

Service Parts

252010 - 2.5 IFP REBUILD KIT

Recommended Aftermarket Wheels

(With Sasquatch Package): ICON Alloys | 17x8.5" with 4.75” Backspace / 0mm Offset

Coil Over Springs Included

NO

Recommended Aftermarket Tires

(Without Sasquatch Package): 35" x 12.50" (Requires high clearance crash bars, ICON part number 42000. 37" tire packages require trimming and modifications)

Shaft Diameter

0.875

Grade Type

Performance

Gas Charged

Yes

Recommended Aftermarket Wheels

(Without Sasquatch Package): ICON Alloys | 17x8.5" with 4.75” Backspace / 0mm Offset

Dust Shield

No

Upper Mount Type

Mounting Plate

Maximum Lift

3

Body Diameter

2.5

Recommended Aftermarket Tires

(With Sasquatch Package): 35" x 12.50" (37" tire packages may require fender trimming and modifications)

Remote Reservoir

NO

Shock Absorber Body End Measuring Point

Top of Upper Mount Plate

Boot Included

No

Material

Aluminum

Adjustable Height

yes

Lower Mount Type

Bar Pin

Shock Absorber Rod End Measuring Point

Flat on Bar Pin

Recommended Aftermarket Wheels

(With Sasquatch Package): ICON Alloys | 20x9" with 5.00” Backspace / 0mm Offset

Spring Rate Type

Linear

Damping Type

Oil

Material

Steel

OEM Wheels & Tires Fitment

Yes

Recommended Aftermarket Wheels

(With Sasquatch Package): ICON Alloys | 18x9" with 5.00” Backspace / 0mm Offset

Spring Material

Steel

Adjustable Damping

NO

Spring Color

Black
