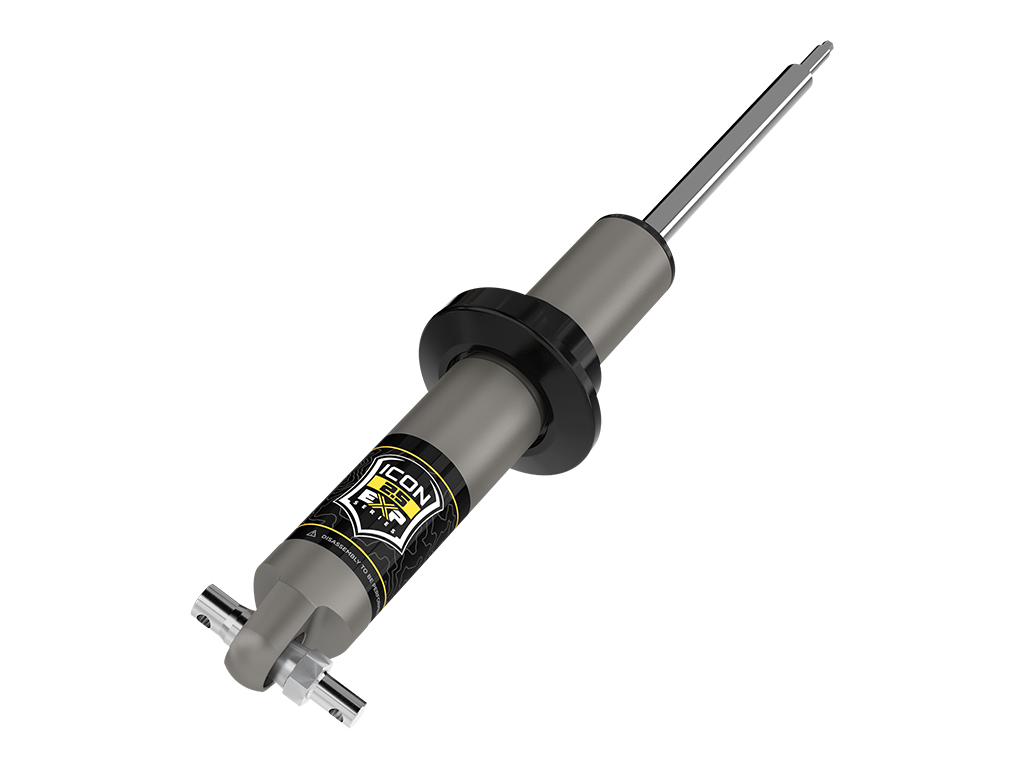

ICON Vehicle Dynamics 48602 Front Coilover Kit 0-2" Lift 2021-2023 Ford Bronco HOSS 2.0

Manufacturer

Picture for manufacturer ICON Vehicle Dynamics

Part Number

48602
7 reviews
Sale Price

$535.55

3 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ICON Vehicle Dynamics 48602 EXP Series front coilover system combines the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Ford Bronco's factory coil spring and components. This system bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel in an economical package.

Key Features:

  • Vehicle-specific design for 2021-2023 Ford Bronco with HOSS 2.0 Suspension Package
  • 2.5-inch aluminum series shock with internal reservoir and custom valving
  • Adjustable ride height from 0" to 2" of lift using snap-ring groove system
  • Inverted shaft-up design featuring 7/8" diameter induction hardened, chrome plated shaft
  • One-piece impact-extruded aluminum shock body with hard anodized finish
  • Utilizes factory coil springs and mounting hardware
  • 6061-billet aluminum coil spring seat with molded heavy duty urethane insert
  • One-piece digressive piston design custom tuned for Bronco
  • Fully rebuildable and re-valvable by qualified technicians

Performance Benefits:

The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body deliver superior heat dissipation compared to smaller, steel bodied OE shocks, resulting in longer-lasting performance during prolonged use at higher speeds and through rougher terrain. Custom tuning maximizes damping performance and provides unsurpassed ride quality both on-road and off-road.

Compatibility Note:

HOSS 2.0 is Ford's upgraded suspension system for Broncos of the Base, Big Bend, Outer Banks and Black Diamond trim levels WITH the optional Sasquatch package, and is standard on Badlands, Wildtrak, First Edition and Everglades models. HOSS 2.0 is identified by the yellow shock bodies of the OE shocks.

What's Included: Front coilover pair with billet aluminum coil spring seats and urethane inserts. Reuses factory coil springs and mounting hardware.

Warranty: 1 Year

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Products specifications

Fits

2021-2023 Ford Bronco

Remote Reservoir

NO

Coil Over Springs Included

NO

Spring Color

Black

Lower Mount Type

Bar Pin

Shock Absorber Body End Measuring Point

Top of Upper Mount Plate

Recommended Aftermarket Wheels

(With Sasquatch Package): ICON Alloys | 18x9" w/ 5" Backspace / 0mm Offset

Add-On Part

42000 - 21-UP BRONCO HIGH CLEARANCE CRASH BAR KIT

Recommended Aftermarket Tires

(With Sasquatch Package): 35" x 12.50" (37" tire packages may require fender trimming and modifications)

Adjustable Height

yes

Spring Material

Steel

OEM Wheels & Tires Fitment

Yes

Recommended Aftermarket Wheels

(Without Sasquatch Package): ICON Alloys | 17x8.5" w/ 5.75" Backspace / 25mm Offset

Boot Included

No

Damping Type

Oil

Shock Absorber Rod End Measuring Point

Flat on Bar Pin

Adjustable Damping

NO

Dust Shield

No

Recommended Aftermarket Wheels

(With Sasquatch Package): ICON Alloys | 17x8.5" w/ 4.75" Backspace / 0mm Offset

Service Parts

252010 - 2.5 IFP REBUILD KIT

Add-On Part

611082 - EXP 1" SHAFT BUMP EXTENSION

Material

Aluminum

Shaft Diameter

0.875

Body Diameter

2.5

Grade Type

Performance

Recommended Aftermarket Tires

(Without Sasquatch Package): 35" x 12.50" (Requires high clearance crash bars, ICON part number 42000. 37" tire packages require trimming and modifications)

Recommended Aftermarket Wheels

(With Sasquatch Package): ICON Alloys | 20x9" w/ 5" Backspace / 0mm Offset

Material

Steel

Gas Charged

Yes

Spring Rate Type

Linear

Upper Mount Type

Mounting Plate

Maximum Lift

3
