ICON Vehicle Dynamics 48601 Hoss Coilover Kit Ford Bronco Lift - 1.0 Front 2021-2023 1.375-3

The ICON Vehicle Dynamics 48601 EXP Series Front Coilover Kit delivers premium suspension performance for 2021-2023 Ford Bronco models equipped with the HOSS 1.0 suspension package. This engineered solution bridges the gap between basic spacer lifts and full coilover systems, providing adjustable lift heights from 1.375 to 3 inches while reusing factory coil springs and hardware for a cost-effective upgrade.

Key Features:

• Vehicle-specific design for 2021-2023 Ford Bronco with HOSS 1.0 suspension (Base, Big Bend, Outer Banks, and Black Diamond trims without Sasquatch package)

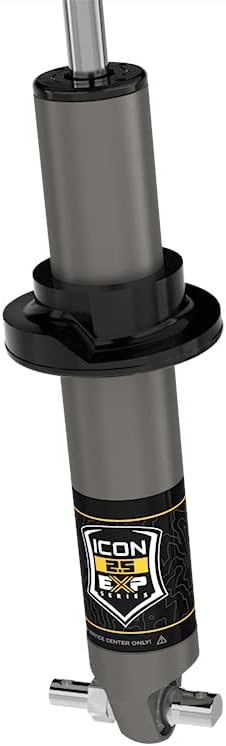

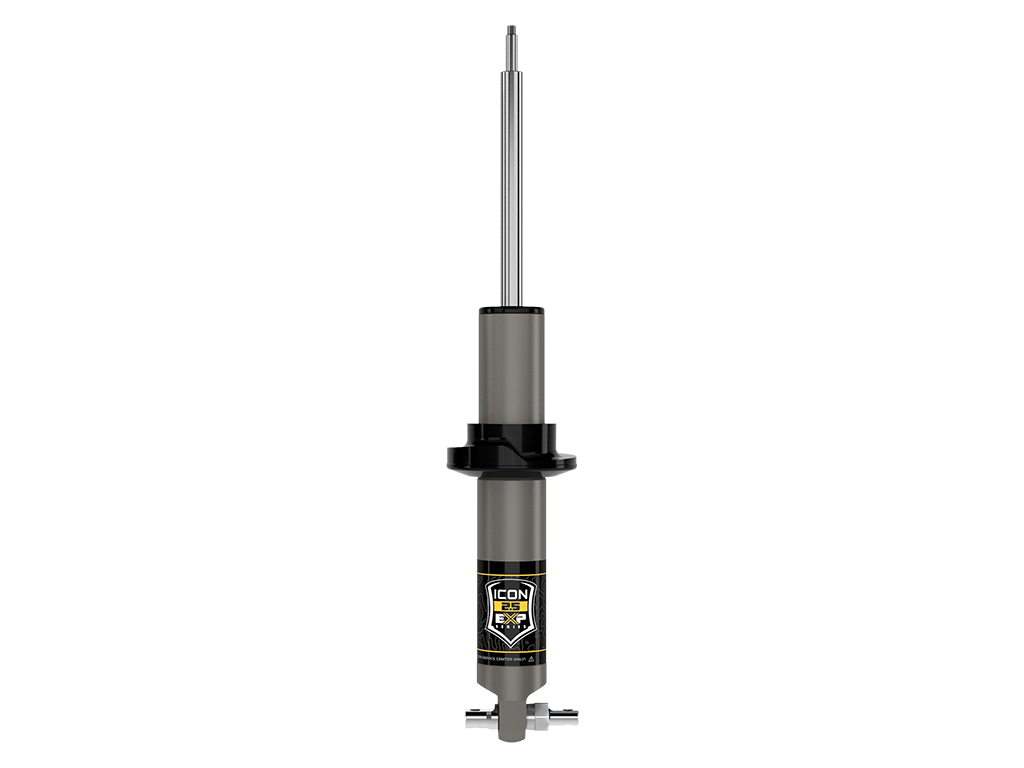

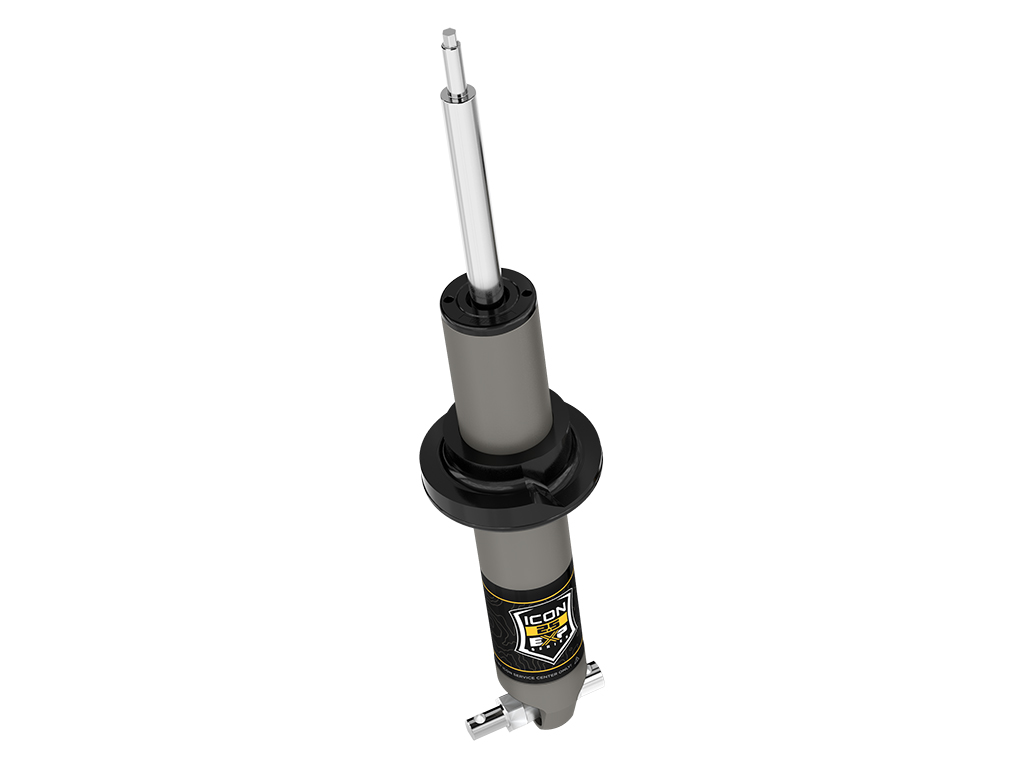

• 2.5-inch diameter aluminum series shock absorber with internal reservoir for superior heat dissipation
• One-piece impact-extruded 6061 aluminum shock body with hard anodized finish for abrasion and corrosion resistance
• Inverted shaft-up design featuring massive 7/8-inch diameter induction hardened, chrome-plated shaft
• Adjustable ride height from 1.375 to 3 inches via snap-ring grooves machined into shock body
• CNC-machined 6061-billet aluminum coil spring seat compatible with factory coil springs and mounting hardware
• Custom-tuned digressive piston valving optimized for Bronco with OE coil springs
• Fully rebuildable and re-valvable design for long-term serviceability

ICON's EXP Series shocks are custom-tuned specifically for the Ford Bronco to maximize damping performance and deliver exceptional ride quality both on-road and off-road. The larger 2.5-inch shock body provides significantly greater oil volume and piston surface area compared to factory steel-bodied shocks, resulting in superior heat management during extended high-speed runs and rough terrain use. The shaft ends are precisely machined to integrate with Bronco's OE upper shock and spring mounts for straightforward installation.

Compatibility Note: HOSS 1.0 is Ford's base suspension system, most easily identified by the black shock bodies on OE shocks. This kit is designed specifically for Broncos with HOSS 1.0 and will not fit models equipped with the Sasquatch package.

Warranty: 1 Year

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
