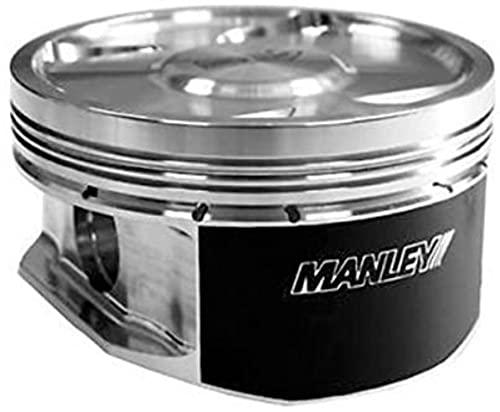

Manley 599520C-6 Platinum Series Forged Piston Set 3.780" Bore -5cc Dish Ford 3.7L Cyclone

The Manley 599520C-6 Platinum Series pistons are forged from high-strength 2618 alloy, engineered specifically for Ford 3.7L Cyclone V6 engines. These pistons feature a 3.780" bore, 1.239" compression distance, and -5cc dish design that delivers a 9.5:1 compression ratio, making them ideal for performance street and mild forced induction applications.

Key Features:

• Moly coated skirts for enhanced durability and reduced friction
• Offset wrist pin design for quiet start-ups and perfect ring groove to skirt squareness
• 1.2, 1.5, 2.5mm Total Seal ring package included
• Premium 4130 Chrome Moly wrist pins with round wire locks included
• +1mm oversize valve pockets accommodate larger performance valves
• Pressure balance grooves included as standard
• Lightweight 428 gram design per piston

Manley's unique "one fixturing" manufacturing method ensures perfect ring groove to skirt squareness for maximum horsepower. Designed for use with 6.011" rod length and 3.413" stroke, these pistons require connecting rods with .9055"/23mm diameter floating wrist pins. This set includes six pistons with rings, pins, and locks.
