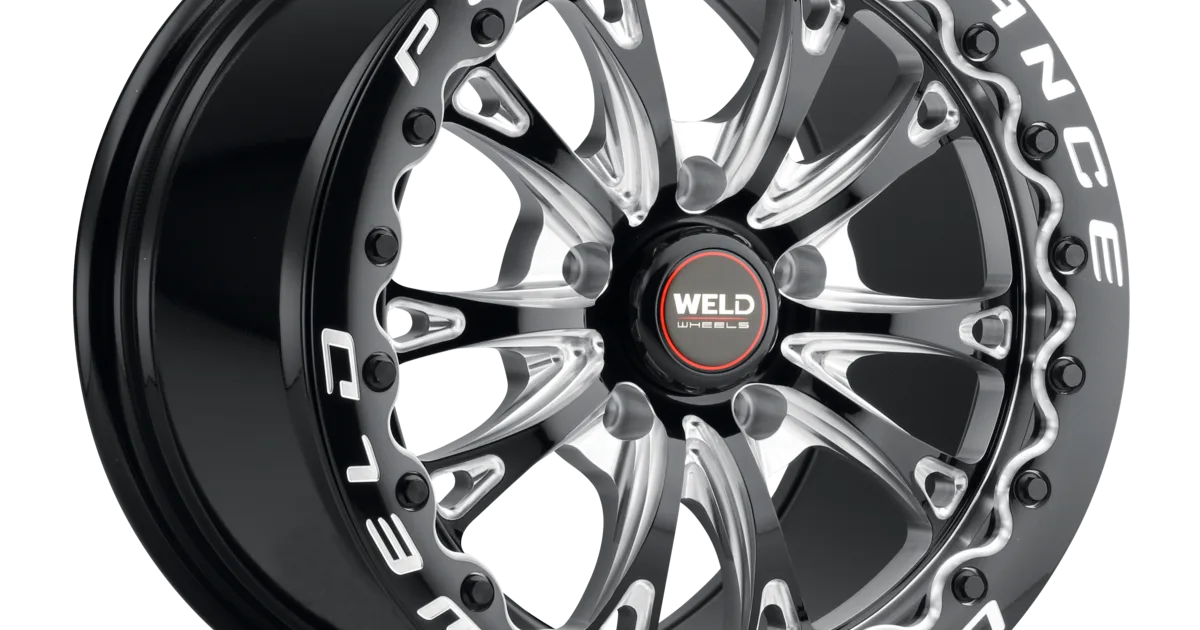

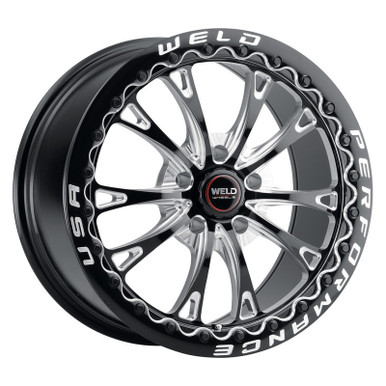

Weld Racing Wheels S90870045P40 Belmont Beadlock Drag Wheel 17x10 5x112

The Weld Racing Belmont Beadlock Drag Wheel combines high-performance engineering with functional beadlock technology for serious drag racing applications. This rotary forged wheel features a one-piece monoblock construction that delivers exceptional rigidity while minimizing weight, making it ideal for high-horsepower vehicles seeking faster quarter-mile and eighth-mile times.

Key Specifications:

• Size: 17x10 inches
• Bolt Pattern: 5x112mm
• Offset: +40mm (ET40)
• Backspacing: 7.1 inches
• Hub Bore: 78.1mm
• Load Rating: 1,600 lbs
• Weight: 26 lbs per wheel

Design and Construction:

• Rotary forged aluminum construction for superior strength-to-weight ratio
• 6061 forged beadlock ring with Heli-Coil thread inserts for secure tire mounting
• Five-spoke design with exposed lugs
• Gloss black finish with milled spoke windows
• Mirror polished lip with clear coat protection
• One-piece monoblock construction

Engineered specifically for drag racing enthusiasts, the Belmont Beadlock features true beadlock technology that prevents tire bead separation during hard launches and high-torque applications. The rotary forming process used in manufacturing creates a wheel that is both lighter and stronger than traditional cast alternatives, improving acceleration, braking response, and overall handling performance.

Note: This wheel requires 60-degree conical seat lug nuts (typically M14 x 1.5). Factory lug nuts may not fit properly and should not be used.
