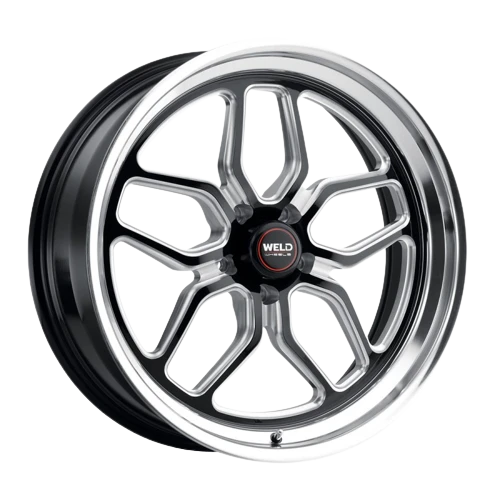

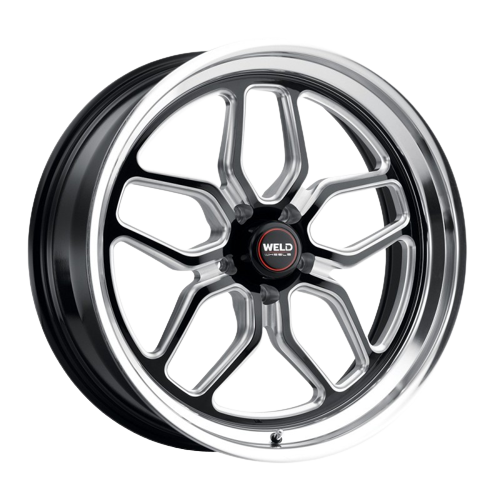

Weld Racing Wheels S10822073675 Laguna 22x12 Rotary Forged Wheel 5x127

The Weld Racing Laguna S107 is a high-performance rotary forged wheel designed for trucks and SUVs that demand aggressive styling combined with lightweight strength. This 22x12 inch wheel features a 5x127mm (5x5") bolt pattern with a +6mm offset and 6.75-inch backspacing, engineered specifically for vintage truck applications and modern builds requiring deep concavity.

Rotary Forging Technology: The Laguna utilizes Weld's proprietary rotary forging process, which delivers forged-level performance at a more accessible price point. This manufacturing method produces wheels that are significantly lighter and stronger than cast alternatives, making them ideal for high-power street applications and spirited driving.

Key Specifications:

• Size: 22 inches diameter x 12 inches width
• Bolt Pattern: 5x127mm (5x5")
• Offset: +6mm
• Backspacing: 6.75 inches
• Hub Bore: 78.1mm
• Load Rating: 1900 lbs per wheel
• Construction: One-piece rotary forged aluminum
• Finish: Gunmetal with polished lip
• Exposed lug design

Design and Construction: Crafted from high-grade aluminum alloy at Weld's 140,000 square-foot facility in Kansas City, Missouri, each Laguna wheel undergoes rigorous testing before leaving the factory. The multi-spoke mesh design provides a classic aesthetic that complements both vintage and modern truck builds, while the gunmetal finish with polished lip adds depth and visual impact.

Racing Heritage: Weld Racing has been engineering performance wheels since 1967, with a proven track record in professional drag racing including partnerships with NHRA champions. The same engineering principles used in wheels proven to over 330 mph are applied to every street wheel Weld produces, ensuring uncompromising quality and reliability.

Important Installation Notes: Weld wheels require 60-degree conical seat lug nuts (typically M14 x 1.5). Factory lug nuts from most trucks will not properly seat on these wheels. Using incorrect hardware creates a safety hazard and may damage the wheel finish—aftermarket conical seat lug nuts are required for proper installation.

Backed by Weld's manufacturer warranty, the Laguna delivers the perfect combination of show-quality appearance and race-proven performance for discerning truck enthusiasts.
