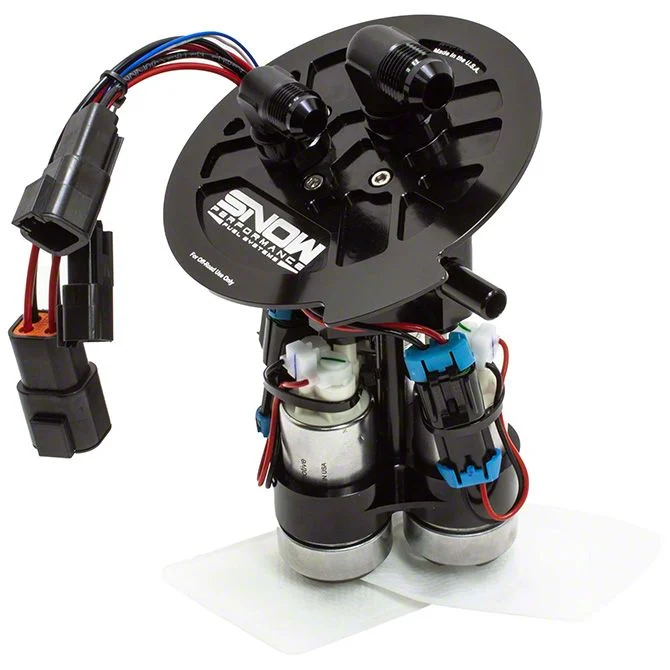

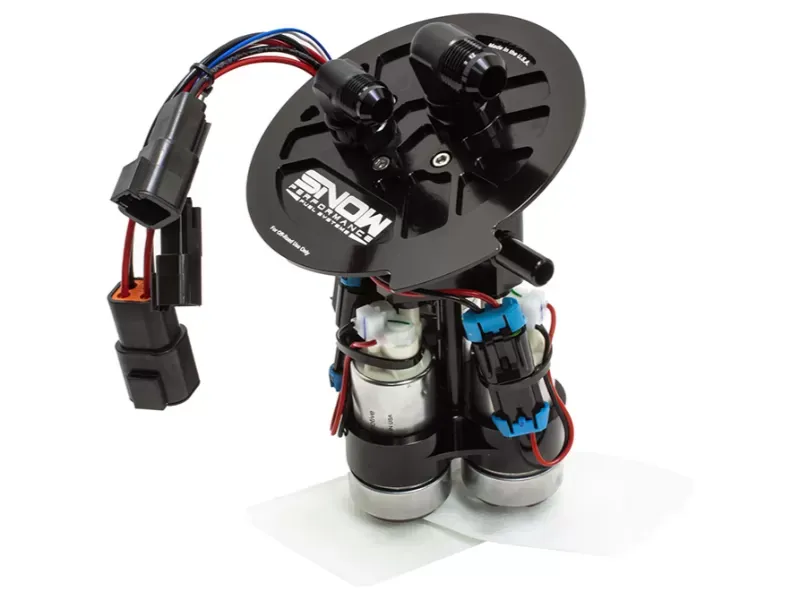

Snow Performance SNF-52601R Billet Fuel Hat Triple Pump Race Version 2011+ Mustang GT

The Snow Performance SNF-52601R is a premium billet aluminum fuel hat assembly designed specifically for 2011-2023 Ford Mustang GT applications demanding maximum fuel delivery performance. This race-spec configuration features three TI Automotive (Walbro) F90000285 high-flow fuel pumps, each flowing 470 liters per hour at 40 PSI, providing the ultimate in fuel system capacity for extreme horsepower builds.

Race Version Triple Pump Configuration:

• Three genuine TI Automotive F90000285 pumps (3x 470 LPH)
• Capable of supporting 1,600+ rear wheel horsepower on E85 fuel
• Supports up to 2,100+ rear wheel horsepower on gasoline
• Maximum flow configuration designed for all-out race applications
• CNC machined from 6061 billet aluminum for exceptional strength

Premium Construction Features:

• Black anodized finish provides superior corrosion resistance and durability
• Precision CNC machined internal passages optimize fuel flow
• Viton chemical-resistant O-rings guarantee leak-free performance
• Eliminates failure-prone hose clamps, rubber lines, and T-fittings
• Female 10 AN ORB feed port and 8 AN ORB return port
• Compatible with gasoline, E85, ethanol blends, and race fuels

Direct Replacement Design:

• Completely replaces factory fuel hat/bucket assembly
• Retains OEM fuel level sending unit functionality
• Maintains factory EVAP system integration
• Preserves fuel transfer pump function on saddle-style tanks
• Integrated 10-micron pre-filter feeds all three pumps without requiring full submersion

Engineered, CNC machined, and built in the USA, this Snow Performance fuel hat represents the pinnacle of high-output fuel system upgrades. The race version is engineered for maximum effort and flow, making it ideal for drag racing, road racing, and extreme street builds where fuel delivery cannot be compromised. Note that 90-degree swivel adapter fittings are sold separately to adapt to your specific fuel line configuration.
