Snow Performance SNF-30012F Factory Hookup Billet Fuel Rail Kit for 2011-2017 Coyote (Pair)

Snow Performance fuel rails are designed and built in the USA from the highest quality components, CNC machined for a perfect fit, and anodized in black for premium looks and corrosion resistance. These fuel rails are engineered to fit 2011-2017 Mustang and F-150 vehicles equipped with Coyote intake manifolds, including all Coyote truck manifolds.

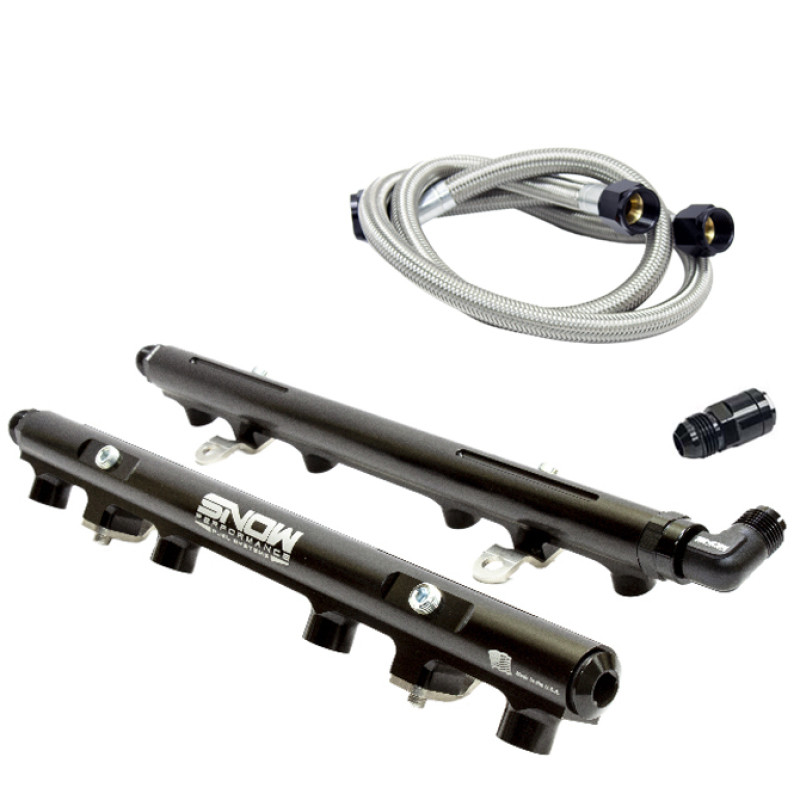

Complete Kit Includes:

• Two billet aluminum fuel rails
• Four 1/8-NPT plugs for custom sensor or gauge installation
• Two 8AN inlet/outlet fittings
• One 8AN ORB plug
• Mounting brackets designed for factory height Coyote injectors
• 8AN to 8AN ORB 90-degree swivel fitting
• 8AN to 3/8-inch (10mm) fuel line adapter
• 8AN PTFE fuel feed hose
• Pre-made 8AN PTFE crossover hose

Rails are designed to work with stock height injectors (60mm), though shorter injectors can be used with Snow Performance injector spacers (sold separately) to achieve the proper 60mm mounting height. This Factory Hookup kit is designed for factory-style fuel systems and provides a professional, leak-free solution for high-performance fuel delivery on Coyote-powered engines.
