ICON Vehicle Dynamics K40015 Stage 5 Suspension System 2-3 Inch Lift with Billet Upper Control Arms for 2021-2023 Ford Bronco Sasquatch

Manufacturer

Part Number

K40015
Sale Price

$6,395.83

1 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ICON Vehicle Dynamics Stage 5 Suspension System transforms your 2021-2023 Ford Bronco Sasquatch into a high-performance off-road machine. This comprehensive suspension upgrade features precision-manufactured, custom-valved remote reservoir coilover shocks that deliver maximum suspension travel, superior ride quality, and exceptional performance both on and off-road.

Complete System Features:

  • Adjustable coilovers provide 2-3 inches of front lift and 1.25-2.25 inches of rear lift on 4-door Broncos with Sasquatch Package
  • Vehicle-specific tuned 2.5-inch remote reservoir coilover shocks front and rear for superior damping and control
  • Billet aluminum upper control arms with on-vehicle caster and camber adjustability
  • Patented Delta Joint PRO technology with up to 90 degrees of total articulation
  • Billet aluminum rear lower suspension links with on-vehicle length adjustment and replaceable rock skids
  • Unique triple-rate coil springs for optimal rear suspension travel and ride quality
  • Up to 11.5 inches of front suspension travel and 14 inches of rear suspension travel with 35x12.50 tires

Premium Construction:

  • 6061 aircraft-grade aluminum CNC machined components
  • Corrosion-resistant CAD plated coilover shock bodies with 7/8-inch diameter shafts
  • PTFE-lined spherical bearings and application-specific mounting hardware
  • Dual-durometer greaseless bushings and massive FK rod ends on rear links
  • High-strength alloy CNC machined lower bar pins

Performance Benefits:

  • Remote reservoirs greatly increase shock oil volume and heat dissipation to prevent damper fade during hard use
  • Improved rear suspension articulation with enhanced ground clearance
  • Compatible with 35-inch tires standard; can accommodate 37-inch and larger tires with optional up-travel limiters (sold separately)
  • 100% bolt-on system with no drilling, cutting, or welding required
  • Fully serviceable shocks for long-term performance

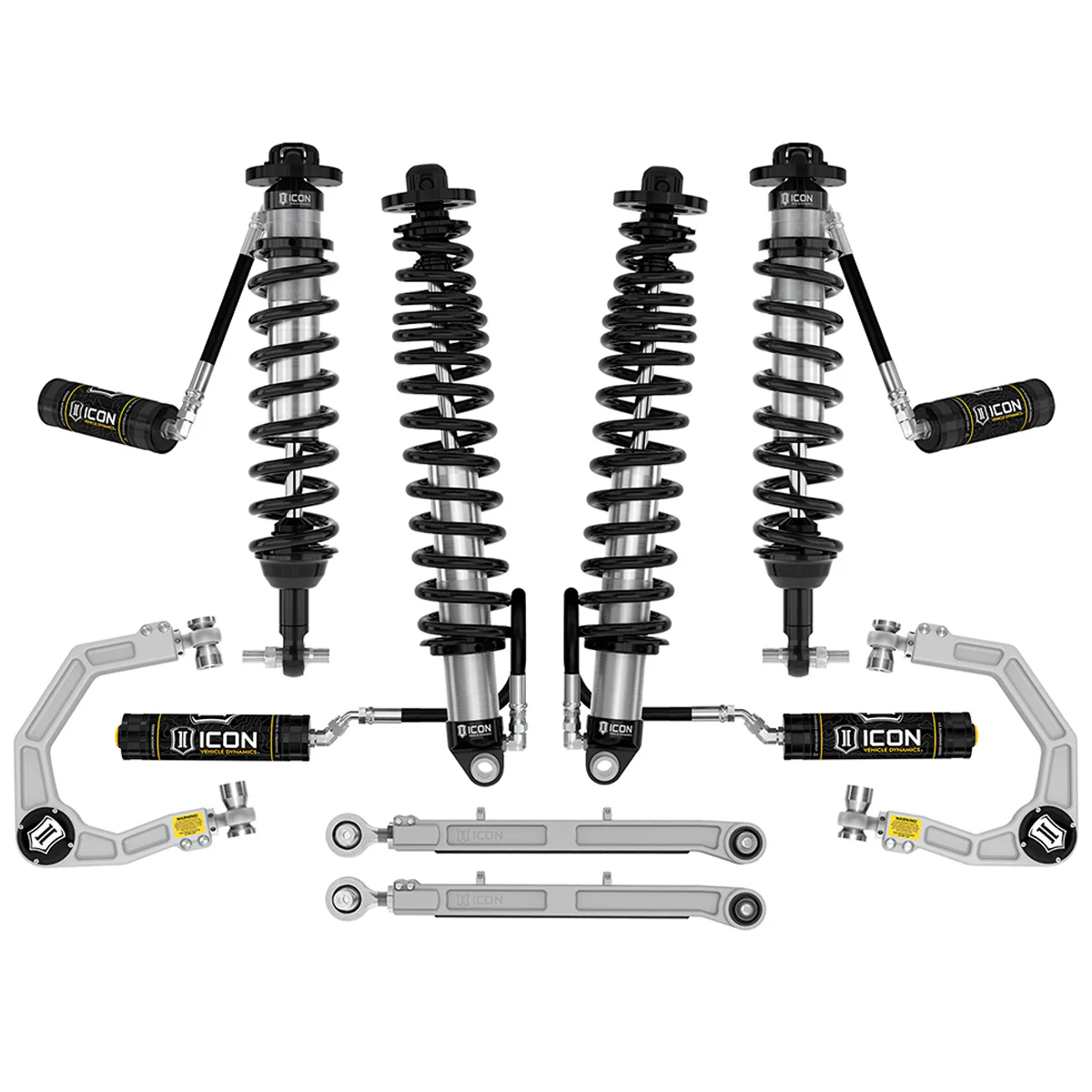

This Stage 5 kit includes front coilover kit (48700), rear coilover kit (48710), billet upper control arms with Delta Joint PRO (48500DJ), and billet rear lower link kit (44000). The triple-rate rear coil design is optimized for near-stock weight Broncos to deliver the best combination of ride quality and suspension performance.

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Products specifications

Fits

2021-2023 Ford Bronco

Coils Quantity Front

2

Shocks Included

Yes

Rear Spring Rate Type

Progressive Triple Rate

Add-On Part

191014 - .25" COLLAR SPANNER PIN WRENCH

Add-On Part

611074 - C/O BUMP STOP SPACER KIT 7/8" SHAFT 3/8" TALL

Spring Material

Steel

Bushings Included

Yes

Mounting Hardware Included

Yes

Spring Color

Black

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5" w/ 4.75” BS / 0mm Offset

Coil Spring End 2 Type

Square

Add-On Part

198001 - BILLET SPANNER WRENCH KIT

Add-On Part

191013 - NIPPLE GREASING ADAPTER KIT

Recommended Aftermarket Tires

35" x 12.50" (37" tires require coilover bump stop spacers along with minor trimming)

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Recommended Aftermarket Wheels

ICON Alloys | 20x9" w/ 5" Backspace / 0mm Offset

Maximum Lift

3

OEM Wheels & Tires Fitment

Yes

Recommended Aftermarket Wheels

ICON Alloys | 18x9" w/ 5" Backspace / 0mm Offset

Grade Type

Performance

Add-On Part

252012 - -4 TO -10 HOSE SHIELD KIT

Coil Spring End 1 Type

Square

Front Spring Rate Type

Linear

Add-On Part

611075 - C/O BUMP STOP SPACER KIT 7/8" SHAFT 1/2" TALL

Coils Quantity Rear

2
