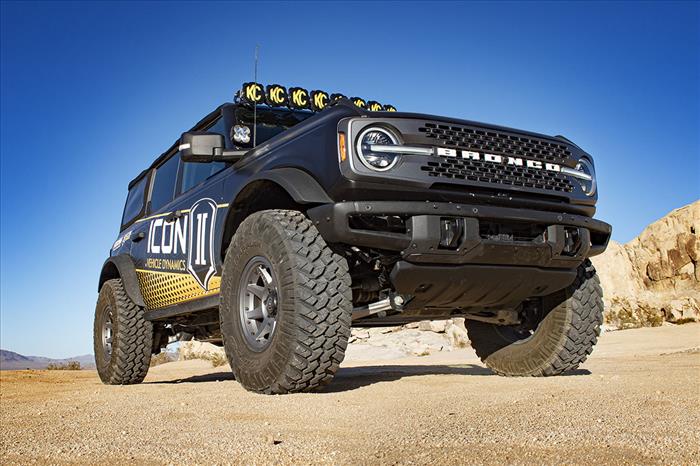

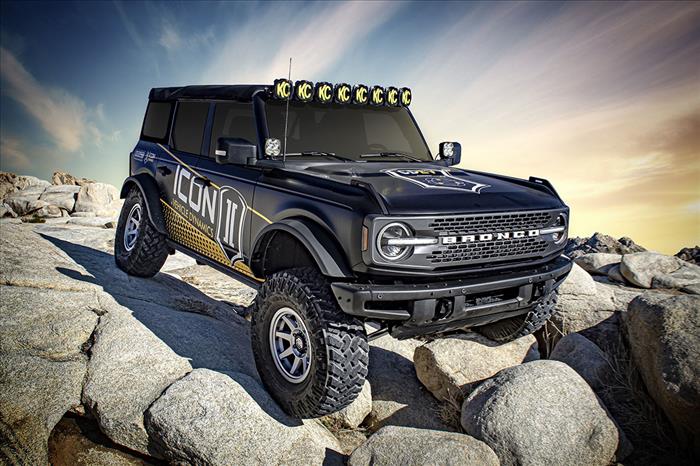

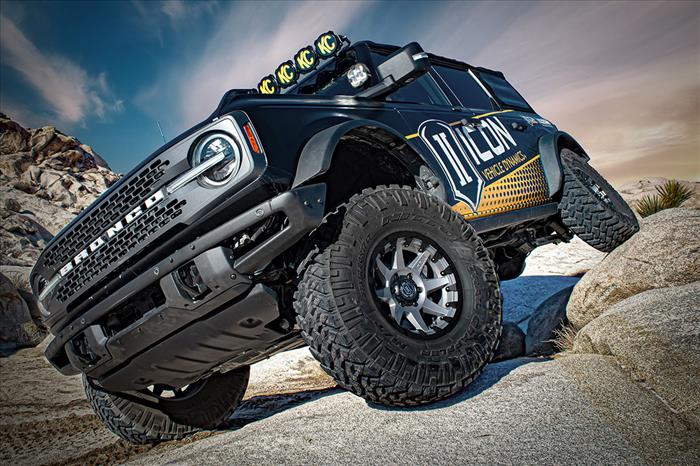

ICON Vehicle Dynamics K40013T Stage 3 Suspension System 2-3" Lift Tubular UCA Ford Bronco Sasquatch

(2021-2023 Ford Bronco)

Manufacturer

Picture for manufacturer ICON Vehicle Dynamics

Part Number

K40013T
8 reviews
Sale Price

$4,361.77

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

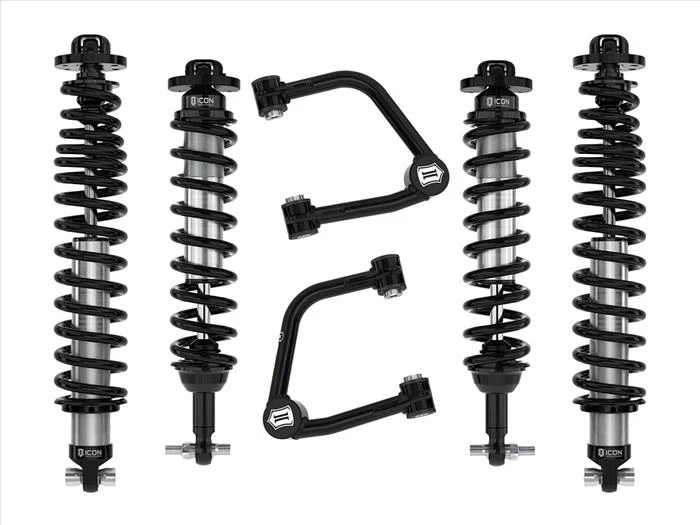

The ICON Vehicle Dynamics Stage 3 Suspension System transforms your 2021-2023 Ford Bronco Sasquatch with precision-engineered 2.5-inch diameter internal reservoir coilover shocks that deliver exceptional suspension travel, ride quality, and control both on and off-road. This complete bolt-on system provides adjustable lift height of 2-3 inches in the front and 1.25-2.25 inches in the rear over stock 4-door Sasquatch-equipped Broncos.

Key Features:

  • Custom valved 2.5-inch internal reservoir coilovers with vehicle-specific tuning for superior damping and control
  • Up to 11.5 inches of front suspension travel and 14 inches of rear travel with 35-inch tire fitment
  • Tubular upper control arms with patented Delta Joint PRO featuring 90 degrees of total articulation (U.S. Patent 10,731,700)
  • ICON-engineered coil springs with unique triple-rate rear design optimized for improved performance and ride quality
  • Corrosion-resistant CAD-plated coilover bodies with 7/8-inch diameter shafts
  • 6061 aircraft-grade aluminum CNC-machined components with PTFE-lined spherical bearings
  • Fully rebuildable and serviceable shocks for long-term durability
  • 100% bolt-on installation with no drilling, cutting, or welding required

The rear shocks are oriented shaft-up with triple-rate coil springs to maximize rear suspension travel and deliver optimal ride quality. The included tubular upper control arms provide necessary caster correction to maintain proper alignment geometry at lifted heights. Recommended for use with 35x12.50-inch tires; 37-inch and larger tires require optional up-travel limiters and minor trimming. System is optimized for near-stock weight Broncos.

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Products specifications

Fits

2021-2023 Ford Bronco

Coil Spring End 2 Type

Square

Front Spring Rate Type

Linear

Grade Type

Performance

Add-On Part

198001 - BILLET SPANNER WRENCH KIT

Add-On Part

611074 - C/O BUMP STOP SPACER KIT 7/8" SHAFT 3/8" TALL

Mounting Hardware Included

Yes

Recommended Aftermarket Wheels

ICON Alloys | 20x9" w/ 5" Backspace / 0mm Offset

Add-On Part

191013 - NIPPLE GREASING ADAPTER KIT

Shocks Included

Yes

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Coils Quantity Rear

2

Add-On Part

611075 - C/O BUMP STOP SPACER KIT 7/8" SHAFT 1/2" TALL

Coils Quantity Front

2

Maximum Lift

3

Add-On Part

191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)

Spring Material

Steel

Recommended Aftermarket Tires

35" x 12.50" (37" tires require coilover bump stop spacers along with minor trimming)

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5" w/ 4.75" Backspace / 0mm Offset

Rear Spring Rate Type

Progressive Triple Rate

Coil Spring End 1 Type

Square

OEM Wheels & Tires Fitment

Yes

Bushings Included

Yes

Recommended Aftermarket Wheels

ICON Alloys | 18x9" w/ 5" Backspace / 0mm Offset

Spring Color

Black
