ICON Vehicle Dynamics K40003T Stage 3 Suspension System 3-4" Lift Tubular UCA 21-23 Bronco Non-Sasquatch

(2021-2023 Ford Bronco)

Manufacturer

Part Number

K40003T
Sale Price

$3,707.50

4 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

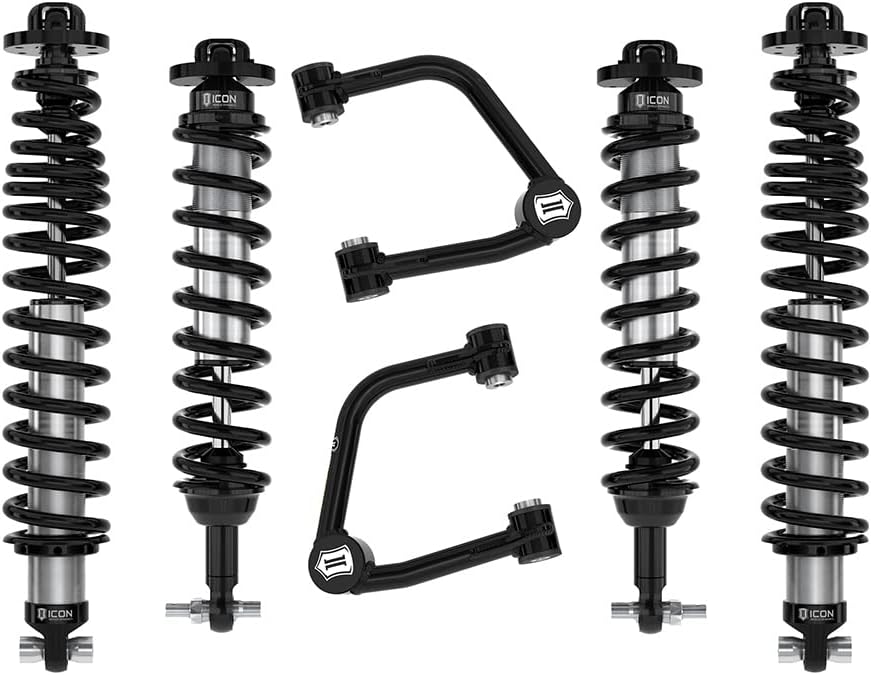

The ICON Vehicle Dynamics Stage 3 Suspension System is a complete performance upgrade for 2021-2023 Ford Bronco 4-door models without the Sasquatch Package. This comprehensive system features precision-manufactured, custom-valved internal reservoir coilover shocks that deliver superior damping, vehicle control, and ride quality both on and off-road while providing 3-4" of front lift and 2-3" of rear lift over stock.

Key Features:

  • Vehicle-specific tuned internal reservoir front and rear shocks for superior damping and control
  • Up to 11.5" front and 14" rear wheel travel with 35" tire fitment
  • Tubular upper control arms with caster correction and patented Delta Joint PRO technology allowing up to 90 degrees of freedom of movement
  • Rear shocks oriented shaft-up with unique triple-rate coil springs for maximum travel and ride quality
  • 6061 aircraft-grade aluminum CNC machined components for strength and weight savings
  • PTFE-lined spherical bearings with application-specific mounting hardware
  • Adjustable ride height to accommodate various tire sizes and driving preferences

Designed for enthusiasts seeking maximum performance from 35x12.50" tires, this system can accommodate 37" and larger tires when used with optional up-travel limiters (sold separately). Note that factory crash bars on non-Sasquatch equipped Broncos must be removed to clear 35" and larger tires. ICON offers a replacement High Clearance Crash Bar set for those who want to run larger tires while retaining crash bar functionality.

California Prop 65 Warning: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.

Products specifications

Fits

2021-2023 Ford Bronco

Spring Material

Steel

Add-On Part

198001 - BILLET SPANNER WRENCH KIT

Mounting Hardware Included

Yes

Coils Quantity Front

2

Bushings Included

Yes

Add-On Part

611074 - C/O BUMP STOP SPACER KIT 7/8" SHAFT 3/8" TALL

Shocks Included

Yes

Coil Spring End 2 Type

Square

Add-On Part

42000 - 21-UP BRONCO HIGH CLEARANCE CRASH BAR KIT

Maximum Lift

4

Add-On Part

611075 - C/O BUMP STOP SPACER KIT 7/8" SHAFT 1/2" TALL

OEM Wheels & Tires Fitment

Yes

Recommended Aftermarket Tires

35" x 12.50" (Recommend high clearance crash bars part number 42000, 37" tires require coilover bump stop spacers along with trimming and modifications)

Rear Spring Rate Type

Progressive Triple Rate

Recommended Aftermarket Wheels

ICON Alloys | 17x8.5" w/ 5.75” Backspace / 25mm Offset

Add-On Part

191013 - NIPPLE GREASING ADAPTER KIT

Spring Color

Black

Grade Type

Performance

Add-On Part

198000 - 2 PIN COILOVER SPANNER WRENCH KIT

Front Spring Rate Type

Linear

Coil Spring End 1 Type

Square

Coils Quantity Rear

2
