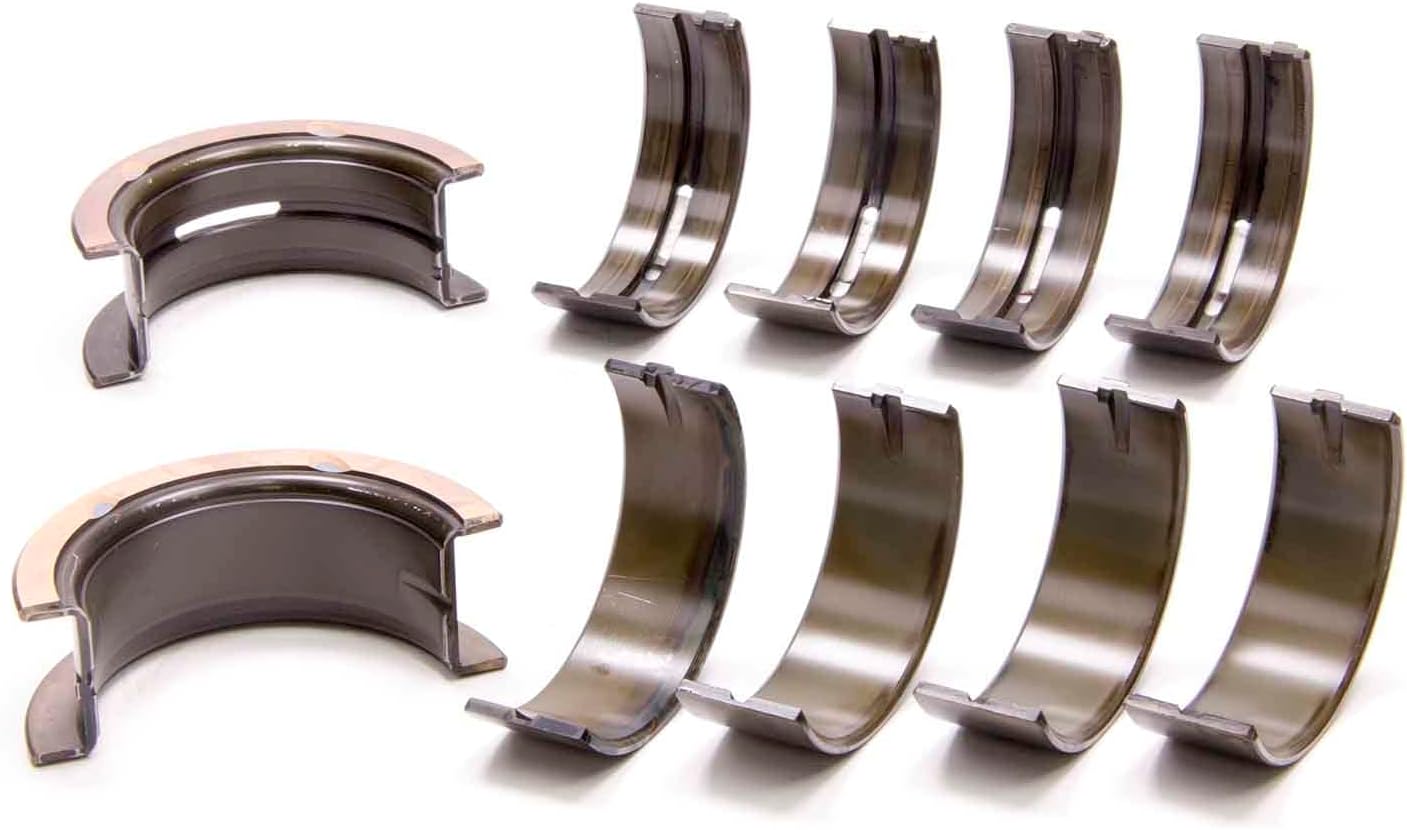

ACL Bearings 5M590HX-STD Main Bearing Set H-Series Standard Ford Small Block

Manufacturer

Part Number

5M590HX-STD
Black Friday Price

$109.46

Estimated ship date Thursday, December 03

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ACL Bearings 5M590HX-STD is a high-performance main bearing set from ACL's Race Series, engineered specifically for Ford 221, 255, 260, 289, and 302 Windsor small block engines. This H-Series bearing set features standard size bearings with extra oil clearance, making it ideal for high RPM performance and racing applications.

Advanced Trimetal Construction:

ACL Race Series bearings utilize a unique combination of design, metallurgy, and engineering to deliver exceptional performance in demanding conditions. These trimetal bearings feature a high-strength overlay plate with reduced thickness for improved fatigue properties, ensuring reliability under extreme loads.

Key Performance Features:

  • Hardened steel backs for improved bearing support and retention in the housing
  • Increased crush for superior bearing retention
  • Elimination of flash plating on bearing backs to improve heat transfer and maximize grip
  • Increased eccentricity to compensate for bore distortion at high RPM and assist hydrodynamic oil film formation
  • 3/4 grooved main bearings to optimize load carrying surface area and oil flow to connecting rod bearings
  • Tight consistent wall tolerances for maintaining precise clearances
  • Enlarged ID chamfers on bearing edges to accommodate large fillet radius on performance crankshafts

ACL Race Series bearings have proven their durability in championship-winning engines across multiple motorsports disciplines, from sport compact drift racing to NASCAR, IHRA, and NHRA competitions. The extra oil clearance in this HX-Series set makes it particularly well-suited for high-performance builds requiring optimized bearing clearances.

Products specifications

Max Overall Length

0.885" (22.48mm) - 2132H 1.133" (28.78mm) - 2133H Flange

Max Std Shaft Size

2.2490" (57.125mm)

Max Std Tunnel Size

2.4420" (62.027mm)

Max Wall at Crown

0.0952" (2.418mm)

Min Std Shaft Size

2.2482" (57.104mm)

Min Std Tunnel Size

2.4412" (62.006mm)

Oil Clearance

+ 0.001" Extra

Size

Standard
