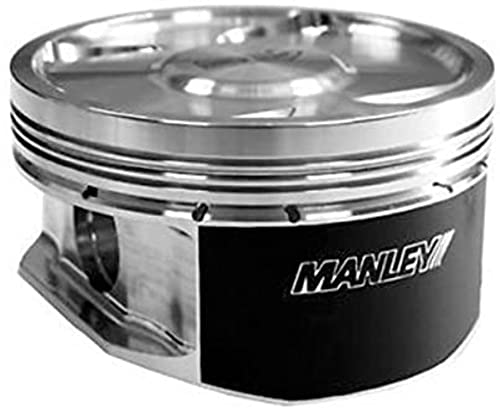

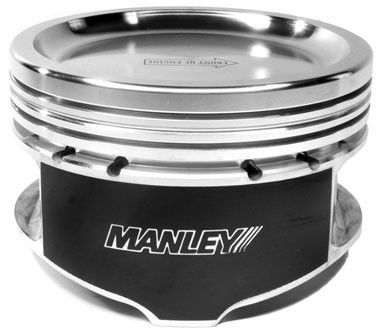

Manley 628100C-6 Platinum Series Forged Piston Set Ford BA Falcon XR6 Turbo 4.0L

Manufacturer

Part Number

628100C-6
Black Friday Price

$1,076.92

2 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Manley 628100C-6 is a Platinum Series forged piston set designed for Ford XR6 Turbo 4.0L BA Falcon engines with a 3.633-inch bore, featuring a dish configuration with -10cc volume and a 9.0:1 compression ratio. This set features 2618 alloy forgings, proven cam and barrel skirt profiles, tool steel wrist pins, and moly skirt coatings.

Key Specifications:

  • Bore: 3.633 inches (92.28mm)
  • Compression Height: 1.215 inches
  • Rod Length: 6.058 inches
  • Stroke: 3.910 inches
  • Compression Ratio: 9.0:1
  • Dish Volume: -10cc
  • Piston Weight: 384 grams each

Premium Construction Features:

  • 2618 alloy forgings for superior strength and performance
  • Offset wrist pin designed for quiet start-ups
  • Full banded skirt design for increased skirt stability
  • Exacting ring lands and grooves for enhanced ring seal and more power
  • Cam and barrel skirt profiles that generate substantial power while being gentle on cylinder walls
  • Unique fixturing allows for skirt turning and ring groove machining in a single operation, ensuring ultimate ring groove to skirt squareness
  • Pressure balance groove included
  • 6 forged pistons
  • Chrome Moly wrist pins
  • Steel top ring sets
  • Round wire locks

Join the ranks of professional engine builders and tuners who rely on Manley pistons for superior performance and durability. These pistons are engineered for high-performance and forced induction applications in the Ford Barra 240T engine platform.

Products specifications

Piston Quantity

6

Make

Ford

Piston Head Type

Dish

Compression Height

1.215

Engine Type

ICE

Product Type

Engine Piston Kit

Piston Volume

-10.00

Piston Series

Platinum Series

Piston Sub-Series

Standard

Weight

384

Bore Oversize

Stock

Engine Stroke Type

Stock

Compression Ratio

9.00:1

Bore Diameter

3.633

Engine Stroke

1.215

Title

Manley Piston Set, PIST-FORD XR6 3.633/1.215 CD/DISH
