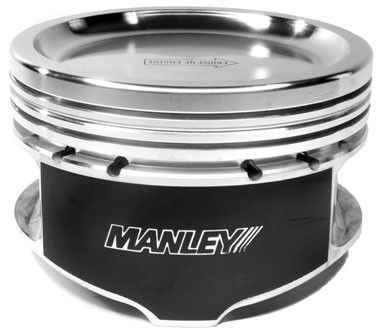

Manley 628004C-6 Forged Dish Piston Set Ford BA Falcon XR6 Turbo 3.637" Bore

Manufacturer

Part Number

628004C-6
Black Friday Price

$1,076.92

4 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Manley 628004C-6 is a high-performance forged piston set designed for Ford BA Falcon XR6 Turbo 4.0L engines. These Platinum Series pistons are precision-machined from 2618 high-strength aluminum alloy forgings, delivering exceptional strength and durability for turbocharged applications.

Key Specifications:

  • Bore Size: 3.637 inches (92.38mm) - 0.004" oversize
  • Compression Distance: 1.215 inches
  • Rod Length: 6.058 inches
  • Stroke: 3.910 inches
  • Compression Ratio: 8.5:1
  • Dish Volume: -16cc
  • Piston Weight: 385 grams each

Performance Features:

  • 2618 alloy forgings for superior strength and heat resistance
  • Offset wrist pin design for quieter cold starts
  • Full banded skirt design for increased skirt stability
  • Unique one-fixturing manufacturing ensures perfect ring groove to skirt squareness
  • Pressure balance groove included
  • Cam and barrel skirt profiles proven for durability

Complete Set Includes:

  • Six forged pistons
  • Tool steel wrist pins
  • Round wire locks
  • Piston rings

Manley's proprietary multi-step machining process delivers optimal ring seal and maximum horsepower output. These extreme-duty pistons are engineered for high-boost turbocharged builds and provide the strength needed for serious performance applications.

Products specifications

Piston Quantity

6

Weight

385

Make

Ford

Piston Head Type

Dish

Compression Height

1.215

Engine Type

ICE

Product Type

Engine Piston Kit

Piston Volume

-16.00

Piston Series

Platinum Series

Piston Sub-Series

Standard

Compression Ratio

8.50:1

Engine Stroke Type

Stock

Engine Stroke

1.215

Bore Diameter

3.637

Title

Manley Piston Set, PIST-FORD XR6 3.637/1.215 CD/DISH

Bore Oversize

+0.004
