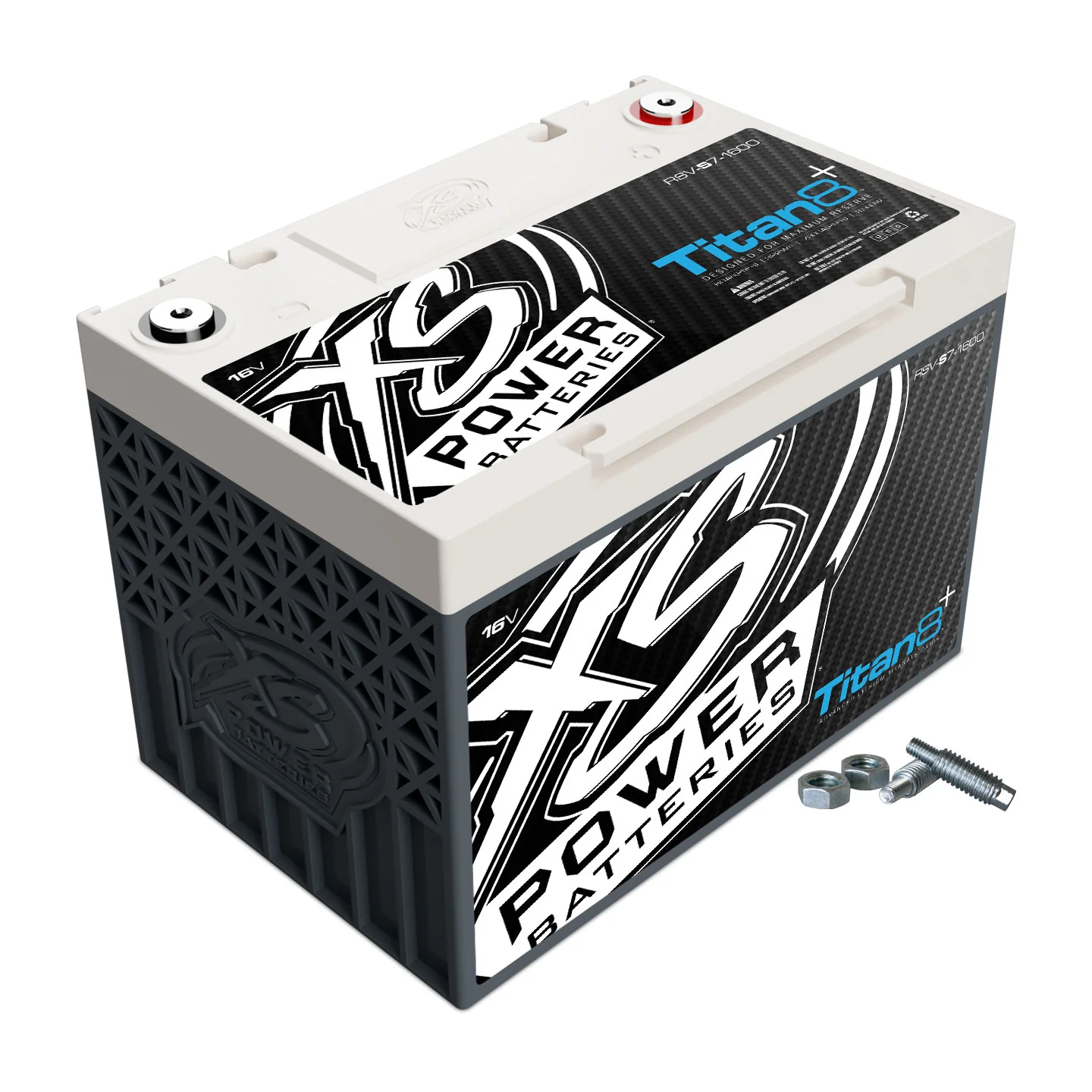

XS Power Batteries RSV-S7-1600 16V Lithium Titan8 Racing Battery BCI Group 34

The XS Power RSV-S7-1600 is a high-performance 16-volt lithium titanate oxide (LTO) battery engineered for racing, car audio, and high-performance applications demanding extreme cranking power at a fraction of the weight of traditional AGM batteries. This Titan8 Series battery utilizes advanced lithium titanate technology designed for even output, sustained voltage, and extraordinarily long operational life.

Key Performance Specifications:

• 16-volt operation with 3,500 watts maximum power output
• 1,000 maximum amps burst current capability
• 500A cranking amps (750A AGM equivalent)
• 20 amp-hours capacity (60Ah AGM equivalent)
• 322 watt-hours total energy capacity
• Weighs only 12 lbs—significantly lighter than comparable AGM batteries

Advanced Features:

• Built-in 2/0 gauge bussing with up to 4 positive and 4 negative hidden direct connections
• Two easily accessible top terminals plus four series/parallel expansion terminals
• Sealed construction provides complete protection from vibration, spills, and moisture
• BCI Group 34 fitment with M6 terminal hardware (587 stud adapters included)
• Superior cold temperature performance and faster recharge times versus AGM
• Does not require special lithium charger or maintainer

The RSV-S7-1600's lithium titanate cells deliver exceptional burst output capability—up to 100 times their capacity—making this battery ideal for racing vehicles, high-output car audio systems, marine applications, and performance vehicles requiring maximum starting power with minimum weight. Its modular design allows for flexible bank configurations from 16V to 48V and beyond.

Physical Dimensions: 10.24" L × 6.89" W × 7.16" H
