CP-Carrillo BC1026-040-1 Bullet Series Forged Piston Single SB Chevy 4.040 Bore

Manufacturer

Part Number

BC1026-040-1
Sale Price

$160.38

Estimated ship date Friday, November 27

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

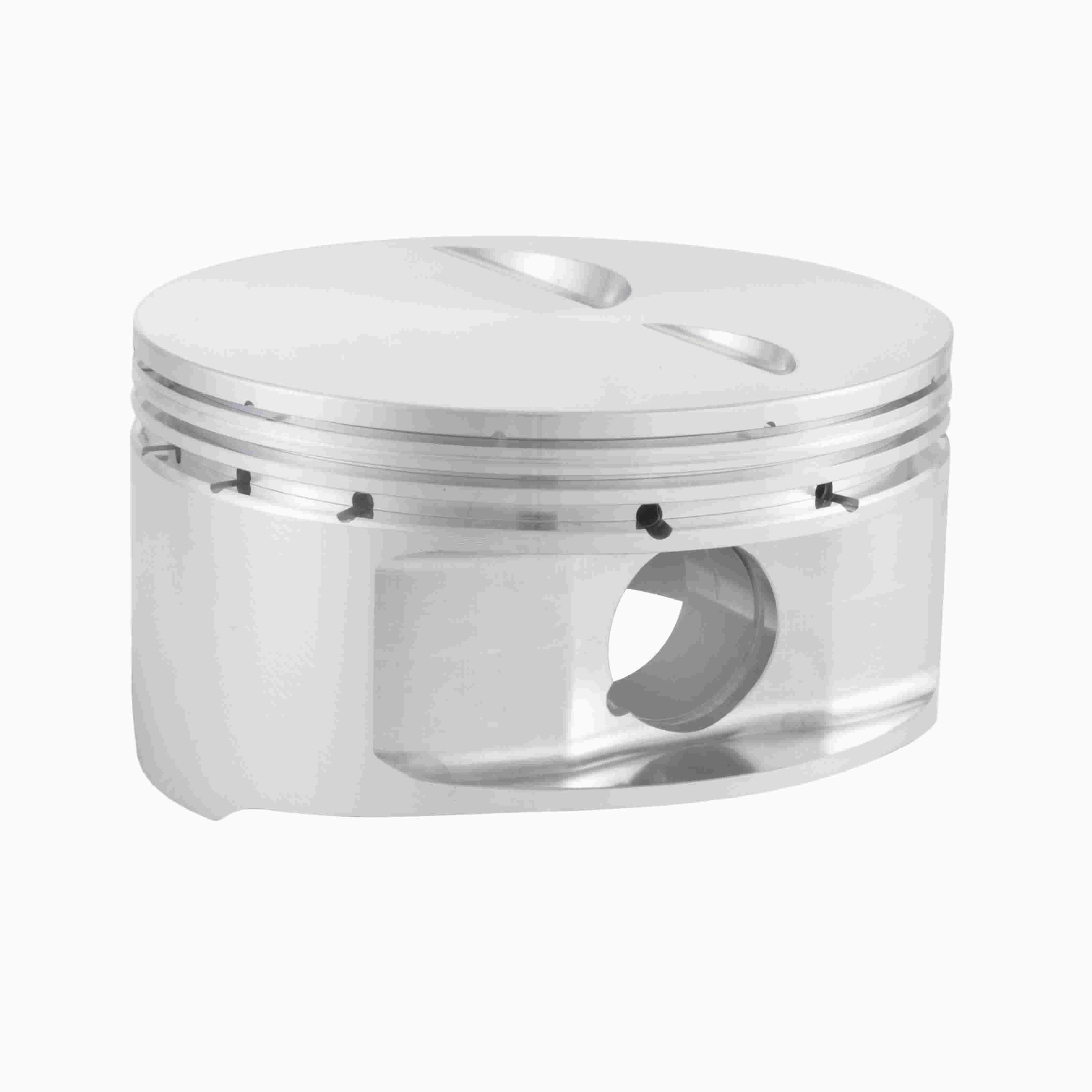

The CP-Carrillo BC1026-040-1 is a single forged piston from the CP Pistons Bullet Series, designed for Small Block Chevy engines using 23° cylinder heads. This is a single-piston unit, ideal for individual replacement or custom builds.

Engineered and manufactured in the USA, the BC1026 Bullet Series piston is built from 2618 forged aluminum alloy for exceptional strength, durability, and thermal stability under high-performance conditions. The flat-top design features symmetrical valve pockets and deep intake pockets to maximize flow and optimize compression with 23° SB Chevy cylinder heads.

Specifications:

  • Bore: 4.040 in. (102.616 mm)
  • Stroke: 3.750 in.
  • Rod Length: 5.700 in.
  • Compression Height: 1.425 in.
  • Piston Head Volume: -6.83cc (Flat Top)
  • Piston Style: Flat top with two valve reliefs
  • Piston Material: 2618 forged aluminum alloy
  • Pin Diameter: 0.927 in.
  • Wrist Pin Style: Press-fit or floating
  • Top Ring: 1.5mm steel, gas nitride coated
  • Second Ring: 1.5mm Napier, phosphate coated
  • Oil Ring: 3.0mm
  • Compression Ratio (w/ 64cc heads): ~10.7:1
  • Sold as: Single piston

Key Features:

  • Made in the USA from 2618 forgings
  • Symmetrical valve pockets with .310 deep intake pockets
  • Piston balance within 1 gram
  • Dual forced pin oilers
  • Contact reduction grooves
  • Accumulator groove for improved ring seal
  • Forged side relief
  • Chromoly wrist pin included with wire locks
  • File-fit ring set included

The CP Bullet Series delivers true high-performance forged piston technology at an accessible price point, incorporating the same computer-designed forgings, tight tolerances, and rigorous quality control that have made CP-Carrillo an industry leader in engine internals.
