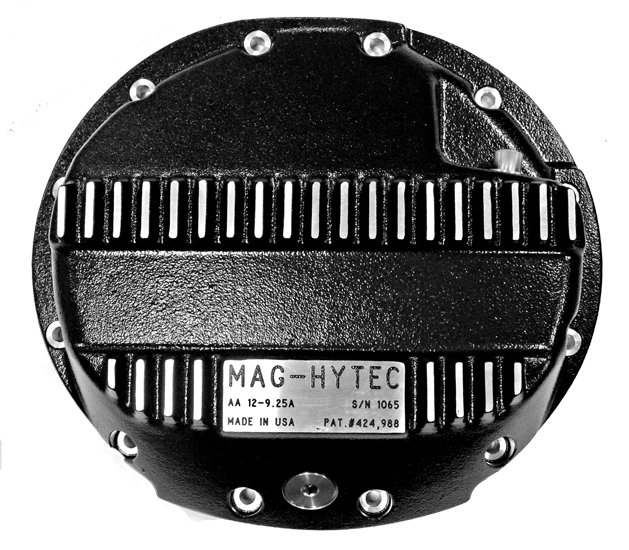

Mag-Hytec AA12-9.25-A Front Differential Cover for Dodge RAM 2500/3500

The Mag-Hytec AA12-9.25-A Front Differential Cover is a high-capacity aluminum differential cover designed for the American Axle Manufacturing (AAM) 9.25-inch front axle found in 2013-2018 Dodge RAM 3500 and 2014-2018 Dodge RAM 2500 trucks. This heavy-duty cover significantly increases fluid capacity from the factory 2.5 quarts to 4.5 quarts, providing enhanced cooling and lubrication protection for demanding applications.

Key Features:

• Cast from A356-T6 aircraft-grade aluminum with machined cooling fins for superior heat dissipation
• Black powder-coated finish for corrosion resistance and professional appearance
• Integrated magnetic drain plug to capture metallic wear particles and maintain fluid integrity
• Anodized aluminum dipstick with magnetic insert for easy fluid level checks without removing the cover
• ARP 568 O-ring seal for leak-free operation - no gasket or sealant required
• Angled protective ramp design on bottom half helps differential ride over obstacles in off-road conditions
• Overall height of 3 5/8 inches
• Includes 303 stainless steel hardware (bolts and washers)

This differential cover simplifies routine maintenance by allowing fluid level checks and changes without removing the cover. Installation requires Allen key wrenches (included). The increased oil capacity and enhanced cooling make this cover ideal for towing, hauling, and off-road use. Mag-Hytec covers are backed by a lifetime limited warranty.
