Earl's Performance UltraPro Stainless Steel Braid AN Hose

Manufacturer

Part Number

4 part numbers · from $326.95
Sale Price

from $326.95

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

Earl's Performance UltraPro Stainless Steel Braid AN Hose is a premium PTFE-lined performance hose line engineered as a complete, integrated system for high-performance automotive and motorsports fluid plumbing. Designed to outlast and outperform traditional rubber-lined hose, UltraPro delivers superior fluid flow, exceptional flexibility, and the long-term durability demanded by serious builds — from street performance machines to full-time professional race programs.

At the core of every UltraPro hose is a carbon-infused PTFE (polytetrafluoroethylene) inner liner — the same class of material trusted in aerospace fluid transfer applications. The carbon infusion dissipates static charges to prevent fuel vapor buildup, while PTFE's inherently ultra-low coefficient of friction maximizes fluid flow. This liner is impervious to all known fuels, oils, and coolants used in automotive applications, including modern pump gas, E85, methanol, and synthetic lubricants — it will not degrade, swell, or permeate under prolonged exposure.

The inner liner features a double-helix ribbed convoluted design that enables extreme flexibility and full-bore flow even through tight bends and challenging routing conditions. This ribbed structure also provides positive mechanical engagement and retention when paired with compatible UltraPro hose ends. A fiberglass wrap reinforcement layer surrounds the liner before the final stainless steel outer braid is applied, delivering an additional layer of structural integrity against pressure, abrasion, and heat.

Key Features:

  • Carbon-infused PTFE inner liner — impervious to all known fuels, oils, and coolants; resists permeation and vapor transmission
  • Double-helix ribbed convoluted liner — provides extreme flexibility, full-bore flow, and positive hose-end engagement and retention
  • Fiberglass wrap reinforcement layer — applied between liner and outer braid for added structural strength and integrity
  • Stainless steel outer braid — outstanding abrasion, heat, and corrosion resistance
  • Up to 37% lighter than traditional rubber hose with stainless steel braid
  • Rated to 500 PSI — engineered to withstand harsh environments, brutal vibration, high-flow requirements, and extreme pressures

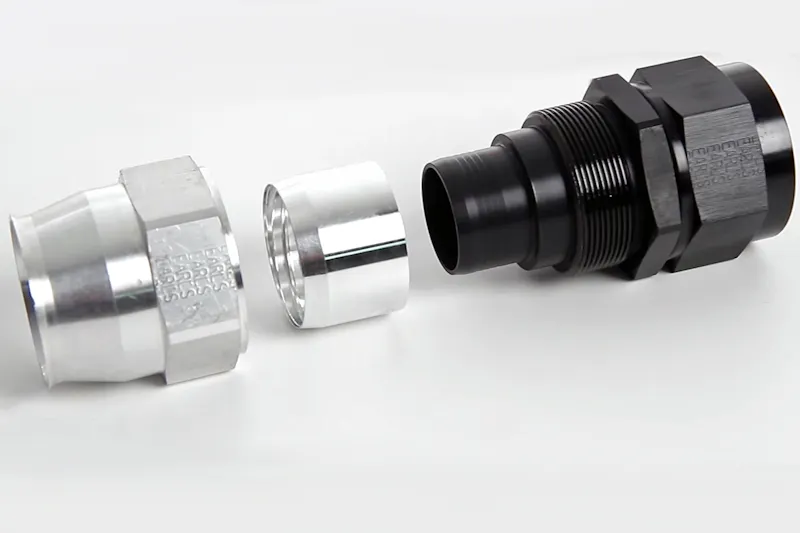

  • Compatible with Earl's UltraPro hose ends — available in twist-on and crimp-on configurations
  • Holley/Earl's Emission Code 5 — legal for sale and use on emissions-controlled and racing vehicles

Founded in 1955, Earl's Performance has been supplying aircraft-grade plumbing components to the motorsports industry for decades. The UltraPro line represents the pinnacle of that legacy — engineered as an integrated system where hose and hose ends are perfectly matched for maximum performance and reliability. Whether upgrading a high-performance street machine or building a dedicated race car, UltraPro Stainless Steel Braid Hose delivers the professional-grade confidence that top-level racing programs depend on.

Installation Note: All UltraPro hose assemblies must be pressure tested prior to use. Crimp-style hose end installations require the appropriate Earl's UltraPro crimping machine and crimp die — consult the specific hose end instructions for tooling requirements.

Select yours to see vehicle-specific options.

Select & Customize

4 of 20 items

Air and Fuel Delivery
Description
Specifications
BrandEarl's
Carbon LinedYes
CategoryAir and Fuel Delivery
Compatible Hose EndsUltraPro - Twist On
Compatible Hose EndsUltraPro - Crimp On
Crimping Die22MM - D10022BERL
Emission Code5
Final Crimp O.D. Range.982"-.986"
Fluid TypeAutomatic Transmission Fluid
Fluid TypeOil
Fluid TypeCoolant
Fluid TypeMethanol/Alcohol
Fluid TypeDiesel
Fluid TypeE85
Fluid TypeBio-Fuels
Fluid TypePump Gas
Fluid TypeRace Gas
Fluid Type Rating - Automatic Transmission Fluid5 out of 5 Rating
Fluid Type Rating - Bio-Fuels5 out of 5 Rating
Fluid Type Rating - Coolant5 out of 5 Rating
Fluid Type Rating - Diesel5 out of 5 Rating
Fluid Type Rating - E855 out of 5 Rating
Fluid Type Rating - Methanol/Alcohol5 out of 5 Rating
Fluid Type Rating - Oil5 out of 5 Rating
Fluid Type Rating - Pump Gas5 out of 5 Rating
Fluid Type Rating - Race Gas5 out of 5 Rating
Fluid Type Rating - Vacuum3 out of 5 Rating
Hose FamilyUltraPro
Hose Length10 Feet
Hose Outer MaterialStainless Steel Braided
Hose Size12 AN
inside Diameter.646"
Max Vacuum28 in Hg
Max Working PSI500 PSI
Min. Bend Radius2.5"
Outside Diameter.886"
Part TypeFuel Hose
Product TypeUltraPro Stainless Steel Braided
Sub CategoryFuel Storage
Submersible in FuelYes
Temperature Range-67° F to 400° F
WarningCalifornia Proposition 65
$326.95
PART NUMBER: 691012ERL
In Stock (8)
Usually delivered within 2 days
Plumbing AN Fittings and Hose
Description
Specifications
BrandEarl's
Carbon LinedYes
CategoryPlumbing AN Fittings and Hose
Compatible Hose EndsUltraPro - Twist On
Compatible Hose EndsUltraPro - Crimp On
Crimping Die22MM - D10022BERL
Emission Code5
Final Crimp O.D. Range.982"-.986"
Fluid TypeCoolant
Fluid TypeE85
Fluid TypeMethanol/Alcohol
Fluid TypeAutomatic Transmission Fluid
Fluid TypePump Gas
Fluid TypeDiesel
Fluid TypeRace Gas
Fluid TypeBio-Fuels
Fluid TypeOil
Fluid Type Rating - Automatic Transmission Fluid5 out of 5 Rating
Fluid Type Rating - Bio-Fuels5 out of 5 Rating
Fluid Type Rating - Coolant5 out of 5 Rating
Fluid Type Rating - Diesel5 out of 5 Rating
Fluid Type Rating - E855 out of 5 Rating
Fluid Type Rating - Methanol/Alcohol5 out of 5 Rating
Fluid Type Rating - Oil5 out of 5 Rating
Fluid Type Rating - Pump Gas5 out of 5 Rating
Fluid Type Rating - Race Gas5 out of 5 Rating
Fluid Type Rating - Vacuum3 out of 5 Rating
Hose FamilyUltraPro
Hose Length20 Feet
Hose Outer MaterialStainless Steel Braided
Hose Size12 AN
inside Diameter.646"
Max Vacuum28 in Hg
Max Working PSI500 PSI
Min. Bend Radius2.5"
Outside Diameter.886"
Product TypeUltraPro Stainless Steel Braided
Special OffersSummer Sale
Submersible in FuelYes
Temperature Range-67° F to 400° F
WarningCalifornia Proposition 65
$628.95
PART NUMBER: 692012ERL
4 left at this price
Usually delivered within 2 days
Air and Fuel Delivery
Description
Specifications
BrandEarl's
Carbon LinedYes
CategoryAir and Fuel Delivery
Compatible Hose EndsUltraPro - Twist On
Compatible Hose EndsUltraPro - Crimp On
Crimping Die29MM - D10029BERL
Emission Code5
Final Crimp O.D. Range1.179"-1.183"
Fluid TypeAutomatic Transmission Fluid
Fluid TypeOil
Fluid TypeCoolant
Fluid TypeMethanol/Alcohol
Fluid TypeDiesel
Fluid TypeE85
Fluid TypeBio-Fuels
Fluid TypePump Gas
Fluid TypeRace Gas
Fluid Type Rating - Automatic Transmission Fluid5 out of 5 Rating
Fluid Type Rating - Bio-Fuels5 out of 5 Rating
Fluid Type Rating - Coolant5 out of 5 Rating
Fluid Type Rating - Diesel5 out of 5 Rating
Fluid Type Rating - E855 out of 5 Rating
Fluid Type Rating - Methanol/Alcohol5 out of 5 Rating
Fluid Type Rating - Oil5 out of 5 Rating
Fluid Type Rating - Pump Gas5 out of 5 Rating
Fluid Type Rating - Race Gas5 out of 5 Rating
Fluid Type Rating - Vacuum3 out of 5 Rating
Hose FamilyUltraPro
Hose Length10 Feet
Hose Outer MaterialStainless Steel Braided
Hose Size16 AN
inside Diameter.855"
Max Vacuum28 in Hg
Max Working PSI500 PSI
Min. Bend Radius3.5"
Outside Diameter1.092"
Part TypeFuel Hose
Product TypeUltraPro Stainless Steel Braided
Sub CategoryFuel Storage
Submersible in FuelYes
Temperature Range-67° F to 400° F
WarningCalifornia Proposition 65
$430.95
PART NUMBER: 691016ERL
3 left at this price
Usually delivered within 2 days
Air and Fuel Delivery
Description
Specifications
BrandEarl's
Carbon LinedYes
CategoryAir and Fuel Delivery
Compatible Hose EndsUltraPro - Twist On
Compatible Hose EndsUltraPro - Crimp On
Crimping Die29MM - D10029BERL
Emission Code5
Final Crimp O.D. Range1.179"-1.183"
Fluid TypeAutomatic Transmission Fluid
Fluid TypeOil
Fluid TypeCoolant
Fluid TypeMethanol/Alcohol
Fluid TypeDiesel
Fluid TypeE85
Fluid TypeBio-Fuels
Fluid TypePump Gas
Fluid TypeRace Gas
Fluid Type Rating - Automatic Transmission Fluid5 out of 5 Rating
Fluid Type Rating - Bio-Fuels5 out of 5 Rating
Fluid Type Rating - Coolant5 out of 5 Rating
Fluid Type Rating - Diesel5 out of 5 Rating
Fluid Type Rating - E855 out of 5 Rating
Fluid Type Rating - Methanol/Alcohol5 out of 5 Rating
Fluid Type Rating - Oil5 out of 5 Rating
Fluid Type Rating - Pump Gas5 out of 5 Rating
Fluid Type Rating - Race Gas5 out of 5 Rating
Fluid Type Rating - Vacuum3 out of 5 Rating
Hose FamilyUltraPro
Hose Length20 Feet
Hose Outer MaterialStainless Steel Braided
Hose Size16 AN
inside Diameter.855"
Max Vacuum28 in Hg
Max Working PSI500 PSI
Min. Bend Radius3.5"
Outside Diameter1.092"
Part TypeFuel Hose
Product TypeUltraPro Stainless Steel Braided
Sub CategoryFuel Storage
Submersible in FuelYes
Temperature Range-67° F to 400° F
WarningCalifornia Proposition 65
$853.95
PART NUMBER: 692016ERL
3 left at this price
Usually delivered within 2 days
