ACL Bearings 5M1186H-STD Race Series Main Bearing Set for Mitsubishi 4G63

Manufacturer

Part Number

5M1186H-STD
Black Friday Price

$92.03

Estimated ship date Thursday, December 03

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

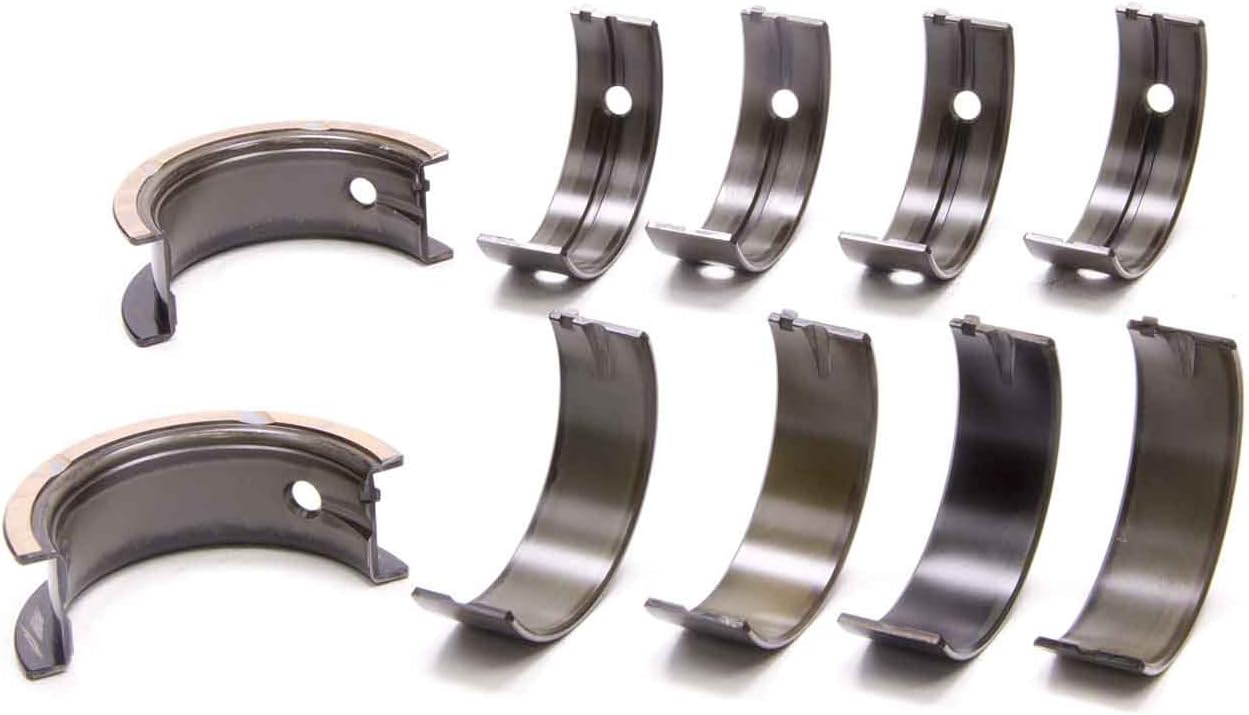

The ACL Bearings 5M1186H-STD Race Series Main Bearing Set is engineered for high-performance applications on Mitsubishi 4G63 7-bolt engines found in 1992-1997 DSM and Evolution I-IV models. This complete set includes 10 main bearings with integrated thrust washers, designed to withstand the extreme demands of high RPM, high boost, and racing conditions.

Advanced Trimetal Construction:

  • Hardened steel backing to maintain bearing retention under high loads and temperatures
  • High fatigue strength copper-lead lining for durability
  • Nickel barrier layer for improved performance
  • High strength lead-tin-copper overlay with reduced thickness for increased fatigue strength
  • F780 bearing material specification

Performance-Engineered Features:

  • 3/4 groove design optimizes oil supply to connecting rods while maximizing load carrying capacity
  • Enlarged ID chamfers accommodate larger crankshaft fillets found on performance cranks
  • Increased crush and tighter wall tolerances ensure proper seating and consistent clearances
  • Elimination of flash plating improves heat transfer and bearing retention
  • Increased eccentricity compensates for bore distortion at high RPM

Specifications:

  • Bearing Size: Standard (STD)
  • Bearing Type: Upper and lower halves with integrated thrust
  • Max Shaft Size: 2.244 inches (57mm)
  • Max Housing Bore: 2.402 inches (61.021mm)
  • Oil Clearance Range: 0.0008-0.0028 inches

ACL Race Series bearings are manufactured to exacting tolerances with particular attention to wall thickness accuracy, ensuring reliable fit and consistent performance. These bearings are the choice of engine builders who demand OE-quality construction with enhanced performance characteristics for racing and high-output street applications.

Products specifications

Max Overall Length

0.827" (21.00mm) w/ 1186H/HX 1.000" (25.40mm) w/ 1187H/HX Flange

Max Std Shaft Size

2.2441" (57.000mm)

Max Std Tunnel Size

2.4024" (61.021mm)

Max Wall at Crown

0.0783" (1.990mm)

Min Std Shaft Size

2.2435" (56.985mm)

Min Std Tunnel Size

2.4016" (61.000mm)

Oil Clearance

Standard

Size

Standard
