Product Details

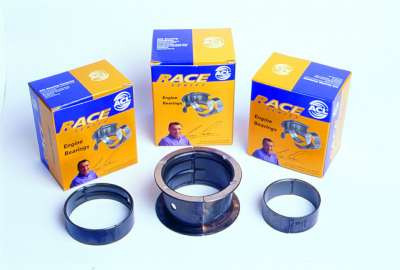

The ACL Bearings 5M2964HX-STD Race Series main bearing set is engineered for high-performance Nissan SR18 and SR20 engine builds, including SR20DE, SR20DET, and SR20VE applications. Manufactured with F780 bearing material, this STD size bearing set features extra oil clearance (HX designation) specifically designed for turbocharged and high-RPM racing applications.

Key Features:

  • High-strength overlay plate with reduced thickness for improved fatigue resistance
  • Trimetal construction with precision-engineered metallurgy for extreme durability
  • Increased crush for superior bearing retention under high loads
  • Elimination of flash plating on bearing backs for enhanced heat transfer
  • Increased eccentricity to compensate for bore distortion at high RPM
  • 3/4 grooved design optimizes load-carrying surface and oil flow
  • Micron-tolerance machining ensures consistent wall thickness and crush characteristics

Specifications:

  • Part Number: 5M2964HX
  • Bearing Size: STD (Standard)
  • Bearing Material: F780
  • Configuration: Upper and lower bearing halves included
  • Oil Clearance Range: 0.0017" - 0.0037" (0.042mm - 0.095mm)
  • Overall Length: 0.752" (19.1mm)
  • Journal Size: 2.1636" - 2.1646" (54.956mm - 54.98mm)

ACL Race Series bearings are trusted by engine builders worldwide for their proven performance in drift racing, road racing, and forced induction applications. This complete main bearing set provides the reliability and load capacity demanded by serious performance builds.

Products specifications

Max Overall Length

0.752" (19.10mm)

Max Std Shaft Size

2.1646" (54.980mm)

Max Std Tunnel Size

2.3216" (58.968mm)

Max Wall at Crown

0.0775" /1.967mm)

Min Std Shaft Size

2.1636" (54.956mm)

Min Std Tunnel Size

2.3206" (58.944mm)

Oil Clearance

+ 0.001" Extra

Size

Standard
