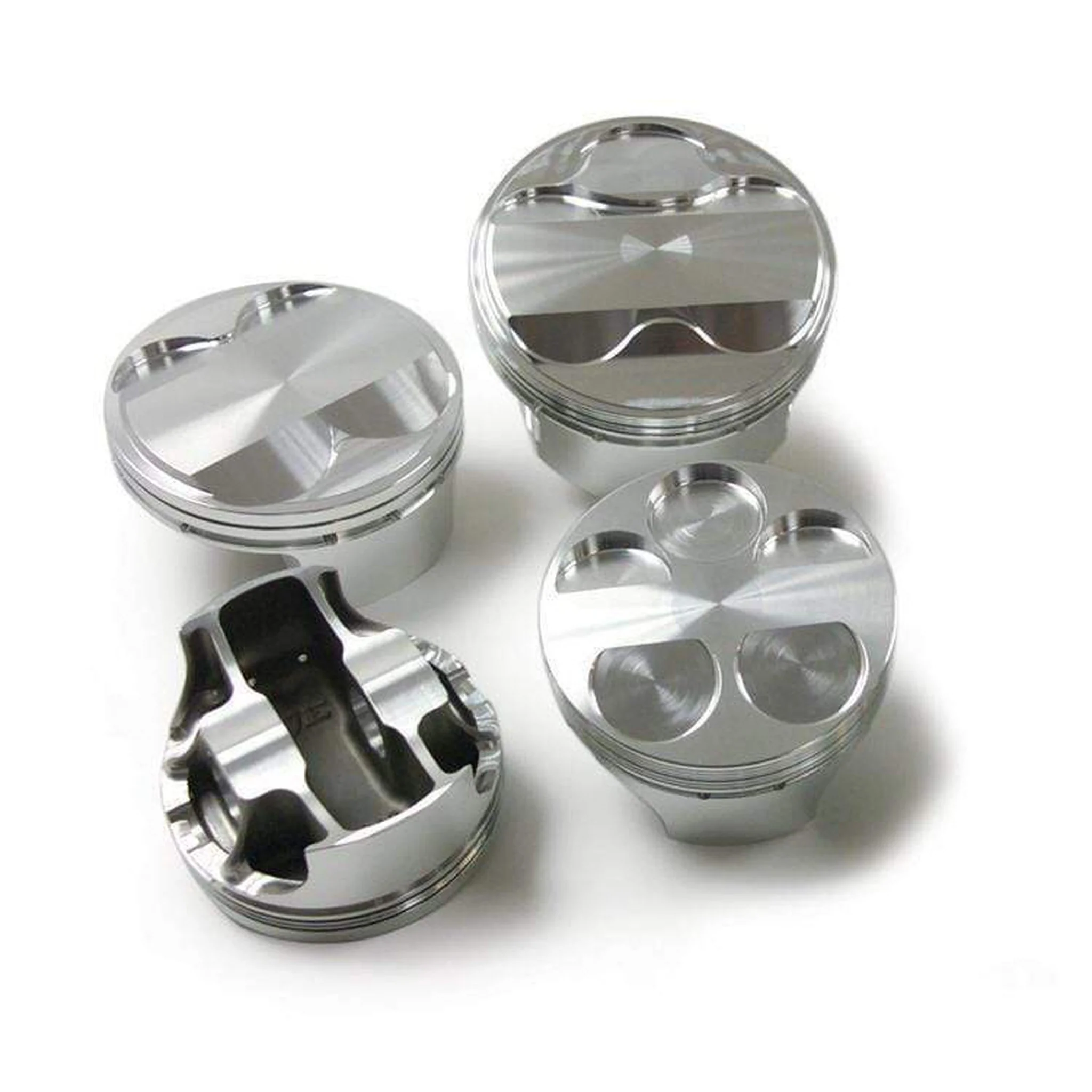

JE Pistons 314440L Forged FSR Piston Single 3.622 in. Bore 9.5:1 2618 Aluminum Dome

Manufacturer

Part Number

314440L
Sale Price

$299.99

Estimated ship date Sunday, November 15

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The JE Pistons 314440L is a single replacement forged piston engineered for the Subaru EJ205 engine platform. Manufactured from 2618 aerospace-grade aluminum alloy, this piston delivers the high tensile strength required for demanding turbocharged and high-performance applications. With a 3.622-inch (92.0mm) standard bore, a 1.287-inch compression height (C/D), and a 0.905-inch wrist pin, this piston is built to precise tolerances for a reliable, performance-optimized fit.

This piston features JE's proprietary Asymmetrical FSR (Forged Side Relief) skirt design, which minimizes friction and reduces power loss through a reduced skirt contact area, while also saving weight with a shorter wrist pin. The dome crown features smooth flowing radii engineered for excellent flame travel and optimized combustion efficiency at a 9.5:1 compression ratio. The dome volume measures -3.2cc.

Key Specifications:

  • Alloy: 2618 Forged Aluminum
  • Bore: 3.622 in. (92.0mm) — Standard Size
  • Compression Height (C/D): 1.287 in. (32.7mm)
  • Wrist Pin Diameter: 0.905 in. — Carbon Steel, Straight Wall
  • Pin Length (FSR): 2.250 in.
  • Compression Ratio: 9.5:1
  • Dome Volume: -3.2cc
  • Skirt Style: Asymmetrical FSR (Forged Side Relief)
  • Ring Groove Widths: 1.0 x 1.2 x 2.8mm
  • Stroke: 75mm | Rod Length: 130.50mm
  • Sold as: Single Piston (Left or Right per suffix)

Key Features:

  • Forged and machined in-house using premium 2618 aluminum for superior strength under boost
  • Proprietary FSR skirt design reduces friction and sheds weight without sacrificing structural integrity
  • Dome crown geometry optimized for efficient flame travel and consistent combustion
  • Designed for 1.0 x 1.2 x 2.8mm ring packages
  • Wrist pin and lock rings included

The 314440L suffix designates this as a single left-hand piston, ideal for engine builders who need to replace an individual piston rather than purchasing a full set. JE Pistons has over 75 years of experience engineering and manufacturing forged racing pistons in the USA, and their FSR technology represents the current benchmark in performance piston design.

Products specifications

Engine

EJ SERIES

Piston Avg Wt

379

Second Compression Ring Thickness

0.048

Piston Pin Wall Thickness

0.180

Piston Pin Material

5115

Top Compression Ring Thickness

0.04

Out of Stock Message

Call for Availability

Piston Volume

-3.2

Cylinder Head

EJ205 WRX

Add-On

905-042-CT

Add-On

JG1001-3622

Piston Head Type

Dome

Product Market

Sport Compact

Forging Type

FSR

Piston Pin Outside Diameter

0.905

Bore Diameter

92.00

Industry

Automotive

Add-On

905-2250-18-51S

Category Hierarchy

Pistons>Individual Pistons

Compression Height

1.287

Ringset Included

Yes

Oil Ring Thickness

0.111

Piston Pin Length

2.250

Piston Material

2618

Make

SUBARU
