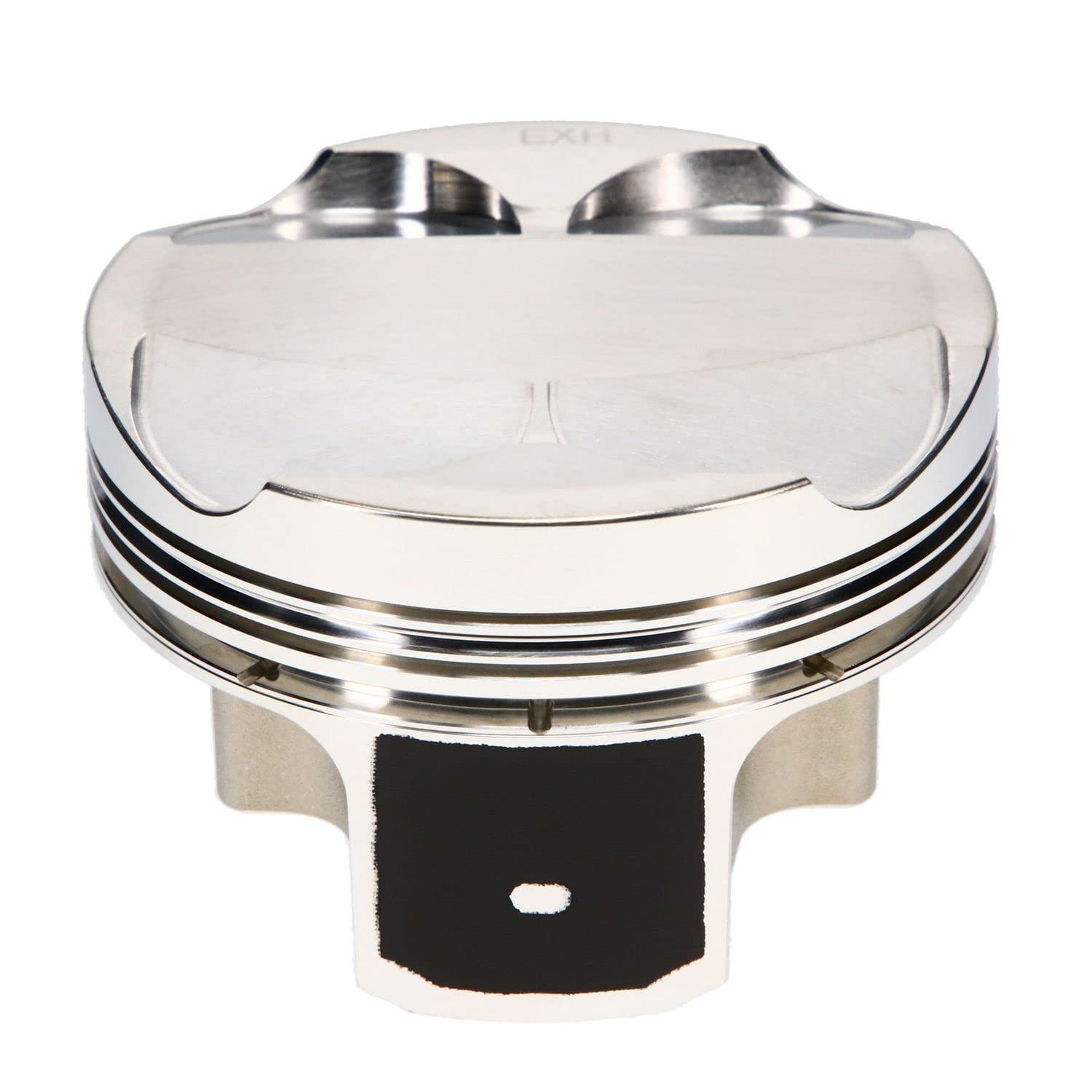

JE Pistons 297118S FSR Forged Single Piston 2618 Aluminum 3.445 Bore 11.5:1 CR Inverted Dome/Dish

Manufacturer

Part Number

297118S
Sale Price

$299.99

Estimated ship date Monday, November 16

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The JE Pistons 297118S is a single replacement forged piston engineered for the BMW S54B32 engine platform. Featuring an inverted dome/dish crown design with a -13.80cc dish volume and an 11.50:1 compression ratio, this piston is purpose-built for high-demand performance and racing applications. It is sold individually as a direct replacement single piston for the 297118 six-piece kit.

Key Specifications:

  • Bore: 3.445 in. (87.50 mm) — 0.50 mm oversize
  • Compression Height (CD): 1.271 in.
  • Pin Diameter: 0.827 in.
  • Pin Length: 2.250 in.
  • Dish Volume: -13.80 cc
  • Compression Ratio: 11.50:1
  • Piston Material: 2618 T6 high-tensile forged aluminum
  • Piston Weight: 332 grams
  • Wall Thickness: 0.150 in. (chamfered wall type)
  • Ring Widths: 1.0 x 1.2 x 2.8 mm (top / second / oil)
  • Wrist Pin Style: Floating, offset pin for quiet operation
  • Forging Type: FSR (Forged Side Relief)
  • Ringset Part Number: JG1001-3445 (JE Pro Seal)
  • Related Kit Part Number: 297118

Key Features:

  • Proprietary FSR (Forged Side Relief) forging design reduces skirt width to minimize friction and power loss while saving weight via a shorter wrist pin
  • Asymmetrical skirt technology reduces friction and mass while providing a more rigid and durable piston platform
  • Smooth Finished Crown process promotes excellent flame travel across the piston crown
  • Offset pin design reduces piston slap noise during cold starts and normal operation
  • 2618 T6 wrought aluminum alloy delivers the high tensile strength required for boost, nitrous, and high-RPM racing environments
  • Crown requires no deburring or preparation prior to installation
  • Engineered, forged, and machined 100% in the USA

Includes a high-quality wrist pin (0.827 x 2.250 in., straight wall carbon steel, case hardened), wire lock retainers, and JE Pro Seal premium piston rings. The 297118S is the single-piston replacement part for the 297118 full set, making it ideal for replacing a single damaged piston without purchasing a complete kit.

Products specifications

Piston Pin Wall Thickness

0.150

Second Compression Ring Thickness

0.048

Ringset Included

Yes

Add-On

JG1001-3445

Piston Pin Material

5115

Cylinder Head

S54B32 USA

Piston Pin Length

2.250

Out of Stock Message

Call for Availability

Piston Head Type

Dish

Forging Type

FSR

Piston Volume

-13.8

Piston Material

2618

Category Hierarchy

Pistons>Individual Pistons

Industry

Automotive

Add-On

827-063-MW

Piston Pin Outside Diameter

0.827

Compression Height

1.271

Top Compression Ring Thickness

0.04

Oil Ring Thickness

0.111

Bore Diameter

87.50

Make

BMW

Piston Avg Wt

332

Add-On

827-2250-15-51C

Product Market

Sport Compact

Engine

S54B32
