RADIUM Engineering 20-0740-00 Fuel Hanger Surge Tank for Nissan R32 Skyline GT-R

The RADIUM Engineering FHST (Fuel Hanger Surge Tank) is the ultimate solution for fuel starvation issues, providing a fully functional fuel surge tank contained inside the OEM fuel tank. Part number 20-0740-00 is specifically designed to accommodate Walbro GSS342 255lph or AEM 50-1200 E85 fuel pumps (pumps sold separately).

Key Features:

• Configurable with 1, 2, or 3 high pressure pumps to feed fuel to the engine and 1 lift pump to keep the surge tank full, meeting the fuel demands of any engine power level for the R32 GT-R
• Straightforward and relatively simple installation with no grinding, bending, or modification of the vehicle required
• Compatible with alternative fuels such as E85
• Custom designed stainless steel electrical studs with hermetically sealed connections and non-conductive anodized aluminum acorn nuts to prevent accidental short circuiting
• Includes high current fuel pump wiring for installing one FHST pump (1 relay, 1 fuse, and all associated wiring and hardware)
• Replacement OEM Nissan fuel level sensor included with correct resistance range for proper gauge cluster operation
• All in-tank wiring insulated with chemically resistant ETFE
• Preinstalled barb fittings for direct connections to factory rubber fuel hoses, with 8AN (feed) and 6AN (return) adapter fittings provided for connecting aftermarket AN style hoses

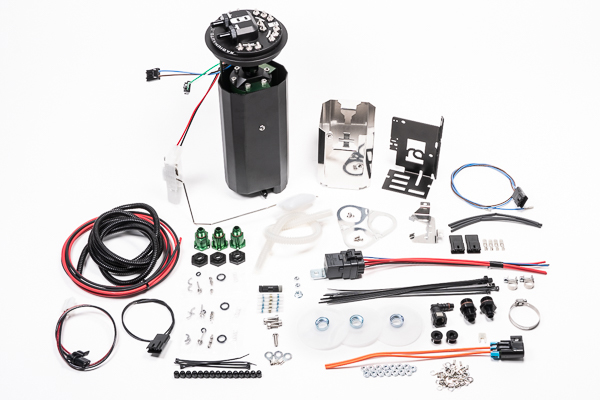

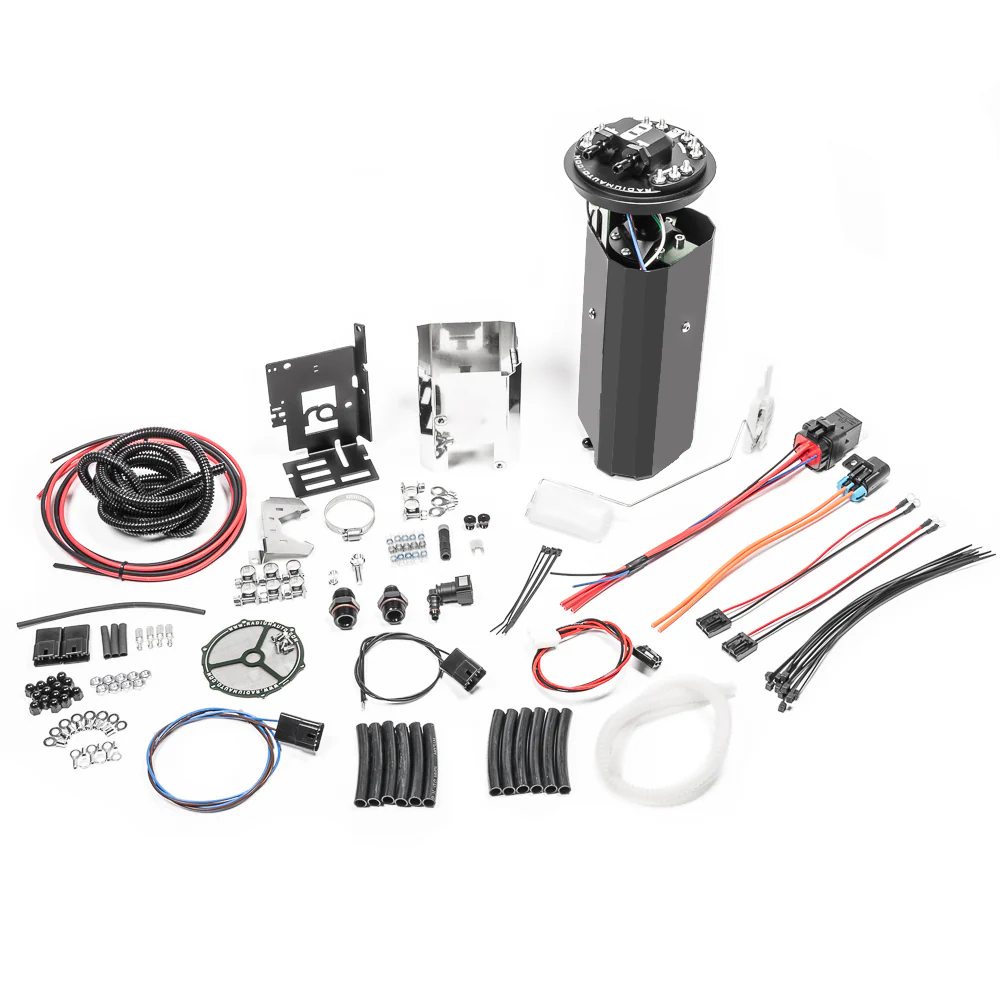

All kits come partially assembled with the final assembly performed by the technician during installation, with enough parts to run 1, 2, or 3 surge tank pumps and 1 lift pump. This system eliminates fuel pump starvation issues common when vehicles are driven aggressively and fuel sloshes away from the in-tank pump.

Note: To wire in additional FHST pumps, extra fuses and relays are required; consider purchasing RADIUM part number 17-0031 DIY Wiring Kit for each additional pump.
