Carrillo SCR7509-10 Pro-H Beam Connecting Rods 154mm 8mm CARR Bolt

Manufacturer

Part Number

SCR7509-10
Sale Price

$3,855.53

Estimated ship date Friday, November 27

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

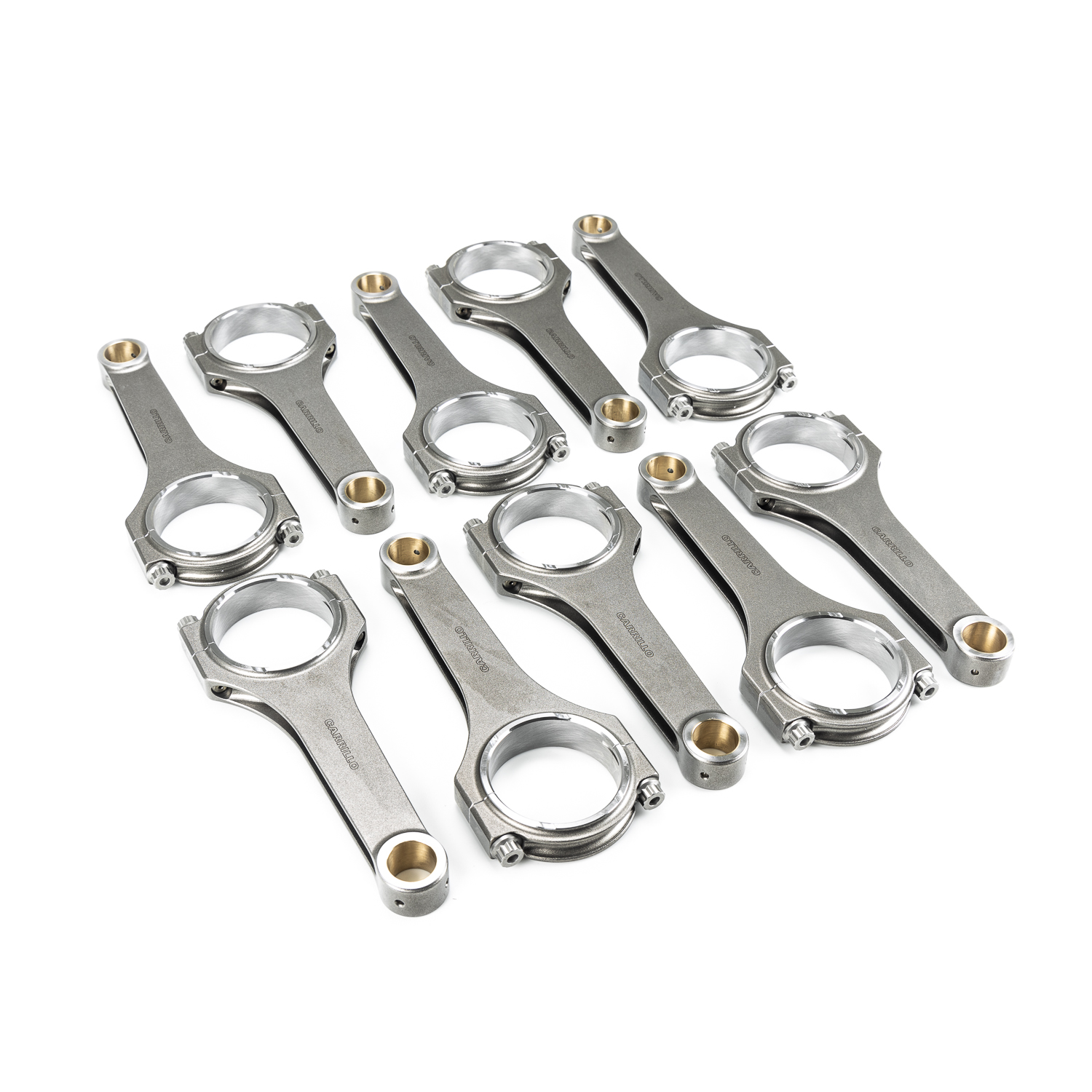

With a rod length of 154mm, a 20mm pin bore, and secured by 8mm CARR proprietary rod bolts, this kit delivers the precision fitment and extreme strength demanded by high-performance and racing builds.

Carrillo's Pro-H beam rods are built from a proprietary steel alloy — known as Carrilloy — a chrome, nickel, moly, vanadium formulation that meets all VAR (vacuum arc re-melt) ASTM standards. Every heat is independently validated by both the material supplier and a third-party metallurgist to confirm physical and chemical properties. The heat treatment process is a mar-aged operation yielding a UTS of 195,000 psi with a yield strength of 182,000 psi, while preserving critical low notch-sensitivity and ductility.

Key Features:

  • Rod Beam Style: Pro-H Beam forged construction
  • Rod Length: 154mm center-to-center
  • Pin Bore Diameter: 20mm
  • Rod Bolt: 8mm CARR proprietary fastener
  • Material: Carrilloy — chrome/nickel/moly/vanadium VAR-spec alloy
  • Tensile Strength (UTS): 195,000 psi
  • Yield Strength: 182,000 psi
  • Manufactured from oversized forgings for proper grain flow and elimination of surface inclusions
  • Each rod is magnafluxed a minimum of twice during production
  • Rockwell hardness tested per rod to validate heat treat integrity
  • Final shotpeen operation for enhanced fatigue resistance
  • All CNC machining performed with in-process probing for dimensional validation
  • CARR bolts feature a patented thread design and are destructively sample-tested for UTS and fatigue

Carrillo connecting rods are manufactured in Irvine, California using state-of-the-art 5-axis CNC machining centers, holding tolerances that routinely eliminate the need for additional balancing or clearance adjustment.
