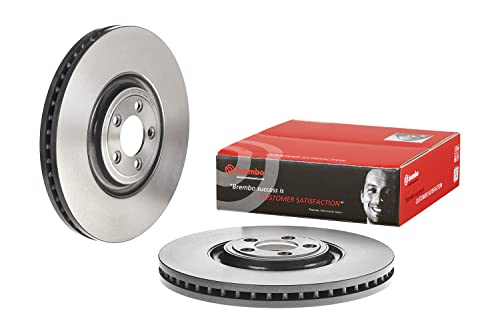

Brembo 09.D433.11 UV Coated Pillar Vented Front Brake Rotor 380mm

The Brembo 09.D433.11 is a premium UV coated front disc brake rotor engineered with advanced Pillar Venting Technology (PVT) for superior performance and durability. This 380mm diameter rotor is manufactured from high-carbon cast iron and designed as a direct OEM replacement that meets or exceeds original equipment specifications.

Advanced Pillar Venting Technology:

• Patented pillar-shaped venting design increases air circulation and cooling efficiency
• Provides up to 40% greater resistance to thermal cracking compared to conventional vane systems
• Enhanced heat dissipation minimizes brake fade during demanding driving conditions

UV Coating Protection:

• Environmentally friendly, solvent-free UV coating protects the entire rotor surface including braking plates
• Superior corrosion resistance extends rotor life and maintains clean appearance
• Water-based coating process uses no chemical solvents and requires minimal energy

Premium Construction:

• High-carbon cast iron construction minimizes noise and vibration
• Precision balanced with tight manufacturing tolerances for smooth braking performance
• Intelligent marking shows part number and minimum thickness specification
• 36mm rotor thickness with 48mm height and 71mm centering diameter
• 5-bolt configuration for secure mounting

What's Included:

• One (1) front brake rotor
• Complete fixing screw kit with all necessary hardware for installation

This rotor replaces OEM part numbers T2R5940 and C2P12622. For optimal braking performance, Brembo recommends replacing rotors and brake pads together and pairing with Brembo NAO/Ceramic or Low-Met brake pad formulations.
