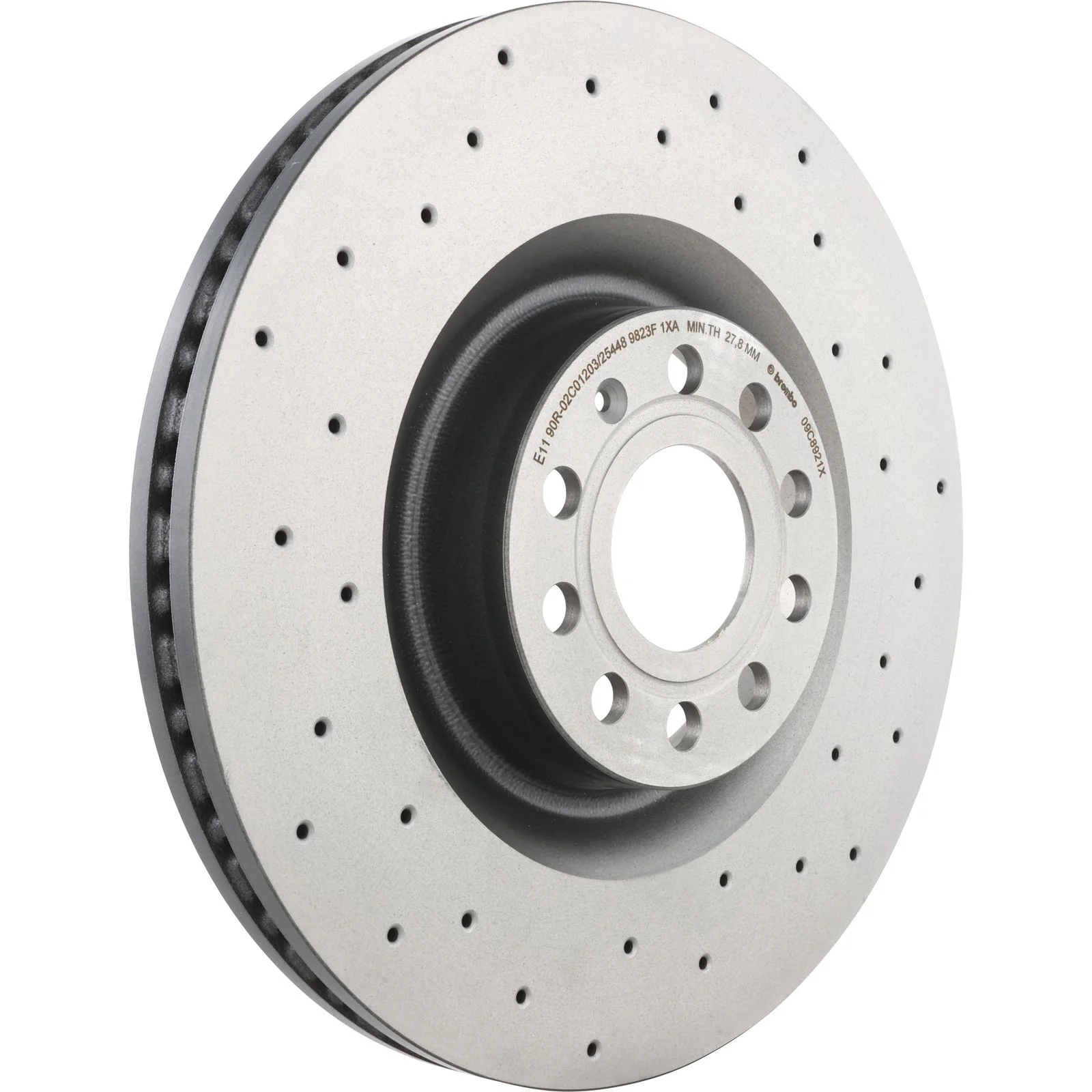

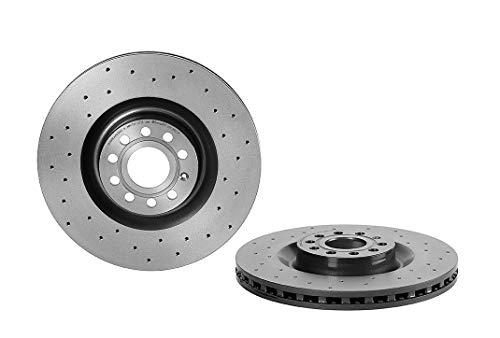

The Brembo 09.C892.1X Xtra brake rotor delivers premium stopping power with advanced engineering designed for performance enthusiasts and demanding driving conditions. This cross-drilled, vented front brake rotor combines the proven reliability of Brembo's OEM-quality construction with enhanced cooling capabilities and distinctive styling.
Advanced Pillar Venting Technology:
Featuring Brembo's exclusive Pillar Venting Technology (PVT), this rotor uses precision-engineered pillars instead of conventional vanes in the ventilation chamber. This innovative design increases airflow through the rotor by up to 40%, providing significantly greater resistance to thermal cracking and ensuring consistent performance even under extreme braking conditions.
Cross-Drilled Performance Design:
The strategic drilling pattern on the braking surface serves multiple purposes: improving heat dissipation, generating greater fade resistance, and enhancing initial bite during braking. The cross-drilled design also produces a scraping effect that continuously cleans brake pad surfaces, minimizing the buildup of ferrous deposits and maintaining optimal braking performance throughout the rotor's service life.
Premium UV Coating Protection:
Brembo's signature environmentally-friendly UV coating protects the entire rotor surface, including internal ventilation chambers and braking plate surfaces, against corrosion. This solvent-free coating ensures lasting performance and maintains a clean, refined appearance even after extended use, while meeting or exceeding OE specifications.
High-Carbon Cast Iron Construction:
Manufactured from premium high-carbon cast iron formulations optimized for strength, heat dissipation, and vibration control. This advanced metallurgy enhances thermal stability and reduces the risk of distortion, warping, or cracking under extreme conditions while minimizing noise and vibration for enhanced driving comfort.
Precision Engineering:
- Rotor diameter: 345mm (13.58 inches)
- Nominal thickness: 30mm (1.181 inches)
- Minimum thickness: 27mm
- Centering diameter: 65mm
- Bolt pattern: 5x112mm
- Vented and cross-drilled construction
- Front axle application
Quality Assurance:
Each rotor undergoes strict electronic testing and precision balancing with tight manufacturing tolerances to minimize runout and vibration. Intelligent marking clearly displays the part number and minimum thickness specification. The rotor includes a complete fixing screw kit with all necessary hardware for straightforward installation. ECE R-90 certified and backed by rigorous quality control, this rotor delivers the craftsmanship and reliability expected from the global leader in braking systems.
What's Included:
- One (1) cross-drilled, UV-coated brake rotor
- Complete fixing screw installation kit
For optimal braking performance and longevity, rotors and brake pads should be replaced together. This rotor pairs perfectly with Brembo NAO/Ceramic or Low-Metallurgical brake pad formulations. Sold individually; order two rotors for complete front axle replacement. Replaces OE part numbers 1K0615301M, 1K0615301AB, and 1K0615301AR.
