Wilwood 260-16521-BK Compact Tandem Brake Master Cylinder 15/16" Bore C2 Corvette

Manufacturer

Part Number

260-16521-BK
Sale Price

$389.31

In Stock (5)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Wilwood 260-16521-BK Compact Tandem Master Cylinder delivers high-performance braking in a lightweight package specifically designed for Corvette C2 manual brake applications. Featuring a 15/16" bore diameter and a durable black e-coat finish, this master cylinder is engineered to provide optimal fluid volume and precise brake modulation for upgraded braking systems.

Key Features:

  • Machined from high-pressure die-cast aluminum for exceptional strength and weight reduction
  • Weighs only 3.25 lbs—over 50% lighter than cast-iron factory tandem units
  • Full 1.10" stroke provides adequate fluid volume for high-performance multi-piston calipers

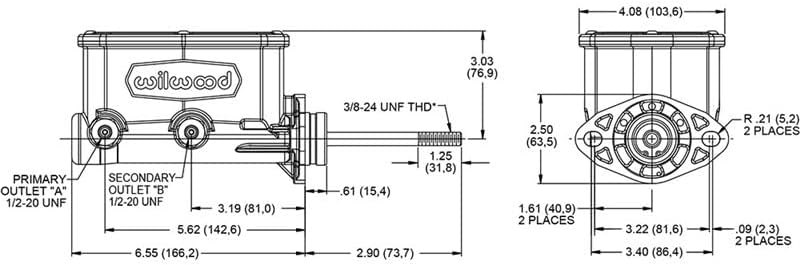

  • Dual fluid outputs (1/2"-20 UNF) positioned on both sides of the bore for flexible plumbing options
  • Includes plugs and fittings to accommodate 3/8"-24, 1/2"-20, and 9/16"-18 IF brake lines
  • Slotted mount flanges with 3.22" to 3.40" hole spacing bolt directly to factory Corvette firewall studs
  • Compatible with most domestic cars and trucks from the same era
  • Includes specific length 3/8-24 diameter pushrod for manual brake applications on Corvette C2

This master cylinder is ideal for Wilwood big brake kit installations, retrofits to tandem circuit systems on 1963-64 drum brake Corvettes, and provides tuning flexibility for softer pedal feel with reduced effort on factory non-power disc brake equipped 1965-67 models. Optional residual valves for drum brake applications and adjustable proportioning valves are available separately to fine-tune brake bias.

Note: Due to space constraints, the optional proportioning valve mounting kit (P/N 260-14248) is not compatible with these C2 Corvette tandem master cylinders.
